DAL3W3P700H30LF datasheet, PDF

Datasheet> All Categories > DAL3W3P700H30LF

DAL3W3P700H30LF: DescriptionD-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 3W3 Pin Right Angle Solder 30A, US Standard, 200 Cycles, Front: Threaded Insert M3, Back: Harpoons for 2.4mm PCB Thickness.; File Size367KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

DAL3W3P700H30LF Overview

D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 3W3 Pin Right Angle Solder 30A, US Standard, 200 Cycles, Front: Threaded Insert M3, Back: Harpoons for 2.4mm PCB Thickness.

DAL3W3P700H30LF Parametric

Parameter Name	Attribute value
Objectid	1670567169
package instruction	LEAD FREE
Contacts	3W3
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.5
body width	0.494 inch
Connector type	D SUBMINIATURE CONNECTOR
Contact arrangement	S0P3
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
Contact resistance	7.3 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	YES
Installation option 1	M3
Installation option 2	THREADED INSERT
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
Shell surface	COPPER NICKEL TIN
Shell material	STEEL
Housing size	2/A
Terminal length	0.142 inch
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0

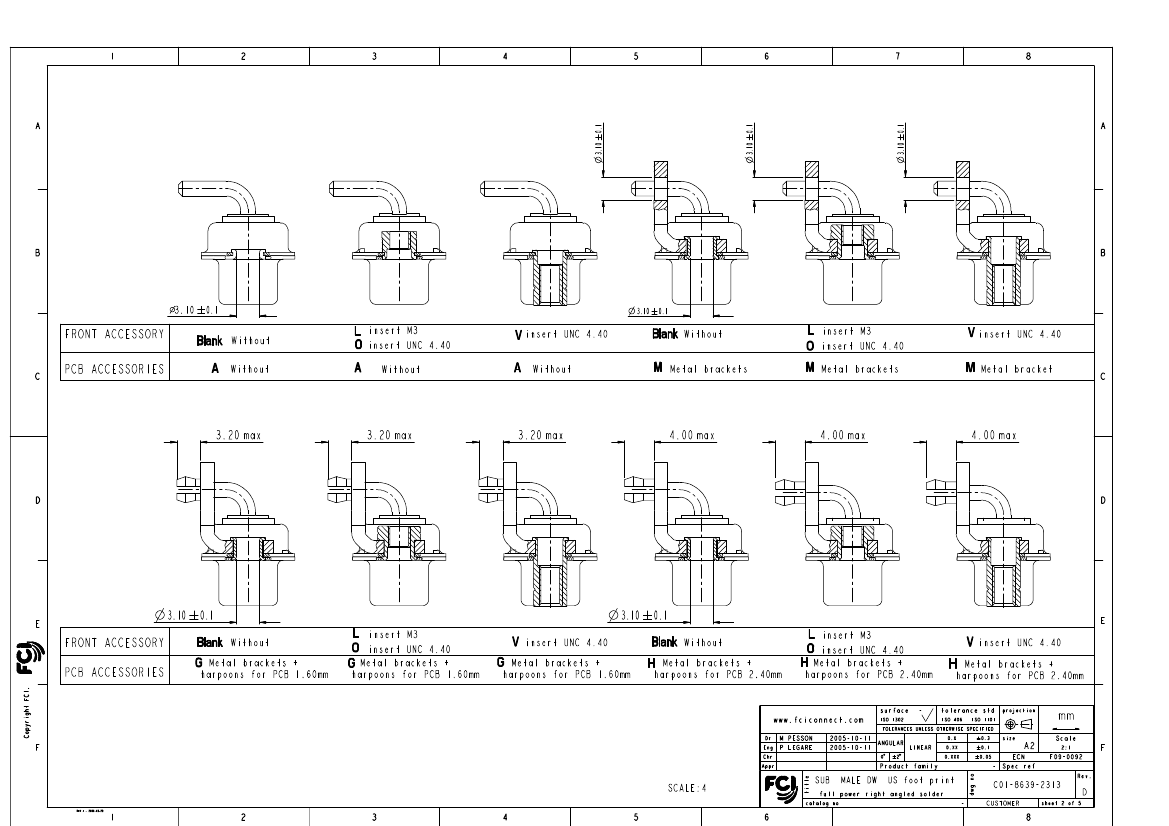

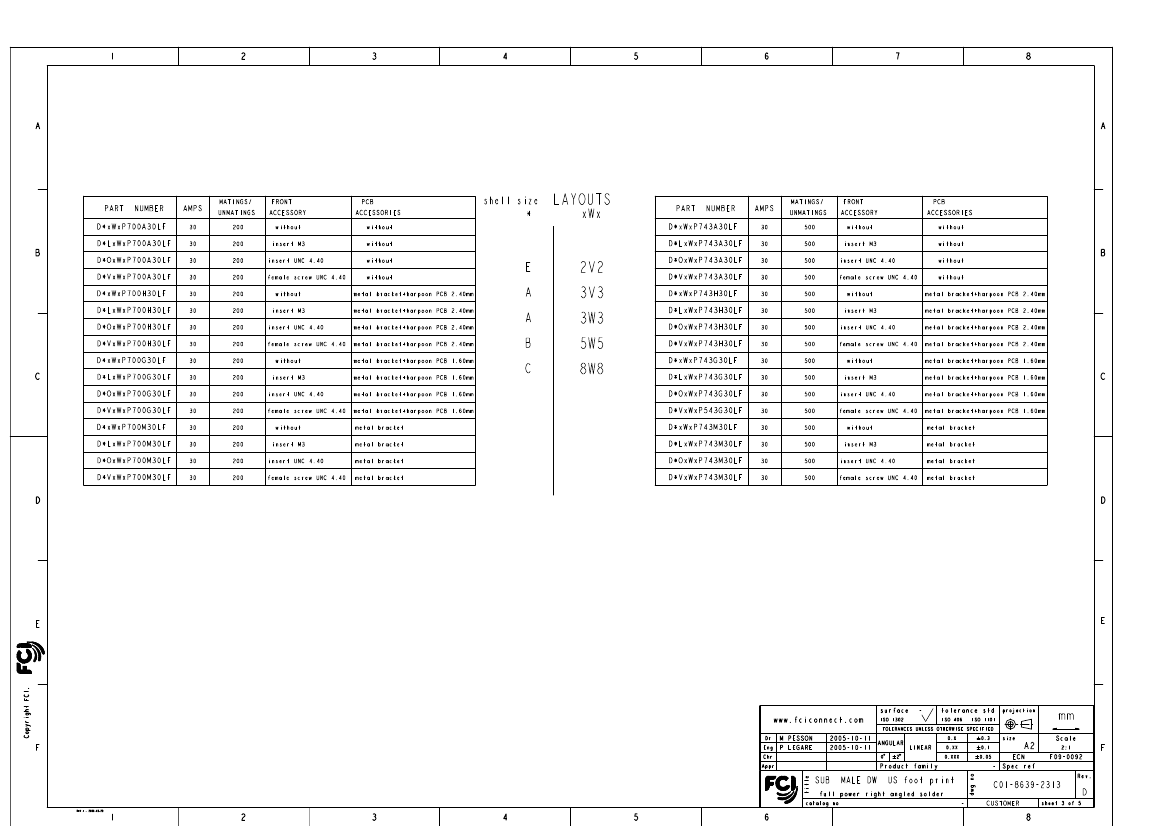

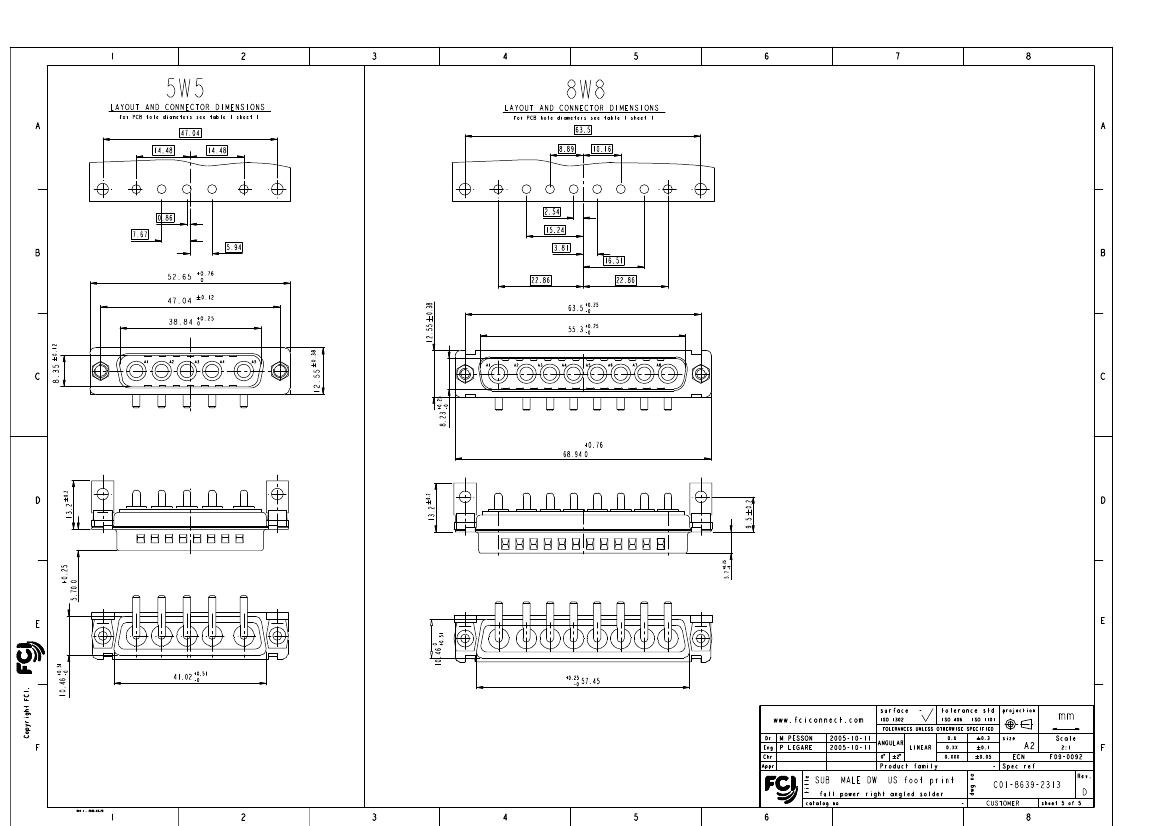

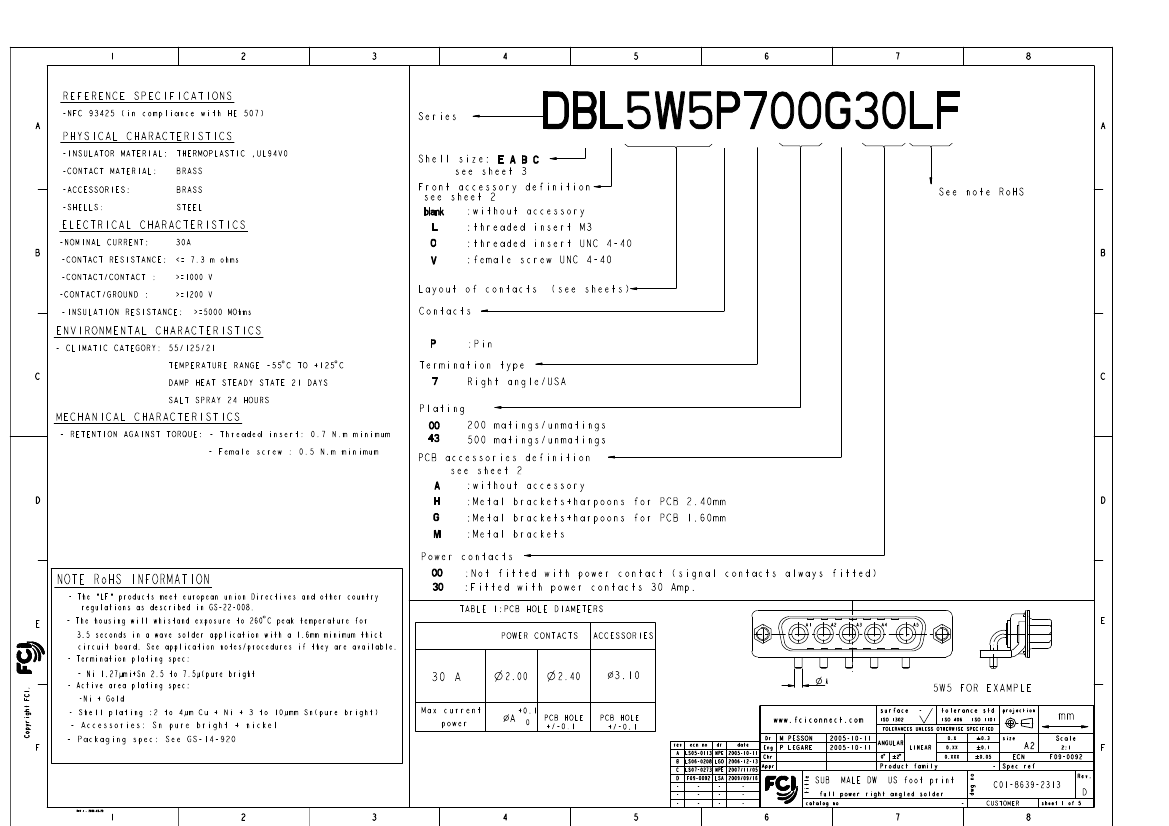

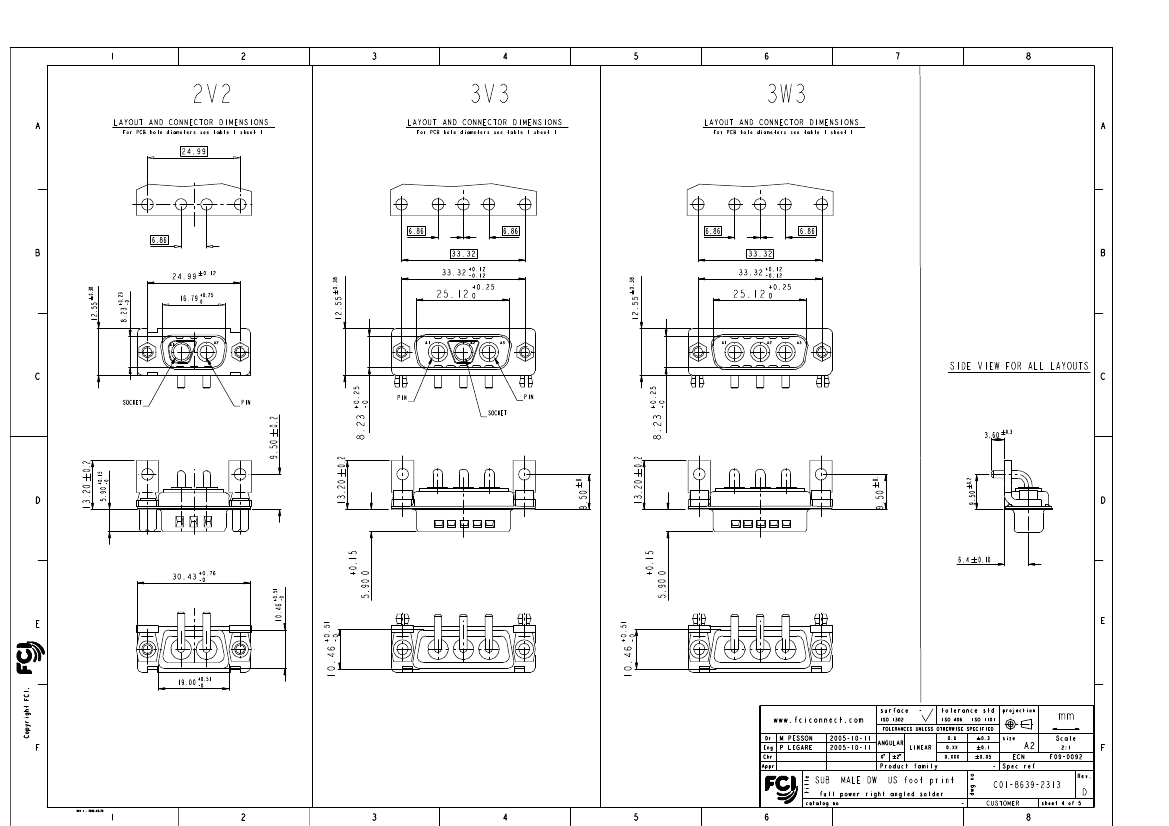

Preview

Download Datasheet

View All

PDM: Rev:D

STATUS:

Released

Printed: Oct 01, 2010
