Bulkhead 10-32 Female to 10-32 Female Adapter
TECHNICAL DATA SHEET
Bulkhead 10-32 Female to 10-32 Female Adapter
Configuration
Connector 1
Impedance 1
Connector Specification 1
Connector 2
Impedance 2
Connector Specification 2
Adapter Design
Body Style
Mount Method
10-32 Female
50 Ohms
MIL-C-39012
10-32 Female
50 Ohms
MIL-C-39012
Standard
Straight
Bulkhead
PE9757
Mechanical Specifications
Temperature
Operating Range,deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
0.6 [15.24]
0.438 [11.13]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Dielectric Type
10-32 Female
Gold
MIL-G-45204
Brass, Nickel
Teflon
10-32 Female
Gold
MIL-G-45204
Brass, Nickel
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes

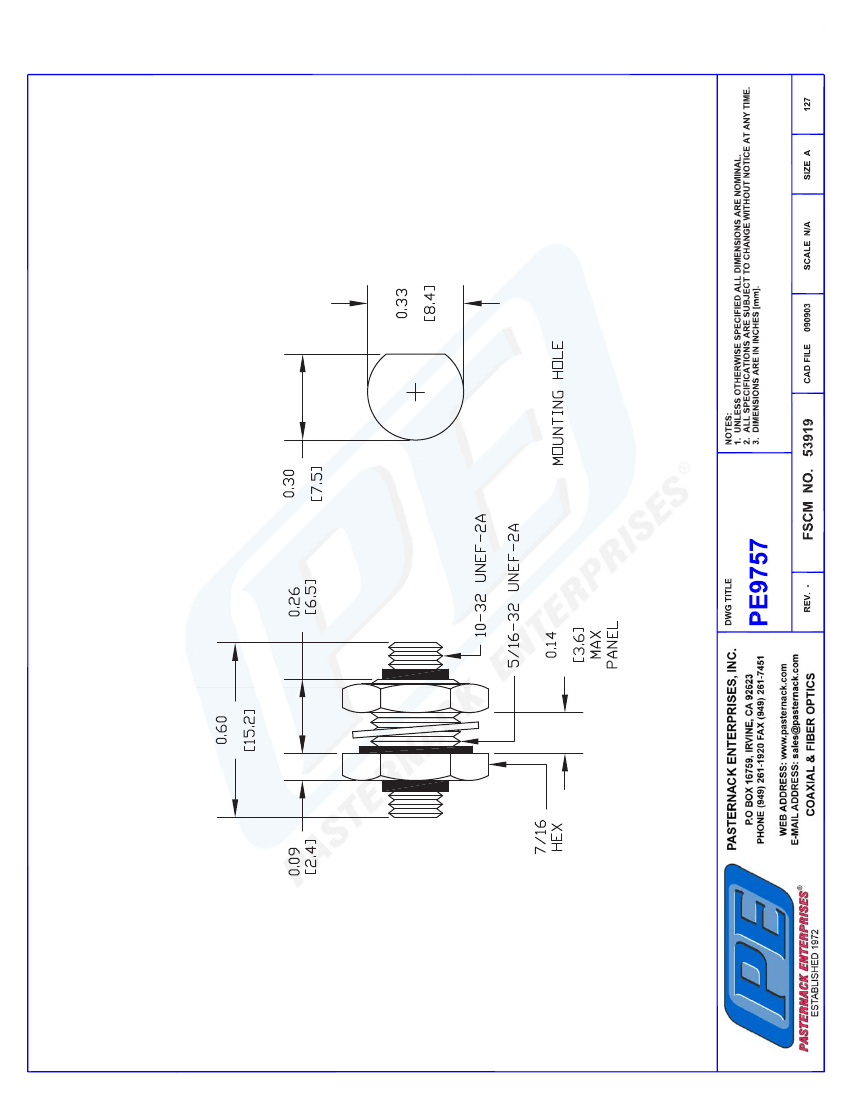

Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/10-32-female-10-32-female-straight-adapter-pe9757-p.aspx
Bulkhead 10-32 Female to 10-32 Female Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
PE9757 REV
1
