PE9758 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PE9758

PE9758: DescriptionBNC Male to BNC Male Right Angle Adapter; CategoryThe connector The connector; File Size236KB，2 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/

Download Datasheet Parametric View All

PE9758 Overview

BNC Male to BNC Male Right Angle Adapter

PE9758 Parametric

Parameter Name	Attribute value
Maker	Pasternack Enterprises
Reach Compliance Code	unknow
ECCN code	EAR99
Connector type	RF CONNECTOR ADAPTER
Manufacturer's serial number	PE9758

Preview

Download Datasheet

View All

BNC Male to BNC Male Right Angle Adapter

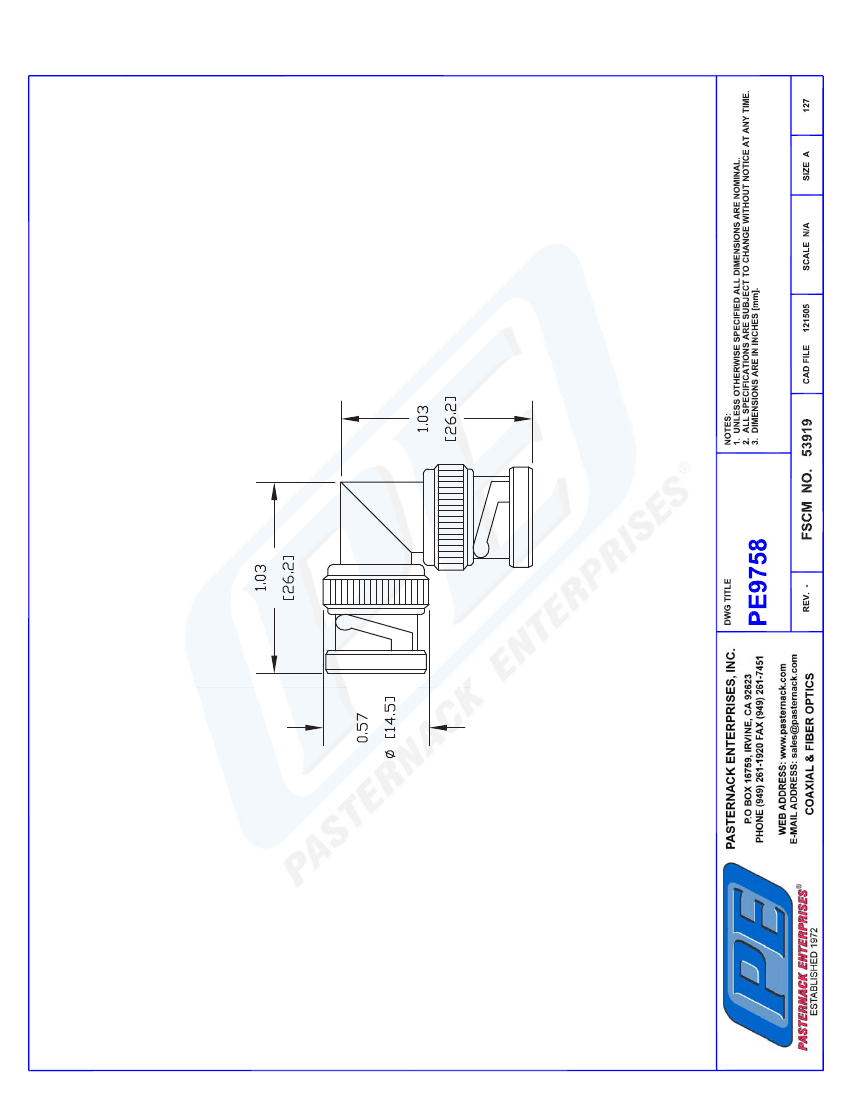

TECHNICAL DATA SHEET

BNC Male to BNC Male Right Angle Adapter

Configuration

Connector 1

Impedance 1

Connector 2

Impedance 2

Adapter Design

Body Style

BNC Male

50 Ohms

BNC Male

50 Ohms

Standard

Right Angle

PE9758

Mechanical Specifications

Size

Length, in [mm]

Width/Dia., in [mm]

Height, in [mm]

1.03 [26.16]

0.57 [14.48]

1.03 [26.16]

Connector 1

Type

Inner Conductor Material and Plating

Coupling Nut Material and Plating

Body Material and Plating

Dielectric Type

Connector 2

Type

Inner Conductor Material and Plating

Coupling Nut Material and Plating

Body Material and Plating

Dielectric Type

BNC Male

Gold

Brass, Nickel

PTFE

BNC Male

Gold

Brass, Nickel

PTFE

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

URL:

http://www.pasternack.com/bnc-male-bnc-male-right-angle-adapter-pe9758-p.aspx

BNC Male to BNC Male Right Angle Adapter from Pasternack Enterprises has same day shipment for domestic and International

orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the

industry.

PE9758 REV
