PBRCFREQ2GR70X000: DescriptionCeramic Resonator, CERAMIC RESONATOR, 8.01 MHz - 20 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-2; CategoryPassive components Crystal/resonator; File Size132KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric Compare View All

PBRCFREQ2GR70X000 Overview

Ceramic Resonator, CERAMIC RESONATOR, 8.01 MHz - 20 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-2

PBRCFREQ2GR70X000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kyocera
Reach Compliance Code	unknown
Other features	TAPE AND REEL
Crystal/Resonator Type	CERAMIC RESONATOR
frequency stability	0.1%
frequency tolerance	7000 ppm
Installation features	SURFACE MOUNT
Maximum operating frequency	20 MHz
Minimum operating frequency	8.01 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L7.4XB3.4XH2.0 (mm)/L0.291XB0.134XH0.079 (inch)
surface mount	YES
Terminal surface	Gold Flash (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

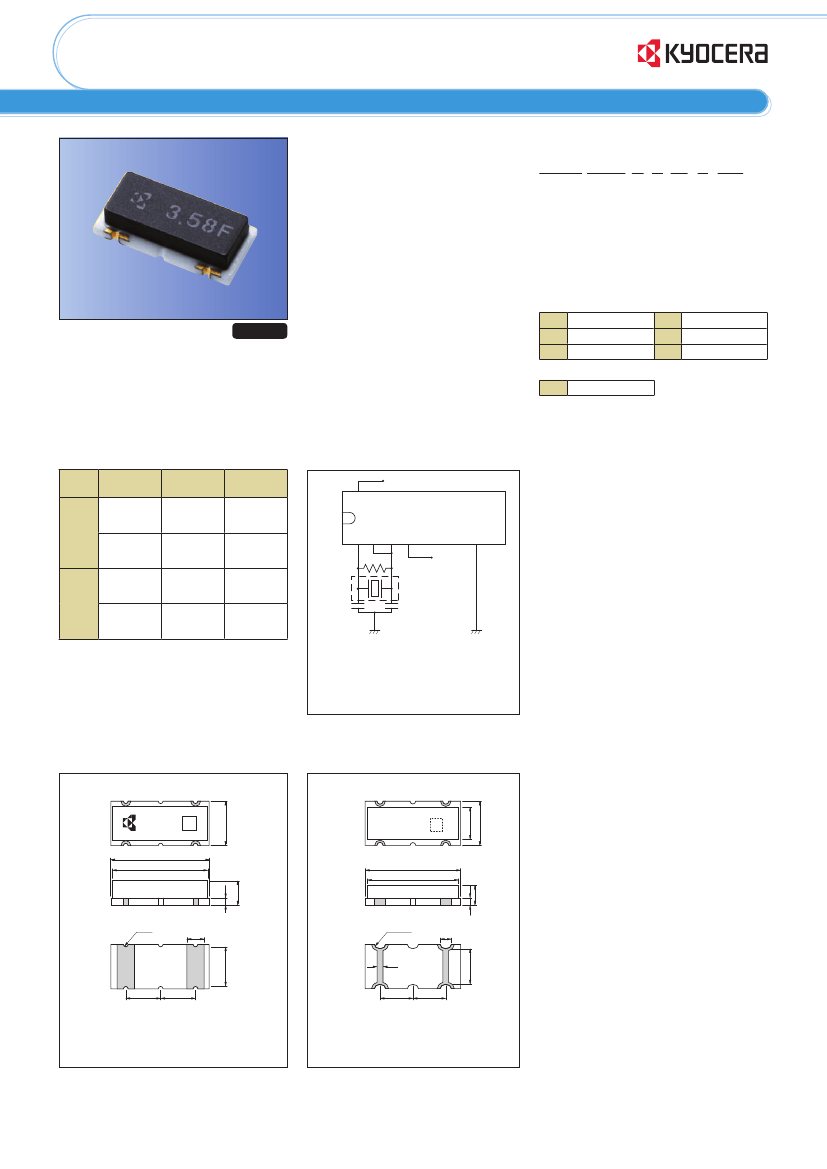

MHz Band Ceramic Chip Resonators (SMD)

PBRC-G/ PBRC-L Series

for Consumer Applications

Features

• High reliability, high temperature

withstanding ceramic case

• Rectangular shape allows easy pick and

placement

• Small & low proﬁle

• Reﬂow solderable

• Excellent solderability

(Nickel barrier+Au ﬂash terminations)

How to Order

PBRC 15.00 G R 50 X 000

①

②

③ ④ ⑤ ⑥ ⑦

①

Series

②

Frequency (MHz)

③

Type (G, L)

④

Packing _Bulk

(Null)

R

Reel (G: 2k/ reel, L: 3k/ reel)

⑤

Frequency Tolerance at 25°C

RoHS Compliant

10

30

50

X

±0.1%

±0.3%

±0.5%

−40°C

to 85°C

20

40

70

±0.2%

±0.4%

±0.7%

⑥

Operating Temperature

⑦

Unique Code

Speciﬁcations

Series

Range (MHz) Tolerance (25°C)

2.00 to 8.00

PBRC-G

8.01 to 20.0

4.00 to 8.00

PBRC-L

8.01 to 20.0

Frequency

Temperature

Stability

Test Circuit

½

½½

½½½½½

½½

±0.5%

(op.

±0.3%)

(−40 to 85°C)

±0.7%

±0.1%

(op.

±0.5%)

(−40 to 85°C)

±0.5%

(op.

±0.3%)

(−40 to 85°C)

±0.7%

±0.1%

(op.

±0.5%)

(−40 to 85°C)

½

½½½½½½½½½

½½

½½½½½½½½½

½

½½½

½½½½½½½½½

½

∗

Aging for 10 years is within

±0.3%

from the initial frequency at 25°C.

½½½½½½½½½½½

½½½½

½½

½½½

½½½½

½

½½

½

½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½

½½½½

½

½½

½

½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½

½½½½½½½½½½½

½½½½

½½

½½½

½½½½

½

½½

½

½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½

½½½½

½

½½

½

½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½

Note)

• Values of C

1

, C

2

and R

f

are evaluated with IC, MC14069UB,

and evaluation of circuit is necessary when using other IC’s.

• IC circuit matching may be referenced with

1) IC data books

2) List of Recommended circuits in Kyocera website.

• Please contact IC manufacturer or Kyocera when there are

difficulties in finding recommended circuits.

Dimensions

½½½½½½½½½½½

(Unit: mm)

½½½½½½½½½½½

(Unit: mm)

½½½½

½½½

½½½½½½½½

½½½

½½½½½½½

½

½½½

½

½½½

½½½½½

½

½½½

½½½½

½

½½½

½½½½½½½½½½½½½½½½½½

½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½

½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½

½½½½½½½½½½½½½½½½½½

½½½

PBRCFREQ2GR70X000 Related Products

	PBRCFREQ2GR70X000	PBRCFREQ1GR50X000	PBRCFREQ1LR50X000	PBRCFREQ2LR70X000	PBRCFREQ2G70X000	PBRCFREQ2L70X000	PBRCFREQ1G50X000
Description	Ceramic Resonator, CERAMIC RESONATOR, 8.01 MHz - 20 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-2	Ceramic Resonator, CERAMIC RESONATOR, 2 MHz - 8 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-2	Ceramic Resonator, 4MHz Min, 8MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-2	Ceramic Resonator, CERAMIC RESONATOR, 8.01 MHz - 20 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-2	Ceramic Resonator, CERAMIC RESONATOR, 8.01 MHz - 20 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-2	Ceramic Resonator, 8.01MHz Min, 20MHz Max, ROHS COMPLIANT, CERAMIC PACKAGE-2	Ceramic Resonator, CERAMIC RESONATOR, 2 MHz - 8 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-2
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	compliant	unknown	unknown	compliant	unknow
Other features	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	BULK	BULK	BULK
Crystal/Resonator Type	CERAMIC RESONATOR	CERAMIC RESONATOR	CERAMIC RESONATOR	CERAMIC RESONATOR	CERAMIC RESONATOR	CERAMIC RESONATOR	CERAMIC RESONATOR
frequency stability	0.1%	0.5%	0.5%	0.1%	0.1%	0.1%	0.5%
frequency tolerance	7000 ppm	5000 ppm	5000 ppm	7000 ppm	7000 ppm	7000 ppm	5000 ppm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	20 MHz	8 MHz	8 MHz	20 MHz	20 MHz	20 MHz	8 MHz
Minimum operating frequency	8.01 MHz	2 MHz	4 MHz	8.01 MHz	8.01 MHz	8.01 MHz	2 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
physical size	L7.4XB3.4XH2.0 (mm)/L0.291XB0.134XH0.079 (inch)	L7.4XB3.4XH2.0 (mm)/L0.291XB0.134XH0.079 (inch)	L4.5XB2.0XH1.2 (mm)/L0.177XB0.079XH0.047 (inch)	L4.5XB2.0XH1.2 (mm)/L0.177XB0.079XH0.047 (inch)	L7.4XB3.4XH2.0 (mm)/L0.291XB0.134XH0.079 (inch)	L4.5XB2.0XH1.2 (mm)/L0.177XB0.079XH0.047 (inch)	L7.4XB3.4XH2.0 (mm)/L0.291XB0.134XH0.079 (inch)
surface mount	YES	YES	YES	YES	YES	YES	YES
Is it lead-free?	Lead free	Lead free	-	Lead free	Lead free	-	Lead free
Maker	Kyocera	-	-	Kyocera	Kyocera	Kyocera	Kyocera
Terminal surface	Gold Flash (Au) - with Nickel (Ni) barrier	Gold Flash (Au) - with Nickel (Ni) barrier	-	-	Gold Flash (Au) - with Nickel (Ni) barrier	-	Gold Flash (Au) - with Nickel (Ni) barrie
Manufacturer's serial number	-	-	PBRC	PBRC	PBRC	PBRC	PBRC
