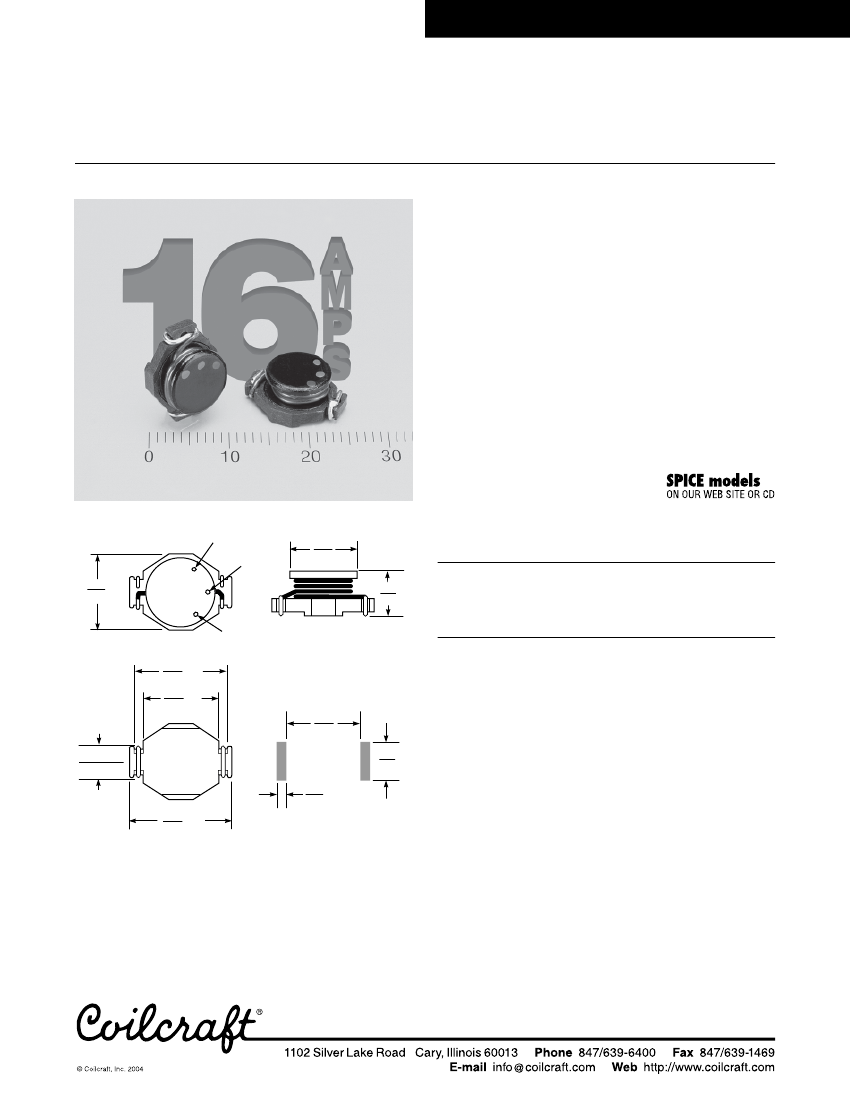

SMT Power Inductors - DO3316HC Series
The DO3316HC series has been specially designed for
high current, low voltage DC-DC converter applications.
This simple, rugged design provides current ratings nor-
mally available only in much larger packages — up to
17 Arms for a 0.12 µH part! With its tinned self-leaded
construction, the DO3316HC achieves very low DCR
values and excellent solderability. In addition to the
standard parts shown, custom values are also available.
The DO3316HC series includes features such as tape and
reel packaging and a flat top for pick-and-place handling
that are standard in all Coilcraft SMT power products.
Coilcraft
Designer’s Kit C126
contains three samples each
of the standard parts shown. To order, contact Coilcraft or
purchase the kit on-line at
http://order.coilcraft.com.
1st significant
digit
2nd
significant
digit
0.390
max
9,91
1
0.330
8,38
0.250
max
6,35
Multiplier
0.460
max
11,68
0.360
min
9.14
0.340
8,64
0.125 ±0.010
3,12 ±0,25
0.060
1,52
0.520
max
13,21
0.160
4,06
Part
L
number
1
(µH)
DO3316P-121HC
0.12
DO3316P-331HC
0.33
DO3316P-681HC
0.68
DO3316P-102HC
1.0
DO3316P-152HC
1.5
DO3316P-222HC
2.2
DO3316P-272HC
2.7
DO3316P-332HC
3.3
DO3316P-392HC
3.9
DO3316P-472HC
4.7
±20%
2
DCR
SRF
3
max
typ
(Ohms) (MHz)
0.0015 200
0.002
200
0.005
200
0.006
100
0.008
90
0.011
80
0.012
65
0.014
60
0.015
50
0.018
45
2
Isat
4
2
Irms
5
(A)
28
20
13
11
9.0
7.8
7.0
6.4
5.9
5.4
(A)
17
16
12
10
9.0
7.4
6.6
5.9
5.3
4.8
Recommended
Land Pattern
1. Part number on reel label may have a B suffix to indicate that the
reel is not machine ready.
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.
3. SRF measured using Agilent/HP 8753D network analyzer.
4. DC current at which the inductance drops 10% (typ) from its
value without current.
5. Average current for a 40°C rise above 25°C ambient.
6. Operating temperature range -40°C to +85°C.
7. Electrical specifications at 25°C.
See Qualification Standards section for environmental and test data.
Weight:
0.95 – 1.25 g
Tape and reel:
750/13″ reel 24 mm tape width
For packaging data see Tape and Reel Specifications section.
Specifications subject to change without notice.
Document 196-1
Revised 10/15/03
