DPX -S425
®
Intel
®

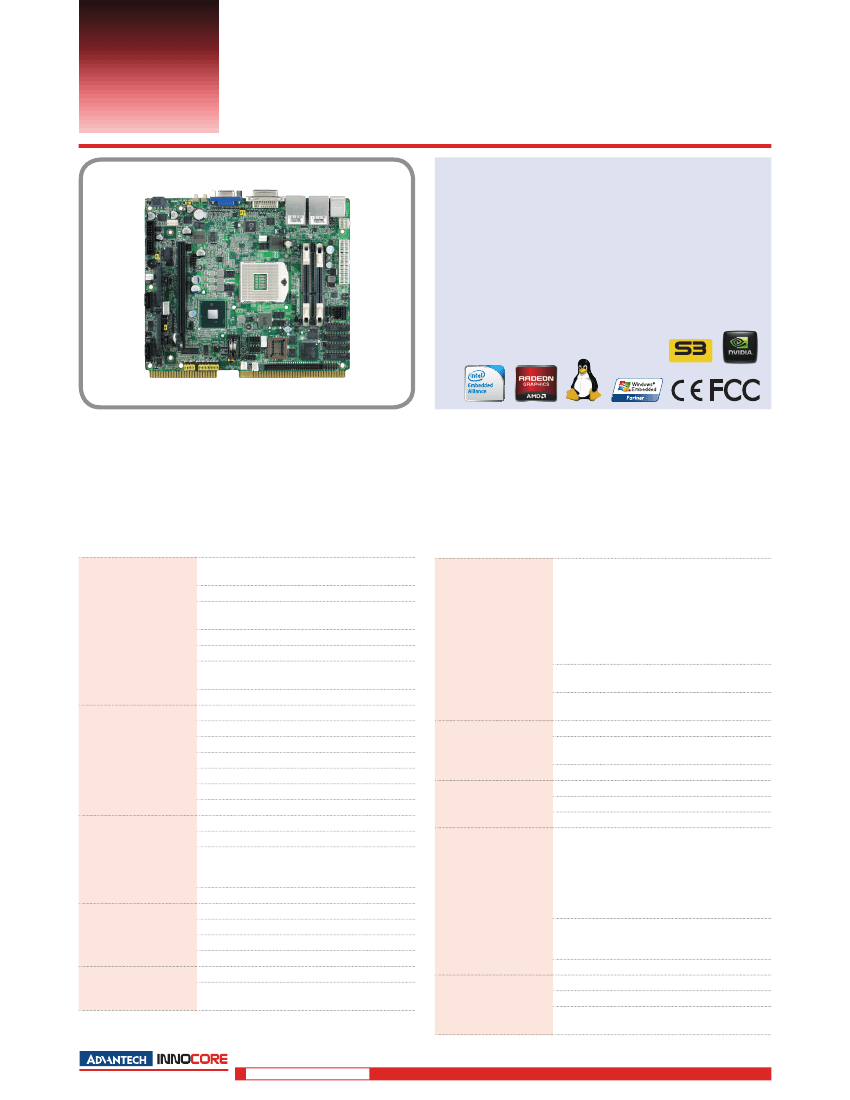

Core™ i5, Core i7 Gaming Platform
Features
Very high performance Intel
®
platform
Comprehensive Gaming features
High performance integrated or PCI-Express graphics
Low power consumption
Small format
GRAPHICS
Introduction
The DPX
®
-S425 is a ground breaking computer platform from Advantech-Innocore. The DPX
®
-S425 is the first gaming board to use the revolutionary
Intel
®
single chip architecture and Core™ i5 and Core™ i7 CPUs for the most demanding, compute-intensive environments. A full feature set of I/O,
COMs and security designed specifically for gaming devices is also included on the board. The board is backed by Innocore’s usual guaranteed long
production life and backward compatible both mechanically and in the software API with the DPX
®
-S410 series.
Feature Summary
Mobile Intel Core i5, i7 and Celeron
performance
Intel HM55 Embedded chipset
High performance chipset graphics core – Intel
GMA HD with up to 1GB shared video RAM.
Max. 8GB DDR3 SDRAM
2 x Gigabit Ethernet LAN
2 x Compact Flash, 2 x CFast™, 2 x SATA DOM
sockets Sound (on-board 3 channel amp)
4 MB SRAM, 1 MB ROM, EEPROM
5 x RS232
2 x CCTalk/RS232
2 x RS232/TTL
1 x RS232/485
12 x USB 2.0
GPIO
32 inputs and 32 outputs
Embedded Chipset Intel GMA HD
Dual independent monitor support (on-board)
Full speed PCI-Express X16 v2.0 slot to
support a range of PCI-Express graphics
cards; ATi
®
, Nvidia
®
, S3 Graphics
Dual, triple and quad independent monitor
TPM security device on board
iButton
®
option
Intrusion switch inputs
BIOS customisation
Edge-to-edge drivers and API/SDK
Range of Advantech-Innocore software
products for Gaming
Mobile Intel Core i5, i7 and Celeron
performance:
Up to 2.66GHz, 4MB of Intel
®
Smart Cache
Intel
®
Turbo Boost Technology
Intel
®
Hyper-Threading Technology (2 Cores, 4
threads)
Low power operation (CPU up to 38W
including GMA and DRAM controller)
Intel HM55 chipset. Embedded/long lifecycle
chipset and CPUs
High performance chipset graphics – Intel
GMA HD
2 x SO-DIMM socket, 8GB Max
800 MT/s (PC3-6400), and 1066 MT/s
(PC3-8500)
64bit OS and RAM in excess of 4GB
AMI PCI/PnP/ACPI BIOS
BIOS Flash can be write protected
Fast boot option. “No user menu” option
Integrated (Chipset)
Embedded GMA HD
DVMT (shared video RAM) up to 1GB
DirectX
®
10.0, Shader Model 4.0,
Open GL 2.1
Hardware acceleration for H.264,VC-1, and
MPEG-2 decode
PCI-Express x16 v2.0 slot
A range of PCI-Express graphics cards
from ATi, Nvidia, S3 Graphics
multiple displays with Hybrid
Primary:- VGA
Secondary:- Analog VGA or Digital DVI (DVI-I)
PCI-E graphics card installed. Dependent on
PCI-E adapter card:
System
CPU/Chipset
I/O
Memory
BIOS
Video
Video
Security
Software
Video Ports
www.advantech-innocore.com
Innovations in Gaming Computing
All product specifications are subject to change without notice
See overleaf for continued specification
Last updated : 11-Apr-2012

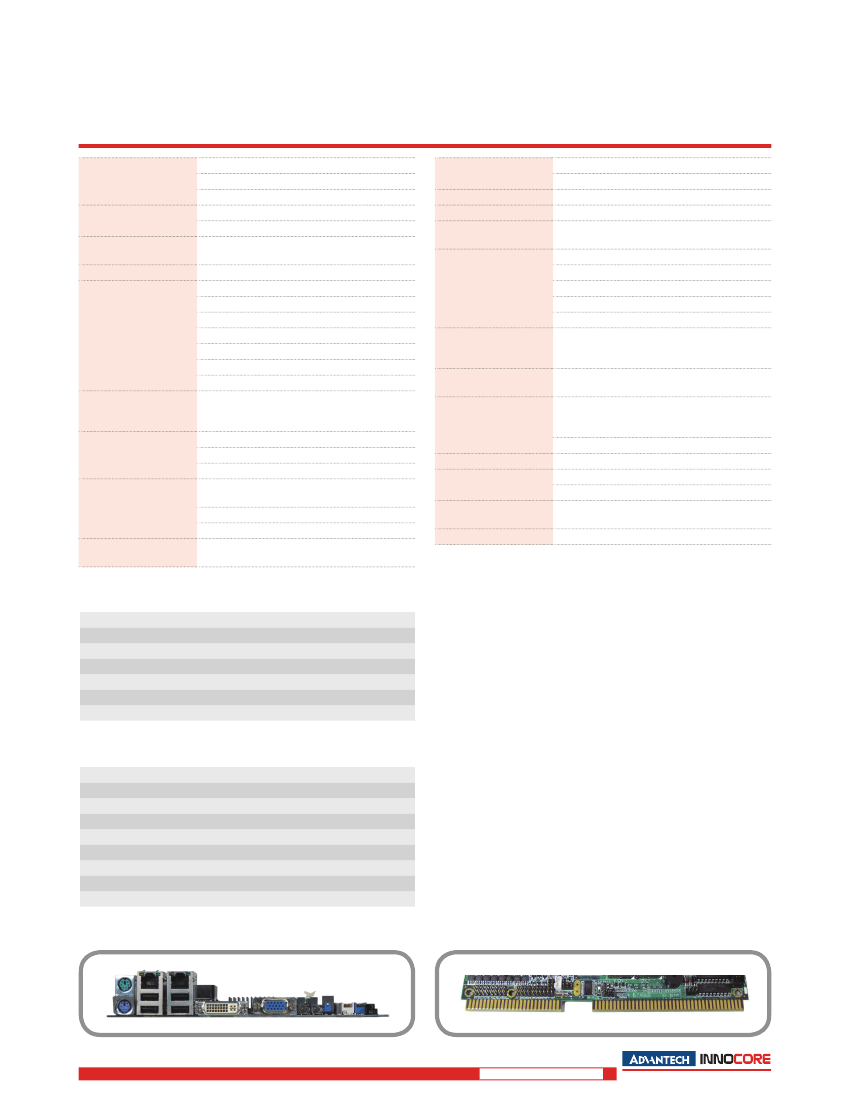

DPX
®
-S425
LAN 1, 2
SATA Controller
Compact Flash
CFast™
Gigabit Ethernet
Full duplex operation
Wake-On-LAN capability
2 x SATA 3Gbps ports
Power header for SATA DOM support
2 x CompactFlash Type I/II headers
(Flash/MicroDrive)
2x CFast connectors on underside
5 x RS232
2 x CCTalk/RS232
2 x RS232/TTL
1 x RS232/485
12 x USB 2.0
Keyboard/Mouse on-board
2 x I2C ports on board headers
Bi-Directional, programmable GPIO header
for iButton, special purpose device or security
module
32 ESD protected inputs
32 OC Outputs (500mA, 50V)
Meter Connect Sensing up to 6 meters
Onboard 13W+13W+13W class D audio
amp with FL + FR + LF speaker connectors
6 channel Line level outputs
Stereo line in, SPDIF (Digital) audio in/out
1MB EPROM/OTPROM PLCC32 socket
(PCI, Bootable)
SRAM On-Board
Security
Watchdog Timer
EEPROM
4096kB fast SRAM (2 banks) on PCI bus
Battery state software readable
TCPA/TPM 1.2 compliant security device
Programmable time-out of 1-1024 seconds
Serial EEPROM for storage of serial numbers,
data, security keys. 32kB (option for larger)
Six Intrusion detection input lines
Operates with and without system active
Logs date/time of last 48 events
Logs system resets/brownouts as events
EEPROM backup for 10 years retention
Measurement of CPU core temp. With thermal
trip. PWM fan for CPU. Monitoring up to 3
fans.
External sensor input for advanced warning of
AC power fail
1) Up to 240 Bytes of PCI-based I/O expansion
available through DirectPCI + interface on
board header.
2) PCI-Express x16 graphics card
ATX or AT mode, typical 45-65W
Operating Temperature: 0 – 50 °C
Storage Temperature: -20 – 85 °C
EMC: CE, FCC Class A
RoHS, WEEE
170 x 200mm (6.7 x 7.9”)
Intrusion Detection
Ports
System Health
Monitoring
Power Fail Detect
iButton/GPIO
Expansion
Power
Environment
Approvals
Dimensions
I/O
Sound
ROM
Optional Hardware
Full System chassis
Range of PCI-E graphics cards
I/O Connector breakout board
iButton Carrier
DPX-IRC Range Reel controllers
Audio Amplifier modules
Compact Flash, SATA DOM, SSD storage devices
OEM Customization and Product
Development
Advantech-Innocore specializes in the fields of PC-based hardware design and
software development. Our in-depth knowledge and global resources make us your
ideal partner.
Advantech-Innocore is part of the Advantech Co., Ltd. Group of Companies.
Specifications subject to change. E&OE.
Copyright © 2011 Advantech Co., Ltd.
All rights reserved. Advantech-Innocore, the Advantech-Innocore Logo, DPX,
ConnectBus are trademarks of Advantech Co., Ltd. in the UK, US and other
countries.
All other trademarks are acknowledged and respected.
Benefits
Best-in-class integrated and expandable graphics capabilities
Low Power
Single board solution
Edge connector for I/O
Small size – 170 x 200 mm (6.7 x 7.9”)
Long Life Cycle
Designed for the Gaming Industry
Meets GLI and other regulatory standards
Backward compatible with DPX-S410, 112
Front I/O
Rear I/O
www.advantech-innocore.com
Innovations in Gaming Computing
