N Female to TNC Female 4 Hole Flange Adapter
TECHNICAL DATA SHEET
N Female to TNC Female 4 Hole Flange Adapter
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Adapter Design
Body Style
Mount Method
N Female
50 Ohms
TNC Female
50 Ohms
Standard
Straight
4 Hole Flange
PE9552
Mechanical Specifications
Temperature
Operating Range,deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-65 to +165
1.5 [38.1]
1 [25.4]
1 [25.4]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Dielectric Type
N Female
Silver
QQ-S-365
Brass, Nickel
Teflon
TNC Female
Silver
QQ-S-365
Brass, Nickel
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/n-female-tnc-female-straight-adapter-pe9552-p.aspx
N Female to TNC Female 4 Hole Flange Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.

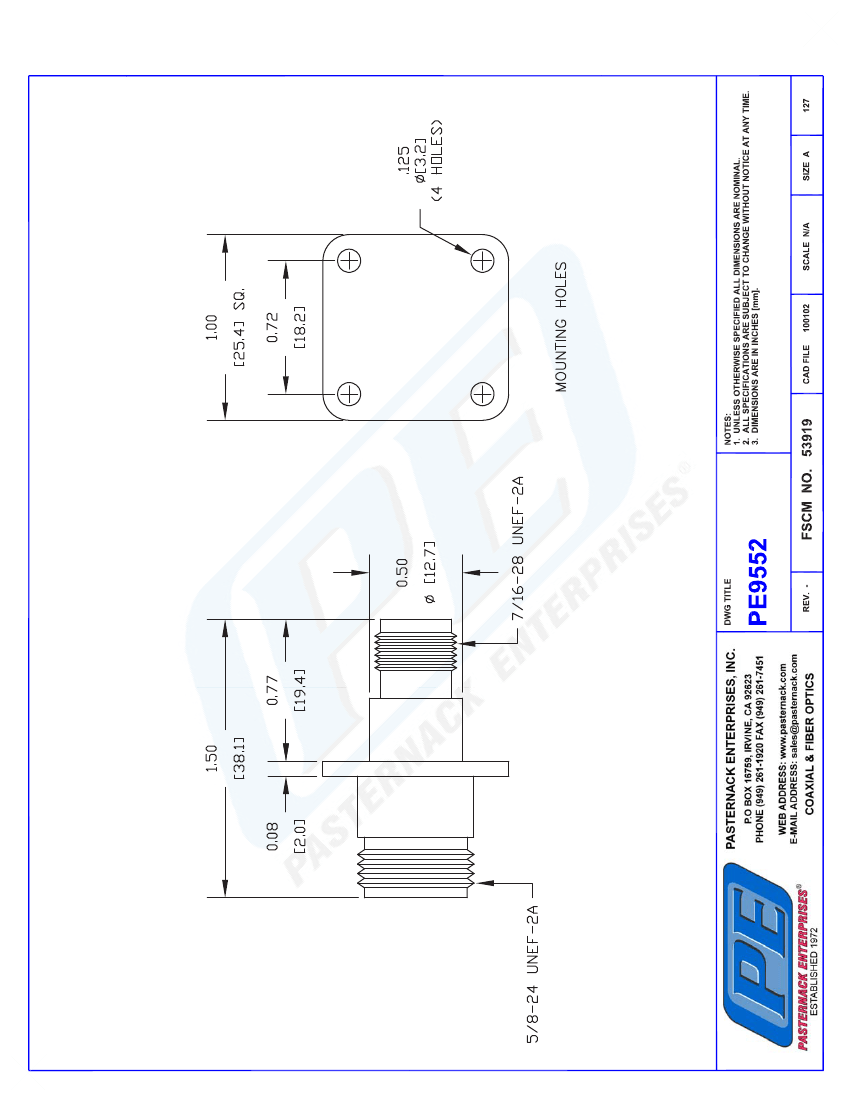

PE9552 REV
1
