F.LL.D3.075A.BN.R1 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> F.LL.D3.075A.BN.R1

F.LL.D3.075A.BN.R1: DescriptionThree Phase EMI Filter, 480V, 50/60HzHz; CategoryAnalog mixed-signal IC filter; File Size316KB，2 Pages; ManufacturerNissei Electric Co.,Ltd.

Download Datasheet Parametric Compare View All

F.LL.D3.075A.BN.R1 Overview

Three Phase EMI Filter, 480V, 50/60HzHz

F.LL.D3.075A.BN.R1 Parametric

Parameter Name	Attribute value
Maker	Nissei Electric Co.,Ltd.
Reach Compliance Code	unknown
Certification	UL; CSA; EN
filter type	THREE PHASE EMI FILTER
high	135 mm
high potential	3000 V
Maximum leakage current	3 mA
length	270 mm
Manufacturer's serial number	F.LL.D3
Installation type	PANEL MOUNT
working frequency	50/60Hz Hz
Maximum operating temperature	100 °C
Minimum operating temperature	-25 °C
physical size	L270XB80XH135 (mm)
Rated current	75 A
Rated voltage	480 V

Preview

Download Datasheet

View All

Motor Drive Filters

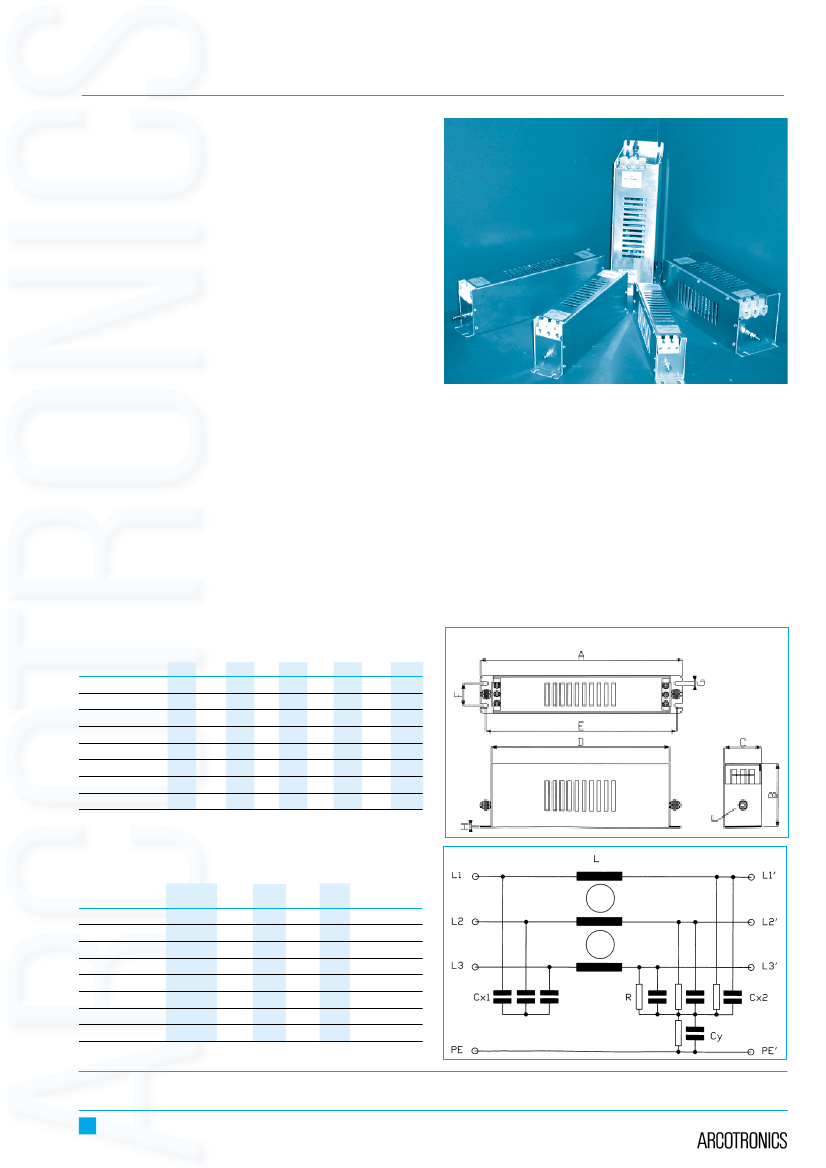

Three phase, compact, bookend design

This wide range of compact, lightweight, three phase filters offer a

very economical design solution for the suppression of inverters

and powerdrive applications.

A high level of performance from 150Khz to 30Mhz is achieved.

The filters operate very effectively on long motor cable runs.

F.LL.D3

series

type

•

Current ratings from 7A to 130A

•

High attenuation performance

•

Space saving design

•

Excellent saturation resistance

•

Lightweight construction

•

Screw terminals for quick and easy installation

Mechanical Specifications

Manufacture:

aluminium enclosure

Connections:

strip terminal block -

6mm solid wire, 4mm flex wire - 7A, 16A

16mm solid wire, 10mm flex wire - 30A, 42A

25mm solid wire, 16mm flex wire - 55A, 75A

safety terminal block -

50mm solid wire + flex wire - 100A, 130A

Electrical Specifications

Rated voltage (V

480 Vac 50/60 Hz

Rated current (I

referred to 50°C (40°C)

Fault condition: 103mA

(only one phase remaining)

Voltage test (2

.):

line to ground 3000 Vdc

line to line 1700 Vdc

Climatic category:

HMF (25/100/21):

Temperature range: -25°C to +100°C

Leakage current (I

Normal condition: < 3mA

Dimensions

Code

F.LL.D3.007A.BN.R1

F.LL.D3.016A.BN.R1

F.LL.D3.030A.BN.R1

F.LL.D3.042A.BN.R1

F.LL.D3.055A.BN.R1

F.LL.D3.075A.BN.R1

F.LL.D3.100A.BN.R1

F.LL.D3.130A.BN.R1

190

250

270

310

250

270

135

150

160

220

240

280

220

240

180

235

255

295

235

255

4.5

5.4

6.5

M10

Dimensions (mm) and connections

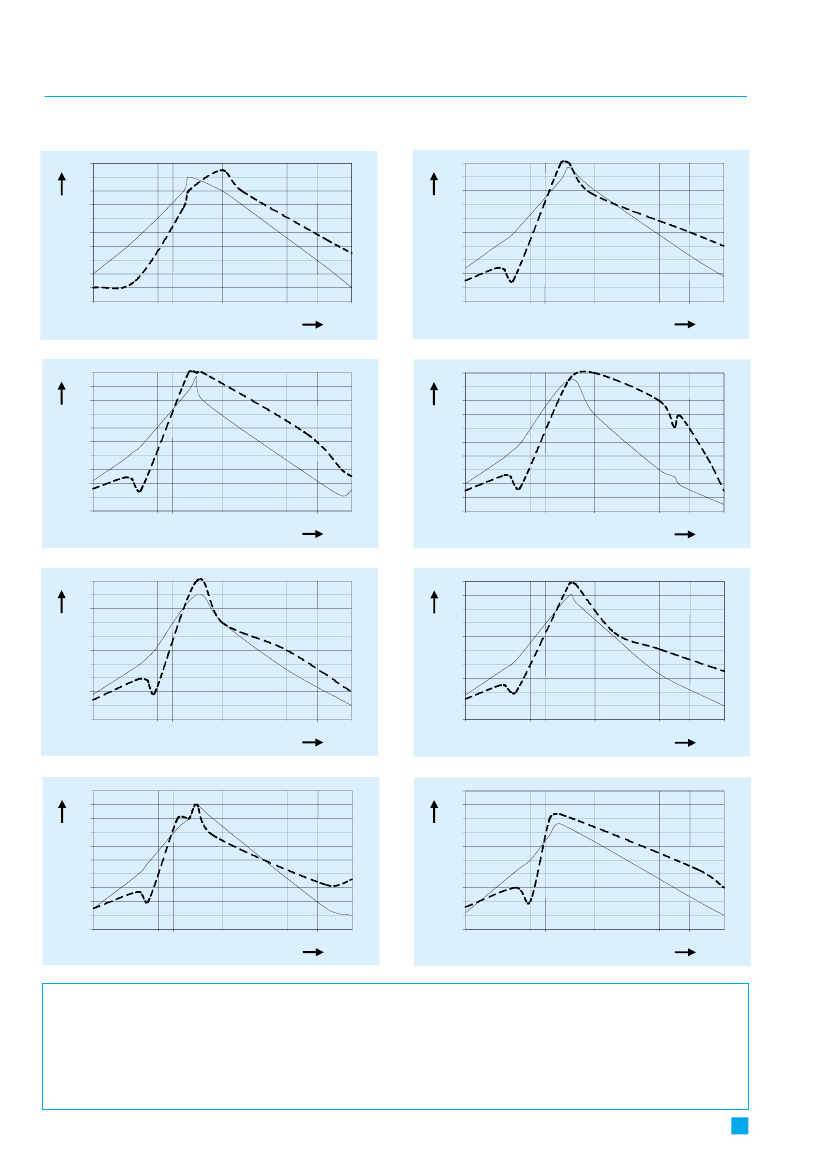

Filter Range

Code

F.LL.D3.007A.BN.R1

F.LL.D3.016A.BN.R1

F.LL.D3.030A.BN.R1

F.LL.D3.042A.BN.R1

F.LL.D3.055A.BN.R1

F.LL.D3.075A.BN.R1

F.LL.D3.100A.BN.R1

F.LL.D3.130A.BN.R1

(A)

(7.7)

16 (17.5)

30 (32.9)

42 (46)

55 (60.2)

75 (82.2)

(mH)

3x2

3x1.9

3x1.4

3x1.1

3x0.7

3x0.8

(µF)

3x5.6

(µF)

3x3.3

(µF)

1x3.3

(MΩ)

3x1M + 1x0.66M

Circuit diagram

100 (109.5) 3x0.7

130 (142.4) 3x0.5

Approvals

In accordance with UL 1283, CSA 22.2 No.8-1986, EN133200

F.LL.D3.075A.BN.R1 Related Products

	F.LL.D3.075A.BN.R1	F.LL.D3.055A.BN.R1	F.LL.D3.007A.BN.R1	F.LL.D3.016A.BN.R1	F.LL.D3.030A.BN.R1	F.LL.D3.042A.BN.R1	F.LL.D3.100A.BN.R1	F.LL.D3.130A.BN.R1
Description	Three Phase EMI Filter, 480V, 50/60HzHz	Three Phase EMI Filter, 480V, 50/60HzHz	Three Phase EMI Filter, 480V, 50/60HzHz	Three Phase EMI Filter, 480V, 50/60HzHz	Three Phase EMI Filter, 480V, 50/60HzHz	Three Phase EMI Filter, 480V, 50/60HzHz	Three Phase EMI Filter, 480V, 50/60HzHz	Three Phase EMI Filter, 480V, 50/60HzHz
Maker	Nissei Electric Co.,Ltd.	Nissei Electric Co.,Ltd.	Nissei Electric Co.,Ltd.	Nissei Electric Co.,Ltd.	Nissei Electric Co.,Ltd.	Nissei Electric Co.,Ltd.	Nissei Electric Co.,Ltd.	Nissei Electric Co.,Ltd.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Certification	UL; CSA; EN	UL; CSA; EN	UL; CSA; EN	UL; CSA; EN	UL; CSA; EN	UL; CSA; EN	UL; CSA; EN	UL; CSA; EN
filter type	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER
high	135 mm	90 mm	70 mm	70 mm	85 mm	85 mm	150 mm	150 mm
high potential	3000 V	3000 V	3000 V	3000 V	3000 V	3000 V	3000 V	3000 V
Maximum leakage current	3 mA	3 mA	3 mA	3 mA	3 mA	3 mA	3 mA	3 mA
length	270 mm	250 mm	190 mm	250 mm	270 mm	310 mm	270 mm	270 mm
Manufacturer's serial number	F.LL.D3	F.LL.D3	F.LL.D3	F.LL.D3	F.LL.D3	F.LL.D3	F.LL.D3	F.LL.D3
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
working frequency	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
physical size	L270XB80XH135 (mm)	L250XB85XH90 (mm)	L190XB40XH70 (mm)	L250XB45XH70 (mm)	L270XB50XH85 (mm)	L310XB50XH85 (mm)	L270XB90XH150 (mm)	L270XB90XH150 (mm)
Rated current	75 A	55 A	7 A	16 A	30 A	42 A	100 A	130 A
Rated voltage	480 V	480 V	480 V	480 V	480 V	480 V	480 V	480 V
