Precision SMA Male to SMP Female Adapter 18 Ghz.
TECHNICAL DATA SHEET
Precision SMA Male to SMP Female Adapter 18 Ghz.
Configuration
Connector 1
Impedance 1
Connector Specification 1
Connector 2
Impedance 2
Connector Specification 2
Adapter Design
Body Style
SMA Male
50 Ohms
MIL-STD-348
SMP Female
50 Ohms
MIL-STD-348
Precision
Straight
PE9513
Electrical Specifications
Frequency Range, GHz
Maximum VSWR
DC to 18
1.2:1
Mechanical Specifications
Temperature
Operating Range,deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +125
0.863 [21.92]
0.312 [7.92]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
SMA Male
Beryllium Copper, Gold
MIL-G-45204
Brass, Nickel
5/16
5 [0.57]
Passivated Stainless Steel
SMP Female
Beryllium Copper, Gold
MIL-G-45204
Beryllium Copper, Gold
MIL-G-45204
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Precision SMA Male to SMP Female Adapter 18 Ghz. PE9513
PE9513 REV
1
Precision SMA Male to SMP Female Adapter 18 Ghz.
TECHNICAL DATA SHEET

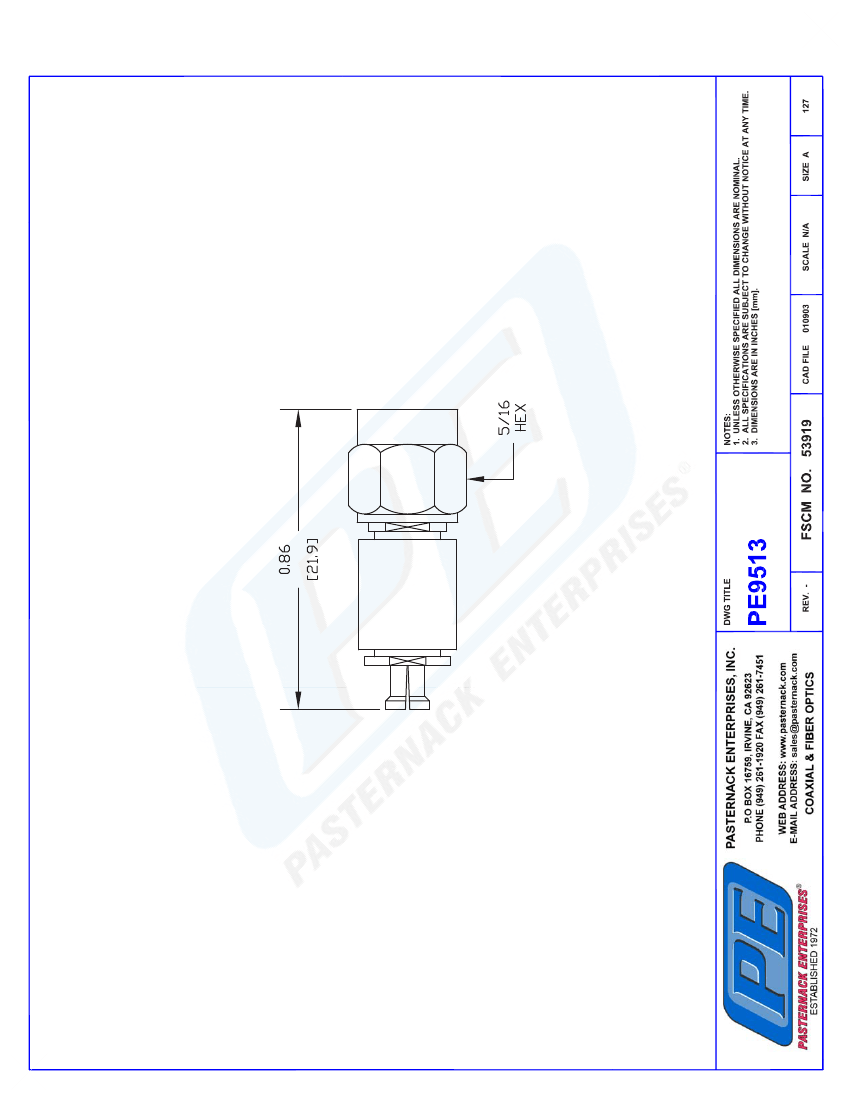

Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE9513
URL:
http://www.pasternack.com/sma-male-smp-female-straight-adapter-pe9513-p.aspx
Precision SMA Male to SMP Female Adapter 18 Ghz. from Pasternack Enterprises has same day shipment for domestic
and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
PE9513 REV
2
