C&K DA Series
Miniature Single Pole Rocker Switches
Features/Benefits
Typical Applications
• Small appliances
• Nice actuator styling with
multiple options
• Computers and peripherals
• Guards to prevent accidental
• Medical instrumentation
actuation
• Momentary and maintained functions
• IP65 splash proof rubber boot option
• RoHS compliant
Specifications
CONTACT RATING:
UL/CSA: 16 AMPS @ 125 VAC, 1/3 HP;
10 AMPS @ 250 VAC, 1/2 HP.
VDE: 10 AMPS @ 125 VAC, 6 AMPS @ 250 VAC.
ELECTRICAL LIFE: 10,000 make and break cycles at full load.
INSULATION RESISTANCE: 108
Ω
min.
DIELECTRIC STRENGTH: 1,500 VRMS @ sea level.
OPERATING TEMPERATURE: -20ºC to +85ºC
Materials
HOUSING AND ACTUATOR: 6/6 nylon (UL94V-2), black, matte finish.
ILLUMINATED ACTUATOR: Polycarbonate, matte finish.
CENTER CONTACTS: Silver plated, copper alloy.
END CONTACTS: Silver plated AgSn02ln03.
ALL TERMINALS: Silver plated, copper alloy.
NOTE:
For the latest information regarding RoHS compliance, please go to:
www.ittcannon.com/rohs.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.

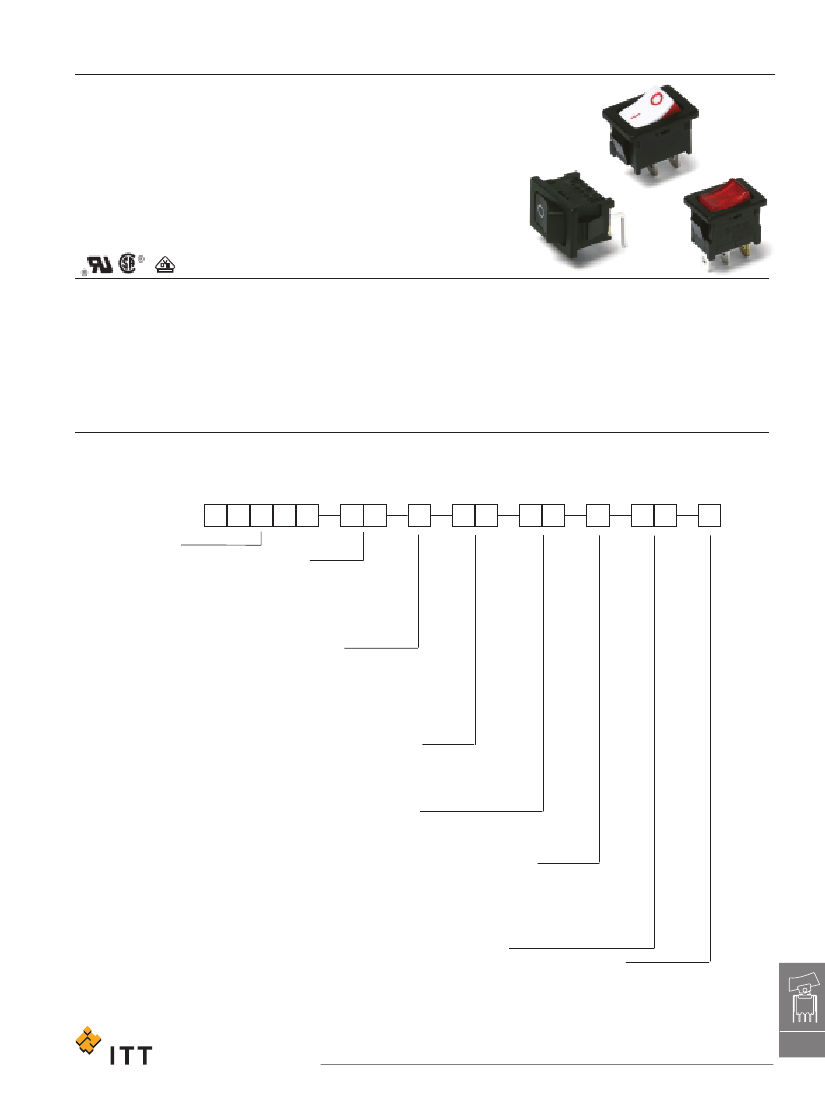

Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown
and described on pages H-58 through H-61. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
DA101
SPDT On-None-On
DA102
SPST On-None-Off
DA103
SPDT On-Off-On
DA12
*
SPST On-None-Off
Actuator
J1
Rocker
J2
Two-tone rocker
J3
Illuminated rocker
J4
Circle, illuminated rocker
J5
Oval, illuminated rocker
Actuator Color
2
Black
1
White
3
Red
R
Red, illuminated
A
Amber, illuminated
G
Green, illuminated
Mounting Style/Color
S2
Snap-in, black
S1
Snap-in, white
B2
Recessed snap-in bracket, black
G2
Guard, black
Termination
15
.187” quick connect
17
Solder lug
02
Thru-hole
A
Right angle
Actuator Marking
(NONE)
No marking
D
ON-OFF
H
”O l” - international ON-OFF
N
Large dot
P
”O -” international ON-OFF
Contact Rating
QF
Silver
Lamp Rating
(NONE)
No lamp
6
LED
7
125 VAC neon
8
250 VAC neon
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change

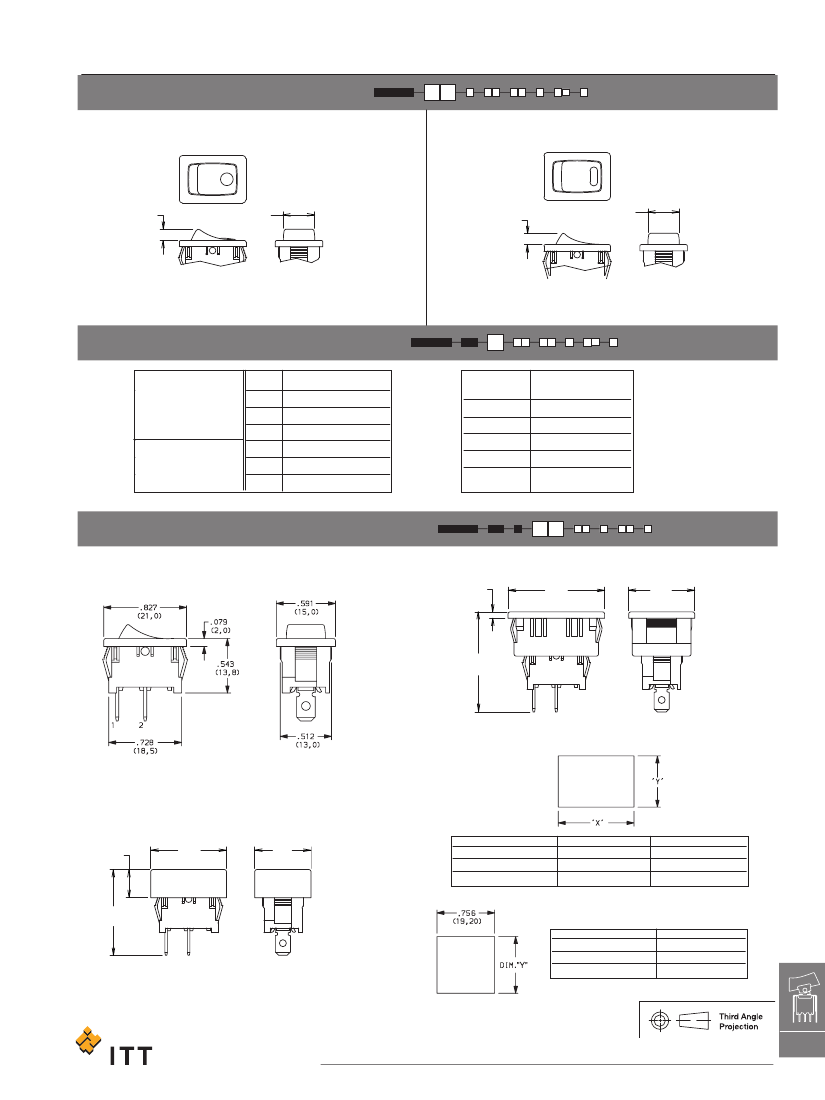

Rocker
*
DA12 — for switches with both marking and illumination
H
H-58
www.ittcannon.com
C&K DA Series
Miniature Single Pole Rocker Switches

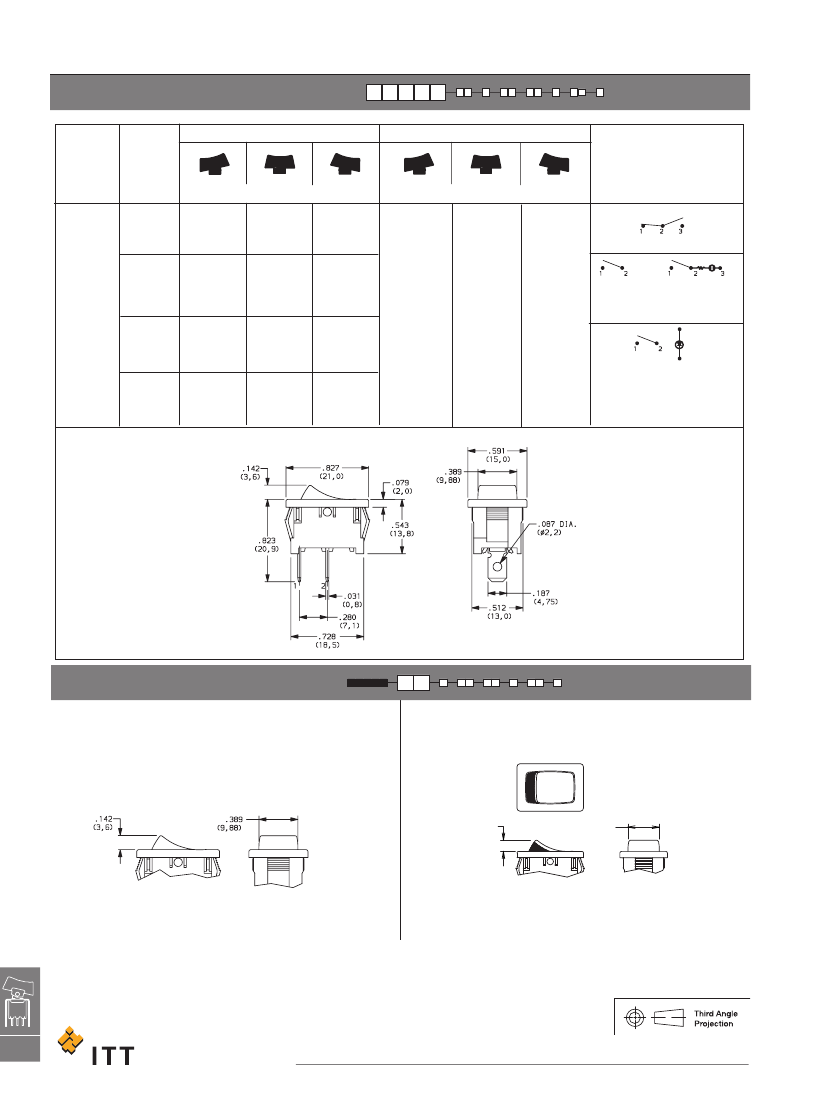

SWITCH FUNCTION
SWITCH FUNCTION
CONNECTED TERMINALS
NO.
POLES
MODEL NO.
C&K marking on opposite side
C&K marking on opposite side
SCHEMATIC
DA101
ON
NONE
ON
SP
DA102
ON
NONE
OFF
2-3
N/A
2-1
OR
For 7 & 8
Illuminated Versions
Only
+
DA103
ON
OFF
ON
–
For 6 Illuminated
Versions Only
DA12 *
ON
NONE
OFF
*
DA12 - for switches with both marking and illumination
ACTUATOR
J1
J3
ROCKER
ILLUMINATED ROCKER
J2
TWO-TONE ROCKER
.142
(3,6)
.389
(9,88)
Rocker
NOTE:
J3 actuator available with DAX02 switch functions only.
NOTE:
Available with DA102 switch function and P actuator marking only.
H
H-59
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
www.ittcannon.com
C&K DA Series
Miniature Single Pole Rocker Switches
ACTUATOR
J4
CIRCLE, ILLUMINATED ROCKER
J5
OVAL, ILLUMINATED ROCKER
.142
(3,6)
.389
(9,88)
.142
(3,6)
.389
(9,88)
NOTE:
Available with DA102 switch function and
7 & 8 lamp ratings only.
NOTE:
Available with DA102 switch function and
6 lamp rating only.
ACTUATOR COLOR
OPTION
CODE
ACTUATOR
COLOR
BLACK
WHITE
RED
RED, ILLUMINATED
AMBER, ILLUMINATED
GREEN, ILLUMINATED
OPTION
CODE
ACTUATOR
COLOR
TOP
BOTTOM
WHITE
WHITE
RED
BLACK
BLACK
RED
BLACK
WHITE
WHTE
RED
For J1only
For J3, J4,
J5 only
2
1
3
R
A
G
1
2
3
4
5
J2 actuator only
MOUNTING STYLE/COLOR
S2
S1
SNAP-IN, BLACK
SNAP-IN, WHITE
B2
RECESSED SNAP-IN BRACKET, BLACK
.080
(2,03)
1.200
(30,48)
.820
(20,83)
1.244
(31,60)
NOTE:
Available with DA10X switch functions only.
S2, S1 & G2 PANEL MOUNTING
G2
GUARD, BLACK
.350
(8,89)
.940
(23,88)
.700
(17,78)
PANEL THICKNESS
0.030-0.049 (0,75-1,25)
0.049-0.079 (1,25-2,0)
0.079-0.118 (2,0-3,0)
“X”
0.756-.004 (19,2-0,1)
0.764-.004 (19,4-0,1)
0.779-.004 (19,8-0,1)
B2 PANEL MOUNTING
“Y”
0.512+.004 (13,0+0,1)
0.512+.004 (13,0+0,1)
0.512+.004 (13,0+0,1)
Rocker
1.064
(27,03)
PANEL THICKNESS
0.030-0.049 (0,75-0,25)
0.049-0.079 (1,25-2,0)
0.079-0.118 (2,0-3,0)
NOTE:
Available with DA10X switch functions only.
“Y”
1.068 (27,13)
1.076 (27,33)
1.092 (27,74)
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
H
H-60
www.ittcannon.com
C&K DA Series
Miniature Single Pole Rocker Switches

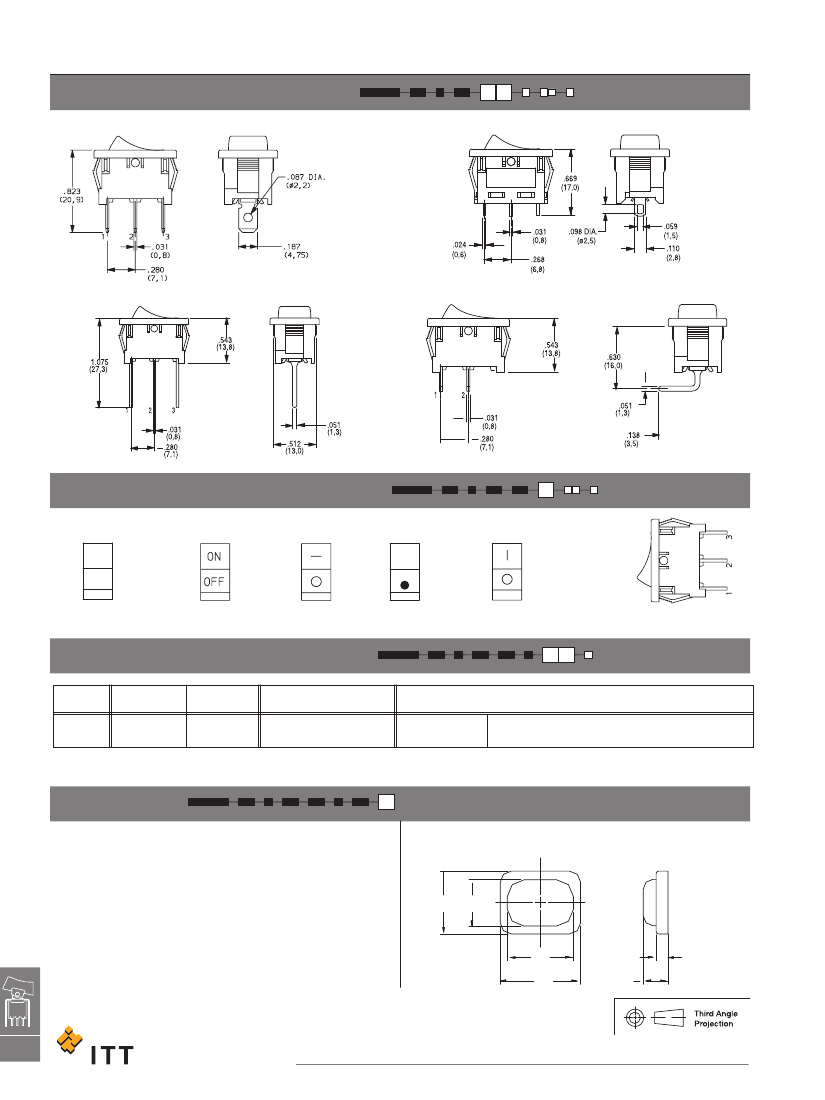

TERMINATION
15
.187” QUICK CONNECT
17
SOLDER LUG
02
THRU-HOLE
A
RIGHT ANGLE
ACTUATOR MARKING
NONE
NO MARKING
D
ON-OFF
H
Ol
N
LARGE DOT
P
O-
NOTE:
Orientation of actuator marking and terminals.
CONTACT MATERIAL
OPTION
CODE
RoHS
COMPLIANT *
YES
RoHS
COMPATIBLE *
YES
CONTACT AND
TERMINAL MATERIAL
SILVER
POWER
RATINGS
16 AMPS @ 125 VAC; 1/3 HP; 10 AMPS @ 250 VAC; 1/2
QF
(UL/CSA). 10 AMPS @ 125 VAC, 6 AMPS @ 250 VAC (VDE)
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
LAMP RATING
(NONE)
NO LAMP
6
LED RATING @ 10 mA Vf=1.85V
7
125 VAC 33kΩ NEON
8
250 VAC 150kΩ NEON
216C00000
ACCESSORIES
IP65 SPLASH PROOF RUBBER BOOT
Rocker
.748
(19,0)
.551
(14,0)
.787
(20,0)
.957
(24,3)
.295
(7,5)
.142
(3,6)
H
H-61
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
www.ittcannon.com
