ST6253BM6/XXX datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> ST6253BM6/XXX

PDF

ST6253BM6/XXX: Description8-BIT, MROM, 8MHz, MICROCONTROLLER, PDSO20, 0.300 INCH, PLASTIC, SOP-20; CategoryThe embedded processor and controller Microcontrollers and processors; File Size153KB，4 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

ST6253BM6/XXX Overview

8-BIT, MROM, 8MHz, MICROCONTROLLER, PDSO20, 0.300 INCH, PLASTIC, SOP-20

ST6253BM6/XXX Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	SOIC
package instruction	0.300 INCH, PLASTIC, SOP-20
Contacts	20
Reach Compliance Code	not_compliant
Has ADC	YES
Address bus width
bit size	8
CPU series	ST6200
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	12.8 mm
Number of I/O lines	13
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	128
rom(word)	1836
ROM programmability	MROM
Maximum seat height	2.65 mm
speed	8 MHz
Maximum slew rate	6.6 mA
Maximum supply voltage	6 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

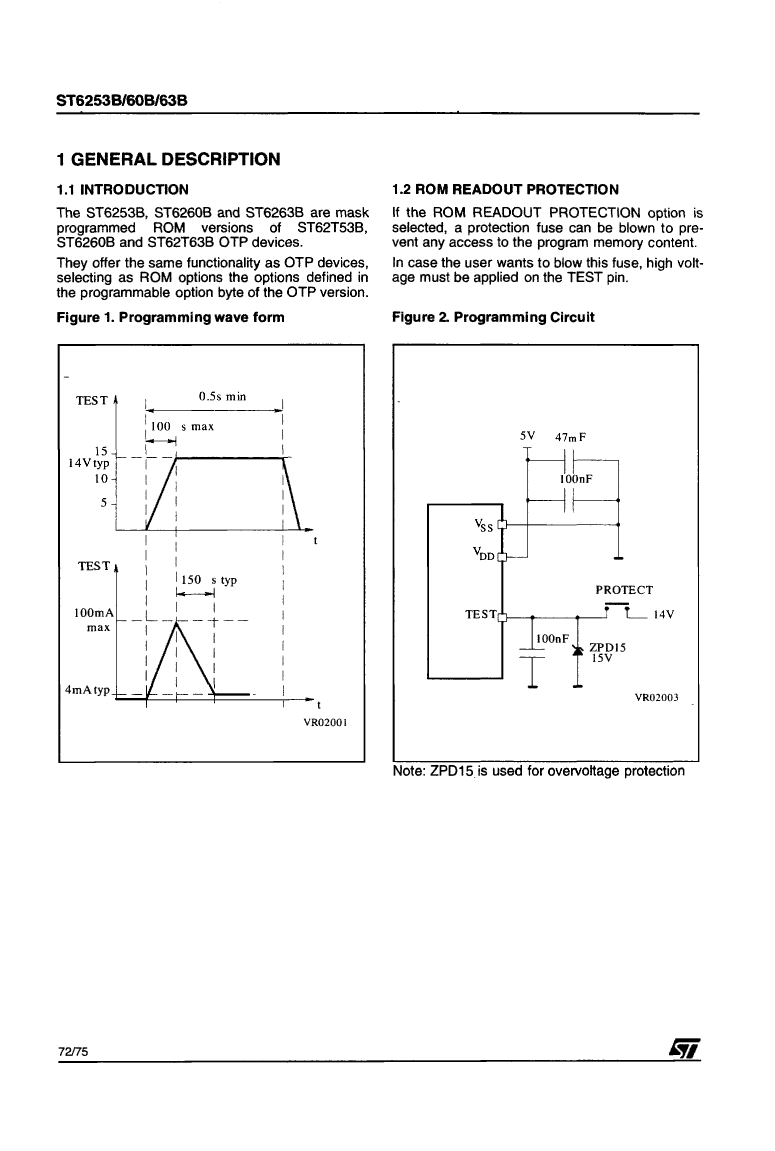

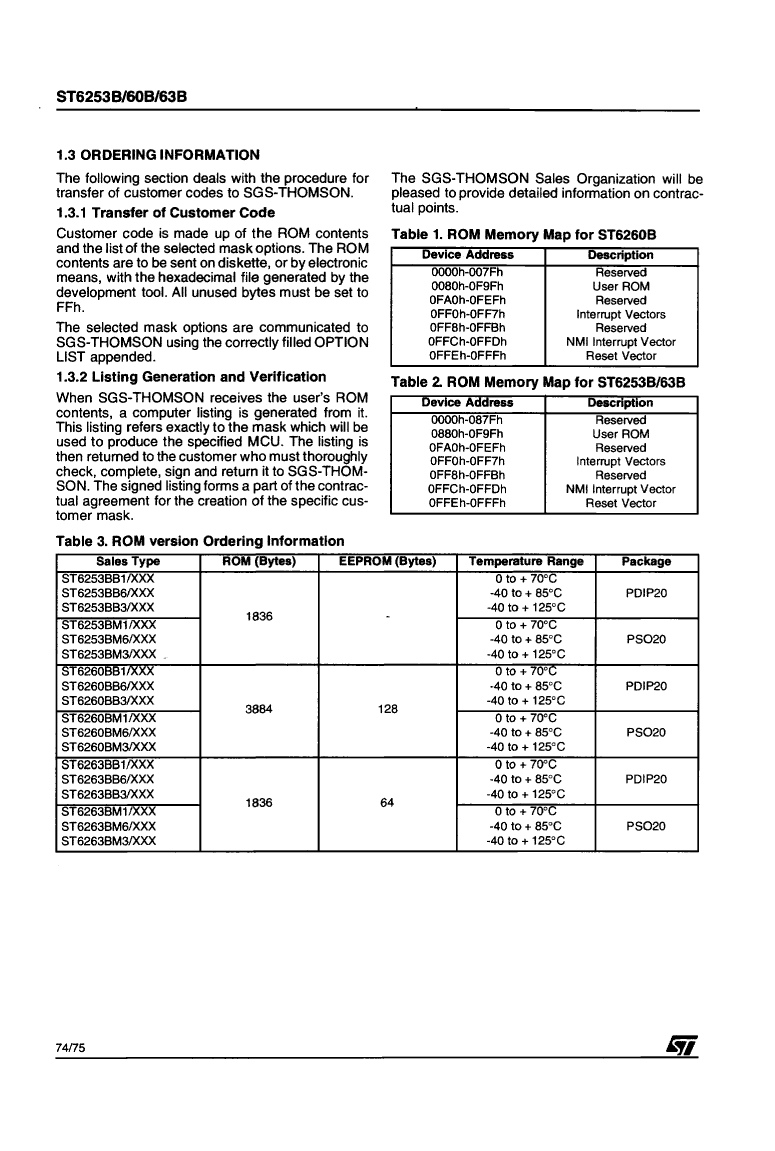

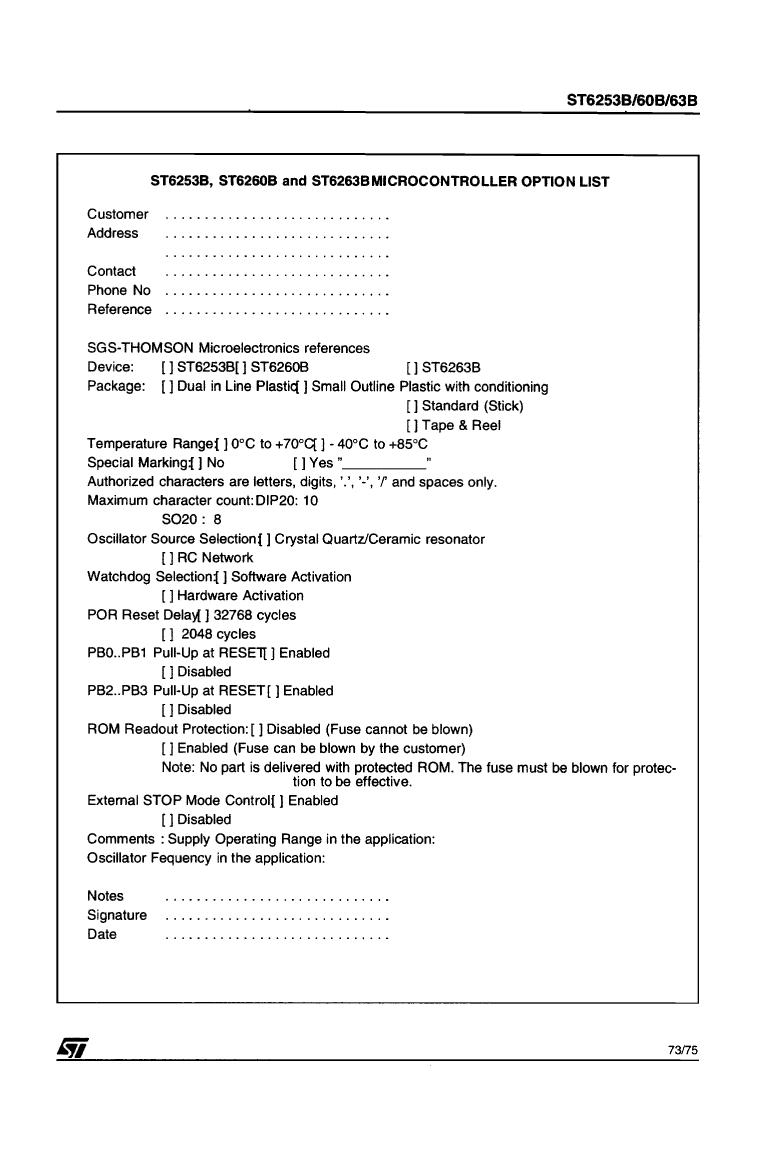

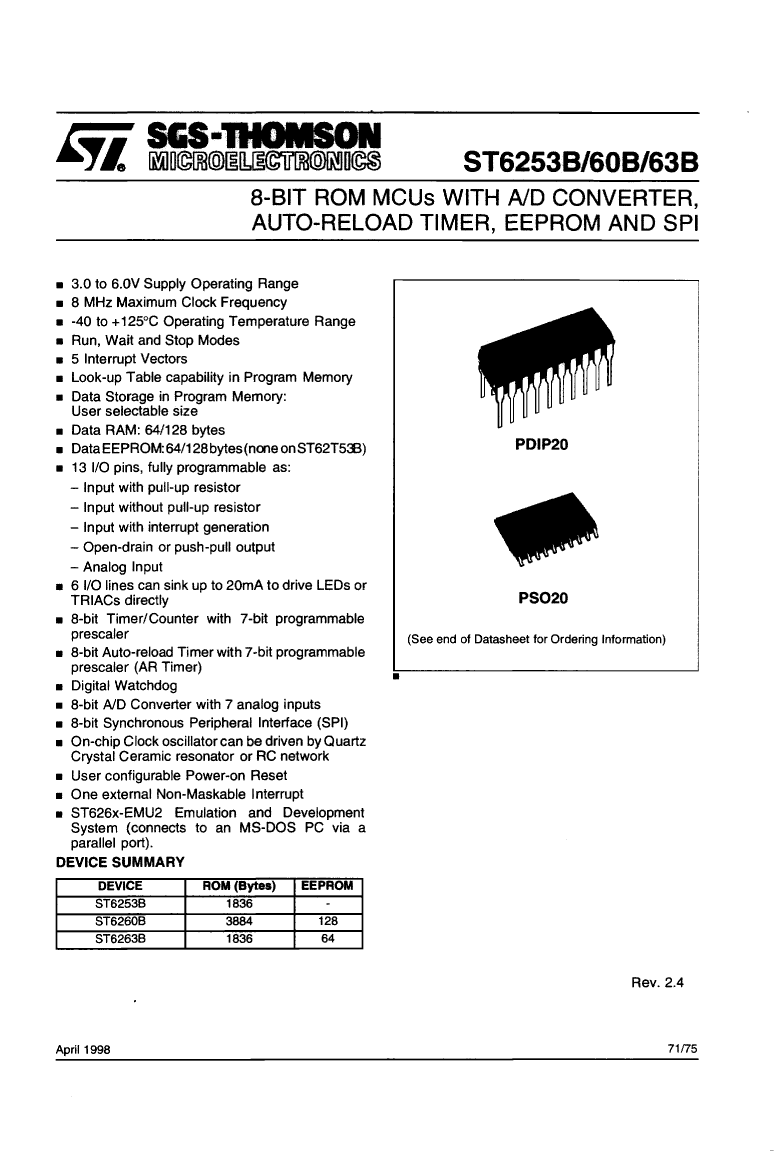

Preview

Download Datasheet

ST6253BM6/XXX Related Products

	ST6253BM6/XXX	ST6253BB6/XXX	ST6253BM1/XXX	ST6253BB3/XXX	ST6253BM3/XXX	ST6253BB1/XXX
Description	8-BIT, MROM, 8MHz, MICROCONTROLLER, PDSO20, 0.300 INCH, PLASTIC, SOP-20	8-BIT, MROM, 8MHz, MICROCONTROLLER, PDIP20, 0.300 INCH, PLASTIC, DIP-20	8-BIT, MROM, 8MHz, MICROCONTROLLER, PDSO20, 0.300 INCH, PLASTIC, SOP-20	8-BIT, MROM, 8MHz, MICROCONTROLLER, PDIP20, 0.300 INCH, PLASTIC, DIP-20	8-BIT, MROM, 8MHz, MICROCONTROLLER, PDSO20, 0.300 INCH, PLASTIC, SO-20	8-BIT, MROM, 8MHz, MICROCONTROLLER, PDIP20, 0.300 INCH, PLASTIC, DIP-20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	SOIC	DIP	SOIC	DIP	SOIC	DIP
package instruction	0.300 INCH, PLASTIC, SOP-20	0.300 INCH, PLASTIC, DIP-20	0.300 INCH, PLASTIC, SOP-20	0.300 INCH, PLASTIC, DIP-20	0.300 INCH, PLASTIC, SO-20	0.300 INCH, PLASTIC, DIP-20
Contacts	20	20	20	20	20	20
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	_compli
Has ADC	YES	YES	YES	YES	YES	YES
bit size	8	8	8	8	8	8
CPU series	ST6200	ST6200	ST6200	ST6200	ST6200	ST6200
maximum clock frequency	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz
DAC channel	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO
JESD-30 code	R-PDSO-G20	R-PDIP-T20	R-PDSO-G20	R-PDIP-T20	R-PDSO-G20	R-PDIP-T20
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of I/O lines	13	13	13	13	13	13
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	85 °C	85 °C	70 °C	125 °C	125 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-40 °C	-
PWM channel	YES	YES	YES	NO	NO	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP	DIP	SOP	DIP
Encapsulate equivalent code	SOP20,.4	DIP20,.3	SOP20,.4	DIP20,.3	SOP20,.4	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	3.3/5 V	3.3/5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	128	128	128	128	128	128
rom(word)	1836	1836	1836	1836	1836	1836
ROM programmability	MROM	MROM	MROM	MROM	MROM	MROM
Maximum seat height	2.65 mm	3.93 mm	2.65 mm	3.93 mm	2.65 mm	3.93 mm
speed	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz	8 MHz
Maximum supply voltage	6 V	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage	3 V	3 V	3 V	3 V	3 V	3 V
surface mount	YES	NO	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	AUTOMOTIVE	AUTOMOTIVE	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.5 mm	7.62 mm	7.5 mm	7.62 mm	7.5 mm	7.62 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maximum slew rate	6.6 mA	6.6 mA	6.6 mA	-	-	6.6 mA
Nominal supply voltage	5 V	5 V	5 V	-	-	5 V
