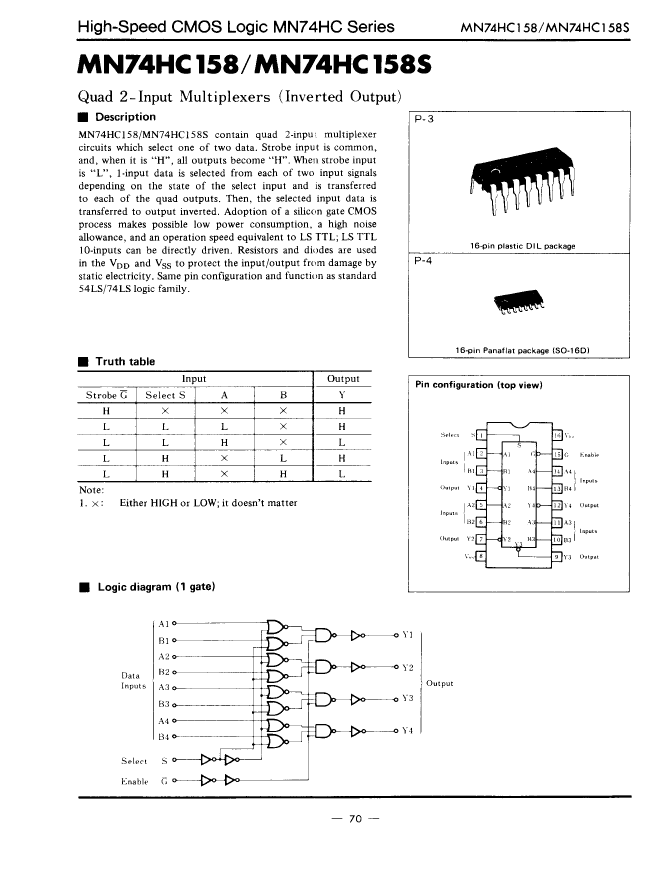

Multiplexer, HC/UH Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDSO16, SOP-16

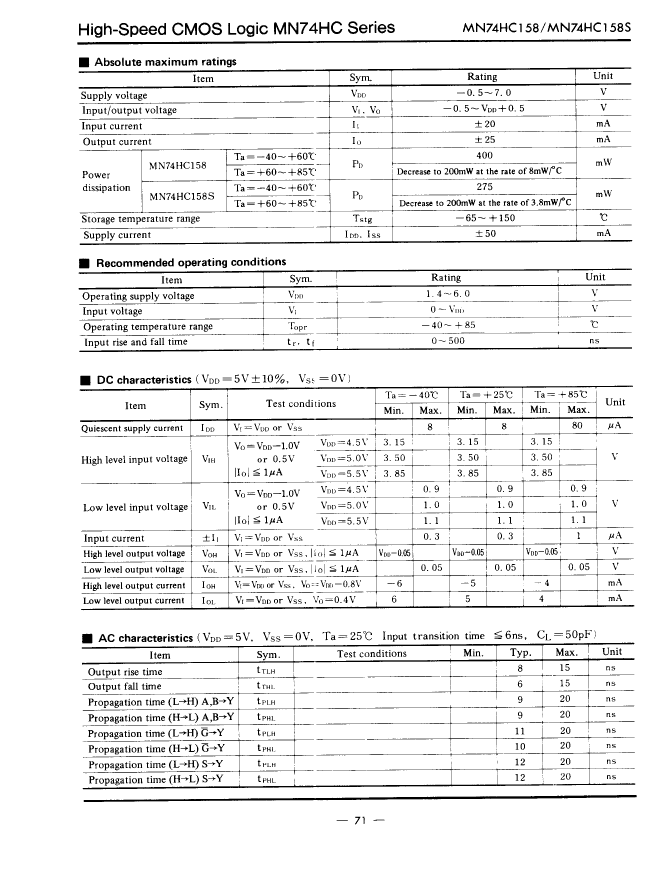

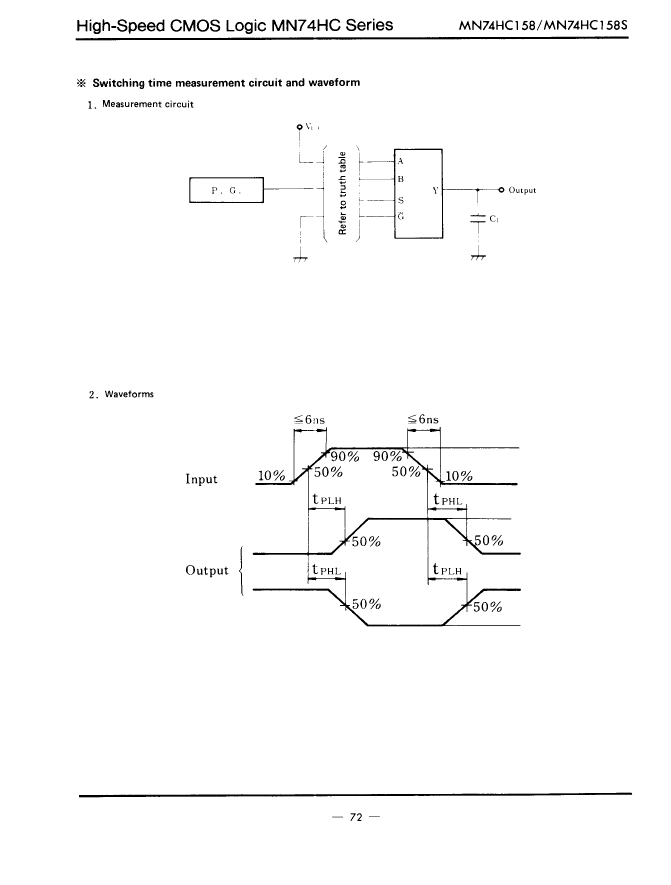

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Panasonic |
| Parts packaging code | SOIC |
| package instruction | SOP, SOP16,.25 |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| series | HC/UH |
| JESD-30 code | R-PDSO-G16 |
| JESD-609 code | e0 |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | MULTIPLEXER |
| MaximumI(ol) | 0.006 A |
| Number of functions | 4 |
| Number of entries | 2 |
| Output times | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output polarity | INVERTED |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP16,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 2/6 V |
| Prop。Delay @ Nom-Sup | 20 ns |
| propagation delay (tpd) | 125 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 6 V |
| Minimum supply voltage (Vsup) | 1.4 V |
| Nominal supply voltage (Vsup) | 2 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| MN74HC158S | MN74HC158 | |
|---|---|---|
| Description | Multiplexer, HC/UH Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDSO16, SOP-16 | Multiplexer, HC/UH Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDIP16, PLASTIC, DIP-16 |
| Is it lead-free? | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible |
| Maker | Panasonic | Panasonic |
| Parts packaging code | SOIC | DIP |
| package instruction | SOP, SOP16,.25 | DIP, DIP16,.3 |
| Contacts | 16 | 16 |
| Reach Compliance Code | unknown | unknown |
| series | HC/UH | HC/UH |
| JESD-30 code | R-PDSO-G16 | R-PDIP-T16 |
| JESD-609 code | e0 | e0 |
| Load capacitance (CL) | 50 pF | 50 pF |
| Logic integrated circuit type | MULTIPLEXER | MULTIPLEXER |
| MaximumI(ol) | 0.006 A | 0.006 A |
| Number of functions | 4 | 4 |
| Number of entries | 2 | 2 |
| Output times | 1 | 1 |
| Number of terminals | 16 | 16 |
| Maximum operating temperature | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C |
| Output polarity | INVERTED | INVERTED |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | DIP |
| Encapsulate equivalent code | SOP16,.25 | DIP16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 2/6 V | 2/6 V |
| Prop。Delay @ Nom-Sup | 20 ns | 20 ns |
| propagation delay (tpd) | 125 ns | 125 ns |
| Certification status | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 6 V | 6 V |
| Minimum supply voltage (Vsup) | 1.4 V | 1.4 V |
| Nominal supply voltage (Vsup) | 2 V | 2 V |
| surface mount | YES | NO |
| technology | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED |
