Product Specifications Approval Sheet
Product Name: SAW Filter 1176.45 MHz SMD 1.1X0.9 mm (BW=20MHz)
TST Parts No.: TA2543B (This part is compliant with AEC-Q200)
Customer Parts No.:
Company:
Division:
Approved by :
Date:
Checked by:
Approval by:
Date:
Bob Chau
Andy Yu
2, 21, 2020
1. Customer signed back is required before TST can proceed with sample build and receive orders.
2. Orders received without customer signed back will be regarded as agreement on the specifications.
3. Any specifications changes must be approved upon by both parties and a new revision of specifications
shall be released to reflect the changes
TAI-SAW TECHNOLOGY CO., LTD.
TST DCC
Release document
FR-71S03-02
TAI-SAW TECHNOLOGY CO., LTD.
No. 3, Industrial 2nd Rd., Ping-Chen Industrial District,
Taoyuan, 324, Taiwan, R.O.C.
TEL: 886-3-4690038
FAX: 886-3-4697532
E-mail:
tstsales@mail.taisaw.com
Web:
www.taisaw.com
SAW Filter 1176.45MHz BW20MHz SMD 1.1x0.9mm
MODEL NO.:TA2543B
A. MAXIMUM RATING:
1. Input Power Level: 13 dBm (2000h)
2. DC Voltage : 3 V
3. Operating Temperature: -40° to +105°
C
C
4. Storage Temperature: -40° to +125°
C
C
5. ESD Machine Mode : 50V
6. ESD Human Body Mode : 100V
7. Moisture Sensitive Level (MSL): Level 2a
B. ELECTRICAL CHARACTERISTICS:
Temperature range for specification :
Terminating source impedance
Terminating load impedance :
Item
Center Frequency
Insertion Loss
(1166.45~1186.45 MHz)
Insertion Loss
(1166.45~1186.45 MHz)
Amplitude Ripple
(1166.45~1186.45 MHz)
VSWR
(1166.45~1186.45 MHz)
Attenuation
(refer to 0 dB)
100 ~ 1080
1080 ~ 1130
1230 ~ 2000
2000 ~ 3000
MHz
MHz
MHz
MHz
dB
dB
dB
dB
ppm/K
30
20
30
25
-
44
26
32
29
-36
-
-
-
-
-
IL
IL
:
REV. NO.:1.0
Electrostatic Sensitive Device
(ESD)
Tspec = -40° to +105°
C
C
Zs = 50
Z
L
= 50
Unit
Fc
MHz
dB
dB
dB
p-p
Min.
-
-
-
-
-
Typ.
1176.45
1.4
1.4
0.4
1.6
Max.
-
2
(1)
2.2
1.3
2.1
Temperature Coefficient
(1). Temperature range -20° to +85°
C
C
TAI-SAW TECHNOLOGY CO., LTD.
TST DCC
Release document
2
C.OUTLINE DRAWING:
w
□
-
1 : Input
4 : Output
2, 3, 5 : Ground
□
: Year/Month Code (Follow the table)
YEAR/Month
1
2
3
4
5
2013
A
B
C
D
E
2014
N
P
Q
R
S
2015
a
b
c
d
e
2016
n
p
q
r
s
2017
A
B
C
D
E
2018
N
P
Q
R
S
2019
a
b
c
d
e
2020
n
p
q
r
s
6
F
T
f
t
F
T
f
t
7
G
U
g
u
G
U
g
u
8
H
V
h
v
H
V
h
v
9
J
W
j
w
J
W
j
w
10
K
X
k
x
K
X
k
x
11
L
Y
l
y
L
Y
l
y
12
M
Z
m
z
M
Z
m
z
TAI-SAW TECHNOLOGY CO., LTD.
TST DCC
Release document
3
D. MEASUREMENT CIRCUIT:
50 ohm
50 ohm
E. PCB Footprint：
：
TAI-SAW TECHNOLOGY CO., LTD.
TST DCC
Release document
4

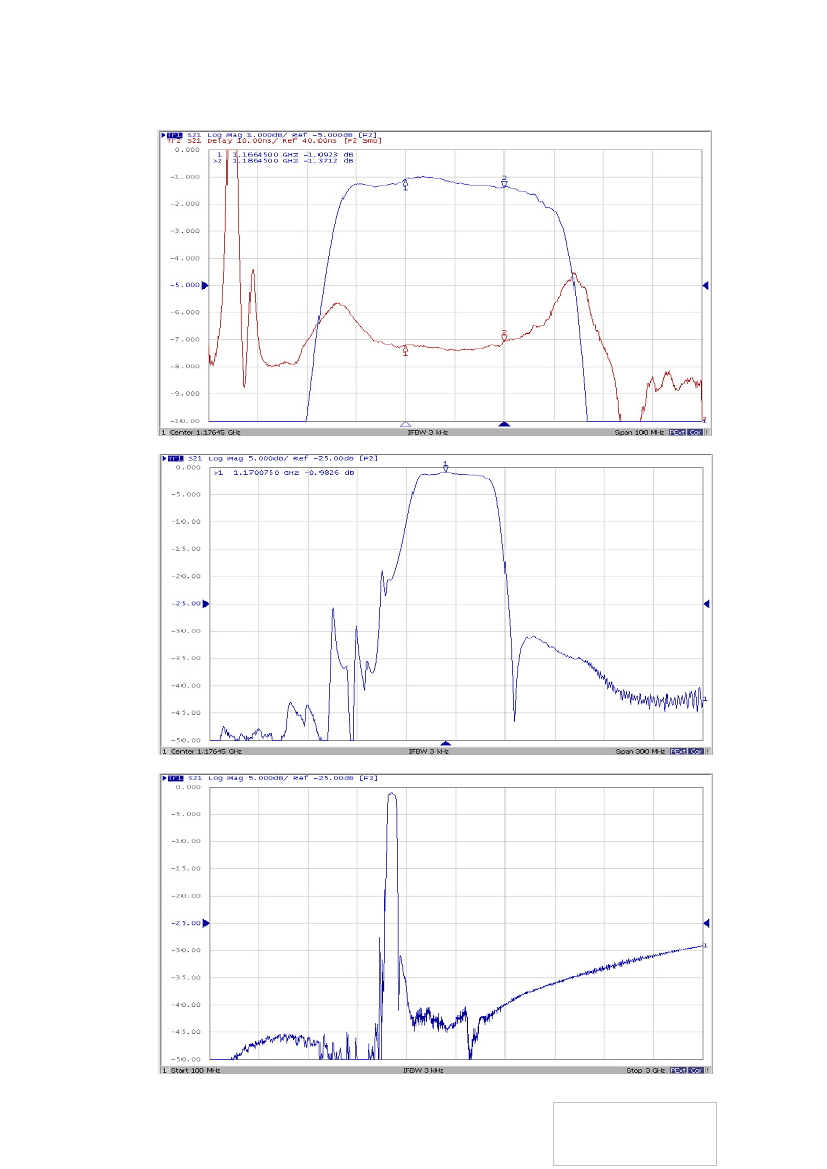

F. Frequency Characteristics:
TAI-SAW TECHNOLOGY CO., LTD.
TST DCC
Release document
5
