NL03, NL05, NL08, NL10, NL12, NL20
【NL
Series】
Wire Wound Chip Inductor (Ferrite)
■Features
－Very
strong solderability by flow soldering, soldering iron or wave soldering
－Highly
accurate dimensions, can be mounted automatically
－Terminals
are highly resistant to pull forces
－Highly
resistant to mechanical shocks and pressure
－Highly
reliable in environments of sudden temperature change and humidity.
Super Q characteristics
■Applications
－Micro
Televisions, Liquid Crystal Televisions, Video Cameras, Portable VCRs, Car Radios,
Car Stereos, Thin Tape Radios, Television Tuners, Mobile Telephones, Radio and Other Electronic Devices

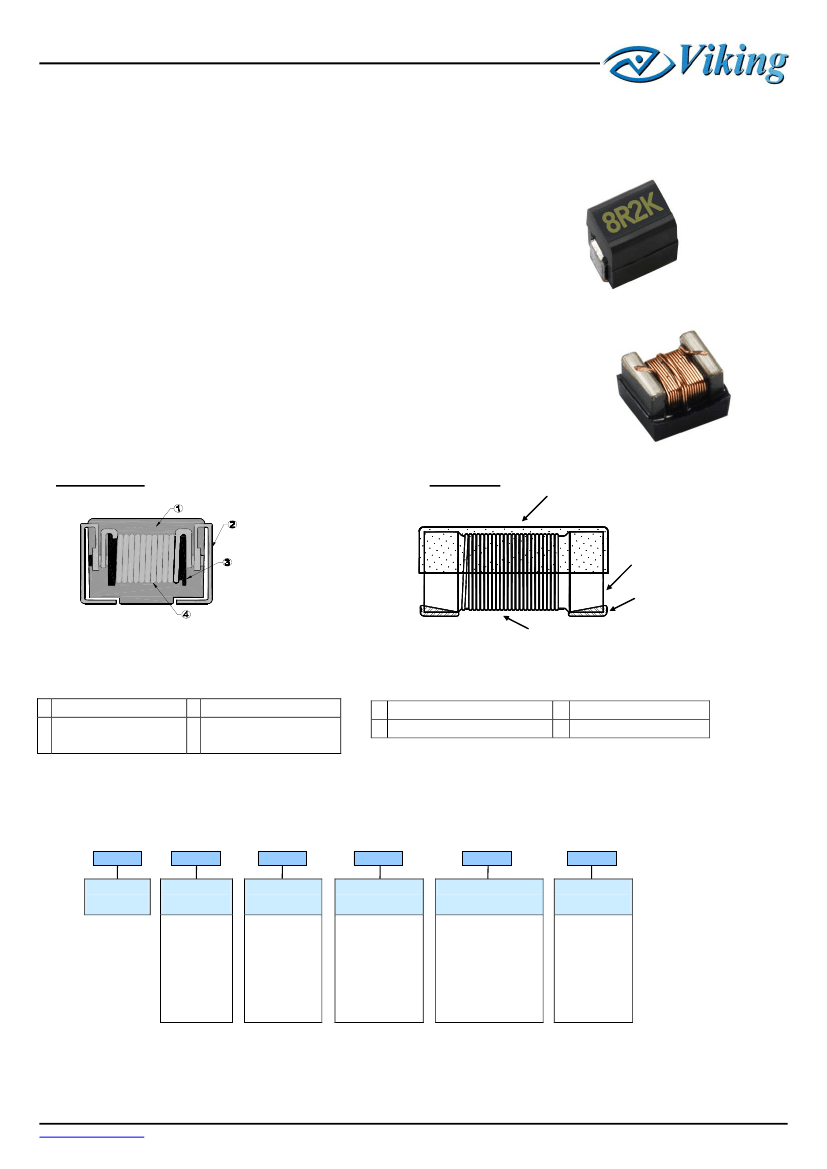

■Construction
Molding Type
Open Type
Molded resin
Electrode
(Tinned Copper Wire)
Ferrite core
Magnet wire
Ferrite core
Magnet wire
Electrode (Ag/Pd+Ni+Sn)
UV Glue
■Part
Numbering
NL
Product
Type
05
Dimensions
(LxW)
03: 0603
05: 0805
08: 1008
10: 1210
12: 1812
20: 2220
K
Inductance
Tolerance
J: ±5%
K: ±10%
M: ±20%
T
Packaging
Code
T: Taping Reel
: Standard
C: Large Current
L: Low Profile
R12: 120nH
R27: 270nH
2R7: 2700nH
100: 10μH
C
Current
1R0
Inductance
www.viking.com.tw
For detail questions, contact : sales@viking.com.tw
1
Edition : REV.B9
Revision: 28-Nov-2012
NL03, NL05, NL08, NL10, NL12, NL20
Wire Wound Chip Inductor (Ferrite)

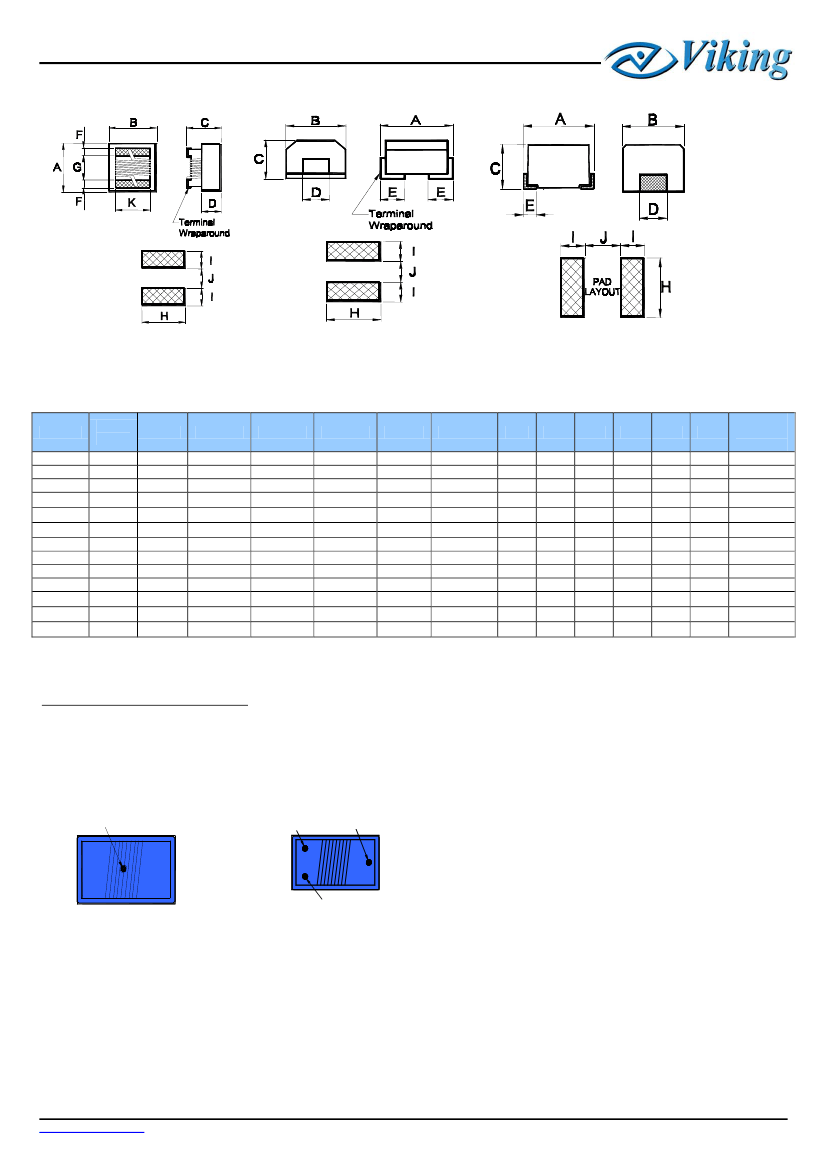

■Dimensions
Figure 1
Figure 2
Figure 3
Unit: mm
Type
NL03
NL05
NL08
NL10
NL12
NL20
NL05(L)
NL03(C)
NL05(C)
NL08(C)
NL10(C)
NL12(C)
NL20(C)
Size
(Inch)
0603
0805
1008
1210
1812
2220
0805
0603
0805
1008
1210
1812
2220
Figure
1
1
1
2
2
3
1
1
1
1
2
2
3
A
1.80 max
2.40 max
2.92 max
3.2±0.4
4.5±0.3
5.6±0.3
2.29 max
1.80 max
2.40 max
2.92 max
3.2±0.4
4.5±0.3
5.6±0.3
B
1.20 max
1.71 max
2.79 max
2.5±0.2
3.2±0.2
5.0±0.2
1.73 max
1.20 max
1.71 max
2.79 max
2.5±0.2
3.2±0.2
5.0±0.2
C
1.00 max
1.45 max
2.10 max
2.2±0.2
3.2±0.2
4.0±0.3
1.00 max
1.10 max
1.45 max
2.10 max
2.2±0.2
3.2±0.2
4.0±0.3
D
0.45
0.65
1.20
1.0±0.2
1.20
4±0.2
0.51
0.45
0.65
1.30
1.0±0.2
1.20
4±0.2
E
-
-
-
0.6-0/+0.3
1.0-0/+0.3
0.7±0.2
-
-
-
-
0.6-0/+0.3
1.0-0/+0.3
0.7±0.2
F
0.33
0.44
0.45
-
-
-
0.44
0.33
0.44
0.45
-
-
-
G
0.95
1.02
1.52
-
-
-
1.02
0.95
1.02
1.52
-
-
-
H
1.02
1.78
2.54
1.40
1.60
4.50
1.78
1.02
1.78
2.54
1.40
1.60
4.50
I
0.64
1.02
1.02
1.00
1.50
2.00
1.02
0.64
1.02
1.02
1.00
1.50
2.00
J
0.64
0.76
1.27
1.80
2.20
4.00
0.76
0.64
0.76
1.27
1.80
2.20
4.00
K
1.05
1.27
2.03
-
-
-
1.27
1.05
1.27
2.03
-
-
-
Weight
(g)
(1000pcs)
9.6
14
30
40
160
300
14
9.6
14
30
40
160
300
■Color
Coding
0603 / 0805 / 1008 Type (except NL05(L))
Because of small sizes, these parts are marked with a single color dot.
The inductance value represented by the dot is shown on the data page for each type.
0603/0805
1st Code
1008
3rd Code
1st Code
2nd Code
Color Coding
Color Coding
www.viking.com.tw
For detail questions, contact : sales@viking.com.tw
2
Edition : REV.B9
Revision: 28-Nov-2012
NL03, NL05, NL08, NL10, NL12, NL20
Wire Wound Chip Inductor (Ferrite)
▓Standard
Electrical Specifications
NL03 Wire Wound Chip Inductors (Ferrite / Open Type) / Standard Type
Codes
1R0
1R5
1R8
2R2
2R7
3R3
3R9
4R7
5R6
6R8
8R2
100
120
150
180
220
270
330
Inductance
(μH)
1.0
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
Tolerance
±10, ±20%
±10, ±20%
±10, ±20%
±10, ±20%
±10, ±20%
±10, ±20%
±10, ±20%
±10, ±20%
±10, ±20%
±10, ±20%
±10, ±20%
±10, ±20%
±10, ±20%
±10, ±20%
±10, ±20%
±10, ±20%
±10, ±20%
±10, ±20%
Q
typ.
16
16
16
16
16
16
16
16
16
16
16
14
14
14
14
14
14
14
Test Freq.
(MHz)
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
SRF
(MHz) typ.
390
160
121
103
72
66
61
51
47
43
40
36
32
29
28
24
20
15
DCR
(Ω) max.
0.416
0.520
0.559
0.728
0.806
0.910
1.079
1.261
1.430
1.950
2.184
2.405
2.964
3.380
3.770
4.693
6.760
8.580
IDC
(mA) max.
860
720
640
600
540
500
460
400
380
340
300
280
260
240
220
200
140
120
Color
Code
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
www.viking.com.tw
For detail questions, contact : sales@viking.com.tw
3
Edition : REV.B9
Revision: 28-Nov-2012
NL03, NL05, NL08, NL10, NL12, NL20
Wire Wound Chip Inductor (Ferrite)
NL05 Wire Wound Chip Inductors (Ferrite / Open Type) / Standard Type
Codes
R11
R12
R15
R18
R22
R27
R33
R39
R47
R56
R62
R68
R82
R91
1R0
1R2
1R5
1R8
2R2
2R7
3R3
3R9
4R7
5R6
6R8
8R2
100
120
150
180
220
270
330
390
Inductance
(μH)
0.11
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.62
0.68
0.82
0.91
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
Tolerance
±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
Q
min.
25
20
20
20
20
20
20
20
20
20
30
20
20
30
15
15
15
15
15
15
15
15
15
15
15
15
10
16
16
16
16
16
16
15
Test Freq.
(MHz)
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
SRF
(MHz) min.
1200
700
900
600
550
550
550
420
350
300
640
300
300
500
280
280
250
120
110
70
60
55
45
40
36
33
30
37
30
23
20
19
18
16
DCR
(Ω) max.
0.05
0.18
0.18
0.20
0.25
0.38
0.35
0.35
0.45
0.45
0.45
0.60
0.55
0.55
0.80
0.90
1.05
1.00
1.10
1.20
1.50
1.75
2.10
2.30
2.70
3.30
4.50
2.80
3.80
4.48
6.30
6.85
7.60
8.20
IDC
(mA) max.
2000
1100
1100
800
700
700
650
600
600
550
980
500
500
900
450
400
350
350
320
320
300
300
200
250
200
180
180
220
200
180
160
140
120
100
Color
Code
White
Violet
Gray
Black
Brown
Red
Orange
Yellow
Green
Blue
Brown
Violet
Gray
Yellow
White
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
www.viking.com.tw
For detail questions, contact : sales@viking.com.tw
4
Edition : REV.B9
Revision: 28-Nov-2012
NL03, NL05, NL08, NL10, NL12, NL20
Wire Wound Chip Inductor (Ferrite)
NL08 Wire Wound Chip Inductors (Ferrite / Open Type) / Standard Type
Codes
R12
R18
R20
R22
R27
R33
R39
R47
R56
R62
R68
R75
R82
R91
1R0
1R2
1R5
1R8
2R2
2R7
3R3
3R9
4R7
5R6
6R8
8R2
100
120
150
180
220
270
330
390
470
560
680
820
101
Inductance
(μH)
0.12
0.18
0.20
0.22
0.27
0.33
0.39
0.47
0.56
0.62
0.68
0.75
0.82
0.91
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
Tolerance
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
±5, ±10%
Q
min.
26
30
30
27
29
30
30
30
30
30
30
30
30
30
25
25
25
25
25
25
25
25
25
25
25
25
20
15
15
15
15
15
15
15
14
14
14
14
8
Test Freq.
(MHz)
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
1
SRF
(MHz) min.
800
600
735
600
425
400
375
350
325
460
300
420
260
400
245
230
182
135
105
70
55
48
43
42
39
36
33
28
24
20
18
17
16
15
13
10
8
8
7
DCR
(Ω) max.
0.30
0.30
0.30
0.40
0.42
0.42
0.45
0.50
0.55
0.55
0.55
0.65
0.65
0.65
0.60
0.74
0.85
0.92
1.10
1.22
1.37
1.66
1.68
1.75
1.85
2.00
2.32
2.99
3.42
4.65
5.12
5.76
6.44
6.85
9.94
10.7
12.8
18.3
19.6
IDC
(mA) max.
1000
960
960
880
900
900
700
900
850
900
800
880
700
840
600
600
550
500
500
350
350
310
300
300
300
250
250
200
200
180
180
160
120
120
110
90
90
80
120
Brown
Brown
Red
Red
Red
Orange
Orange
Yellow
Green
Blue
Blue
Violet
Gray
White
Brown
Brown
Brown
Brown
Red
Red
Orange
Orange
Yellow
Green
Blue
Gray
Brown
Brown
Brown
Brown
Red
Red
Orange
Orange
Yellow
Green
Blue
Gray
Brown
Color
Code
Red
Gray
Black
Red
Violet
Orange
White
Violet
Blue
Red
Gray
Green
Red
Brown
Black
Red
Green
Gray
Red
Violet
Orange
White
Violet
Blue
Gray
Red
Black
Red
Green
Gray
Red
Violet
Orange
White
Violet
Blue
Gray
Red
Black
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Orange
Orange
Orange
Orange
Orange
Orange
Orange
Orange
Orange
Orange
Orange
Orange
Yellow
www.viking.com.tw
For detail questions, contact : sales@viking.com.tw
5
Edition : REV.B9
Revision: 28-Nov-2012
京公网安备 11010802033920号
EEWORLD
