Precision SMA Female to TNC Male Adapter
TECHNICAL DATA SHEET
Precision SMA Female to TNC Male Adapter
Configuration
Connector 1
Impedance 1
Connector Specification 1
Connector 2
Impedance 2
Connector Specification 2
Adapter Design
Body Style
SMA Female
50 Ohms
MIL-C-39012
TNC Male
50 Ohms
MIL-C-39012
Precision
Straight
PE9440
Electrical Specifications
Frequency Range, GHz
Maximum VSWR
DC to 18
1.25:1
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.52 [38.61]
0.625 [15.88]
Connector 1
Type
Connector 2
Type
Hex Size, in
SMA Female
TNC Male
5/8
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes

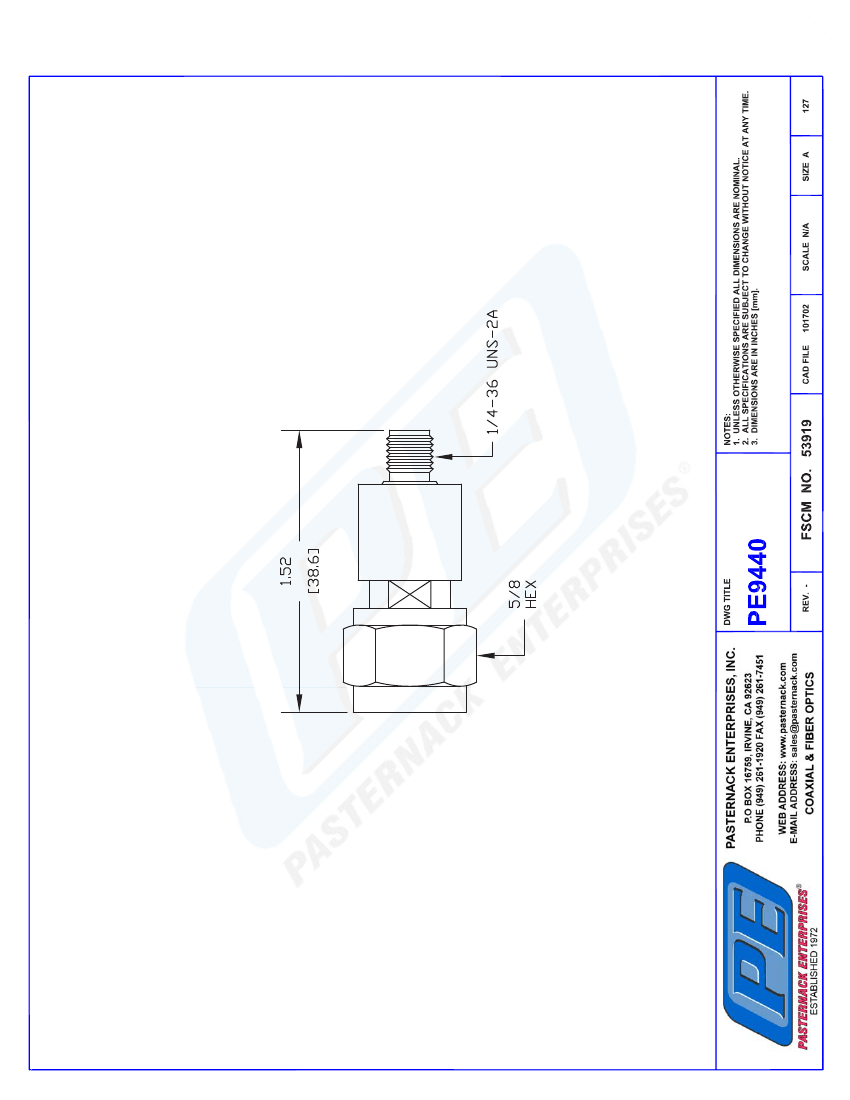

Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/sma-female-tnc-male-straight-adapter-pe9440-p.aspx
Precision SMA Female to TNC Male Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
PE9440 REV
1
