HC49SFWA12000H0QSWZZ: DescriptionParallel - Fundamental Quartz Crystal, 12MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, RESISTANCE WELDED, METAL PACKAGE-2; CategoryPassive components Crystal/resonator; File Size78KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric Compare View All

HC49SFWA12000H0QSWZZ Overview

Parallel - Fundamental Quartz Crystal, 12MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, RESISTANCE WELDED, METAL PACKAGE-2

HC49SFWA12000H0QSWZZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kyocera
package instruction	ROHS COMPLIANT, HERMETIC SEALED, RESISTANCE WELDED, METAL PACKAGE-2
Reach Compliance Code	compliant
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.01%
frequency tolerance	200 ppm
load capacitance	12 pF
Manufacturer's serial number	HC49SFWA
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	12 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
physical size	L10.8XB4.4XH3.3 (mm)/L0.425XB0.173XH0.13 (inch)
Series resistance	70 Ω
surface mount	NO

Preview

Download Datasheet

View All

Crystal Units

Leaded Type

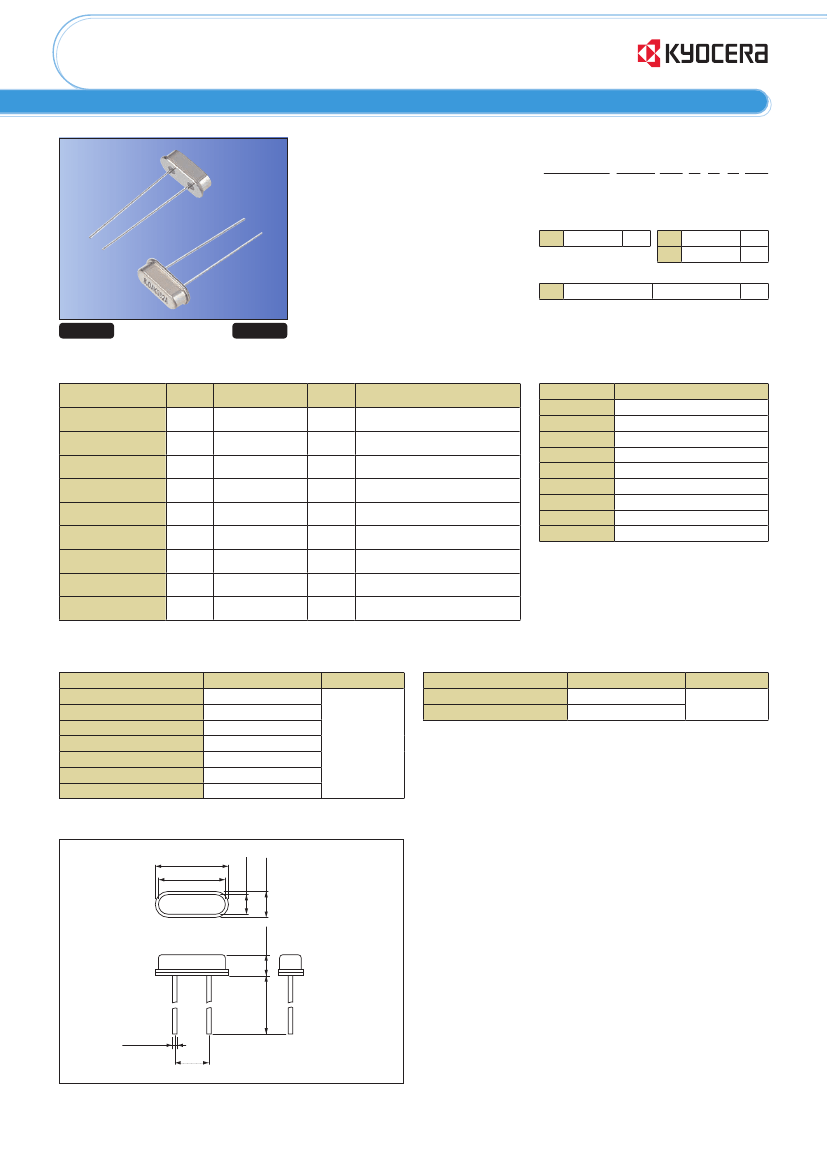

HC49SFWA (HC-49/ U-S)

for Automotive

Features

• Crystal unit for automotive electronics

• Metal package, leaded type

• A resistance weld hermetic sealed type

• Suitable for high density assembly and

mass production

• AEC-Q200 certiﬁed

How to Order

HC49SFWA 04000

□□ □ □ □ □□

①

②

③ ④⑤⑥ ⑦

①

Series

③

Load Capacitance

H0

12 pF

Std.

②

Frequency

④

Frequency Stability

P

Q

±50×10

−6

—

±100×10

−6

Std.

Applications

• ECU

⑤

Operating Temp. Range

⑥

Frequency Temp. Stability

SW

−40

to

+125°C

±200×10

−6

⑦

Individual Speciﬁcation... Std.Spec. as “ZZ”

Pb Free

RoHS Compliant

Typical Frequencies and Part Numbers

Symbol

f

_nom

OT

CL

f

_tol

R1

DL

T

_use

T

_stg

f

_tem

Speciﬁcation

3200 to 20000

Fundamental

12

±100

Table 1

Table 2

−40

to

+125

−40

to

+150

±200

Units

kHz

―

pF

×10

−6

ohm

µW

°C

×10

−6

ref.@ 25°C over operating temperature range

@ 25°C

Remarks

Frequency (kHz)

4000.000

5000.000

6000.000

8000.000

10000.000

12000.000

16000.000

18000.000

20000.000

Standard Part Number

HC49SFWA04000H0QSWZZ

HC49SFWA05000H0QSWZZ

HC49SFWA06000H0QSWZZ

HC49SFWA08000H0QSWZZ

HC49SFWA10000H0QSWZZ

HC49SFWA12000H0QSWZZ

HC49SFWA16000H0QSWZZ

HC49SFWA18000H0QSWZZ

HC49SFWA20000H0QSWZZ

Speciﬁcations

Item

Frequency Range

Overtone Order

Load Capacitance

Frequency Stability

Motional Series Resistance

Drive Level

Operating Temp. Range

Storage Temp. Range

Frequency Temp. Characteristics

∗

Please contact us for other specifications.

Table1 Motional Series Resistance

Frequency Range

3200 to 3499kHz

3500 to 4099kHz

4100 to 4799kHz

4800 to 5999kHz

6000 to 11999kHz

12000 to 13499kHz

13500 to 20000kHz

Motional Series Resistance

300 max.

150 max.

120 max.

100 max.

90 max.

70 max.

50 max.

Units

Table2 Level of Drive

Frequency Range

3200 to 15999kHz

16000 to 20000kHz

Drive Level

10 (500 max.)

10 (300 max.)

Units

µW

ohm

Dimensions

½½½½½½½

½½½½½½½½

(Unit: mm)

½½½½½½½½½½

½½½½½½½½

½½½½

½½½½½½½

HC49SFWA12000H0QSWZZ Related Products

	HC49SFWA12000H0QSWZZ	HC49SFWA10000H0QSWZZ	HC49SFWA20000H0QSWZZ	HC49SFWA16000H0QSWZZ	HC49SFWA05000H0QSWZZ	HC49SFWA06000H0QSWZZ	HC49SFWA04000H0QSWZZ
Description	Parallel - Fundamental Quartz Crystal, 12MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, RESISTANCE WELDED, METAL PACKAGE-2	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 10 MHz, ROHS COMPLIANT, HERMETIC SEALED, RESISTANCE WELDED, METAL PACKAGE-2	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 20 MHz, ROHS COMPLIANT, HERMETIC SEALED, RESISTANCE WELDED, METAL PACKAGE-2	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 16 MHz, ROHS COMPLIANT, HERMETIC SEALED, RESISTANCE WELDED, METAL PACKAGE-2	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 5 MHz, ROHS COMPLIANT, HERMETIC SEALED, RESISTANCE WELDED, METAL PACKAGE-2	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 6 MHz, ROHS COMPLIANT, HERMETIC SEALED, RESISTANCE WELDED, METAL PACKAGE-2	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 4 MHz, ROHS COMPLIANT, HERMETIC SEALED, RESISTANCE WELDED, METAL PACKAGE-2
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Kyocera	Kyocera	Kyocera	Kyocera	Kyocera	Kyocera	Kyocera
Reach Compliance Code	compliant	compliant	compliant	compliant	unknown	unknown	unknown
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	10 µW	10 µW	10 µW	10 µW	10 µW	10 µW	10 µW
frequency stability	0.01%	0.01%	0.01%	0.01%	0.01%	0.01%	0.01%
frequency tolerance	200 ppm	200 ppm	200 ppm	200 ppm	200 ppm	200 ppm	200 ppm
load capacitance	12 pF	12 pF	12 pF	12 pF	12 pF	12 pF	12 pF
Manufacturer's serial number	HC49SFWA	HC49SFWA	HC49SFWA	HC49SFWA	HC49SFWA	HC49SFWA	HC49SFWA
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Nominal operating frequency	12 MHz	10 MHz	20 MHz	16 MHz	5 MHz	6 MHz	4 MHz
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
physical size	L10.8XB4.4XH3.3 (mm)/L0.425XB0.173XH0.13 (inch)	L10.8XB4.4XH3.3 (mm)/L0.425XB0.173XH0.13 (inch)	L10.8XB4.4XH3.3 (mm)/L0.425XB0.173XH0.13 (inch)	L10.8XB4.4XH3.3 (mm)/L0.425XB0.173XH0.13 (inch)	L10.8XB4.4XH3.3 (mm)/L0.425XB0.173XH0.13 (inch)	L10.8XB4.4XH3.3 (mm)/L0.425XB0.173XH0.13 (inch)	L10.8XB4.4XH3.3 (mm)/L0.425XB0.173XH0.13 (inch)
Series resistance	70 Ω	90 Ω	50 Ω	50 Ω	100 Ω	90 Ω	150 Ω
surface mount	NO	NO	NO	NO	NO	NO	NO
package instruction	ROHS COMPLIANT, HERMETIC SEALED, RESISTANCE WELDED, METAL PACKAGE-2	ROHS COMPLIANT, HERMETIC SEALED, RESISTANCE WELDED, METAL PACKAGE-2	ROHS COMPLIANT, HERMETIC SEALED, RESISTANCE WELDED, METAL PACKAGE-2	ROHS COMPLIANT, HERMETIC SEALED, RESISTANCE WELDED, METAL PACKAGE-2	-	-	-
