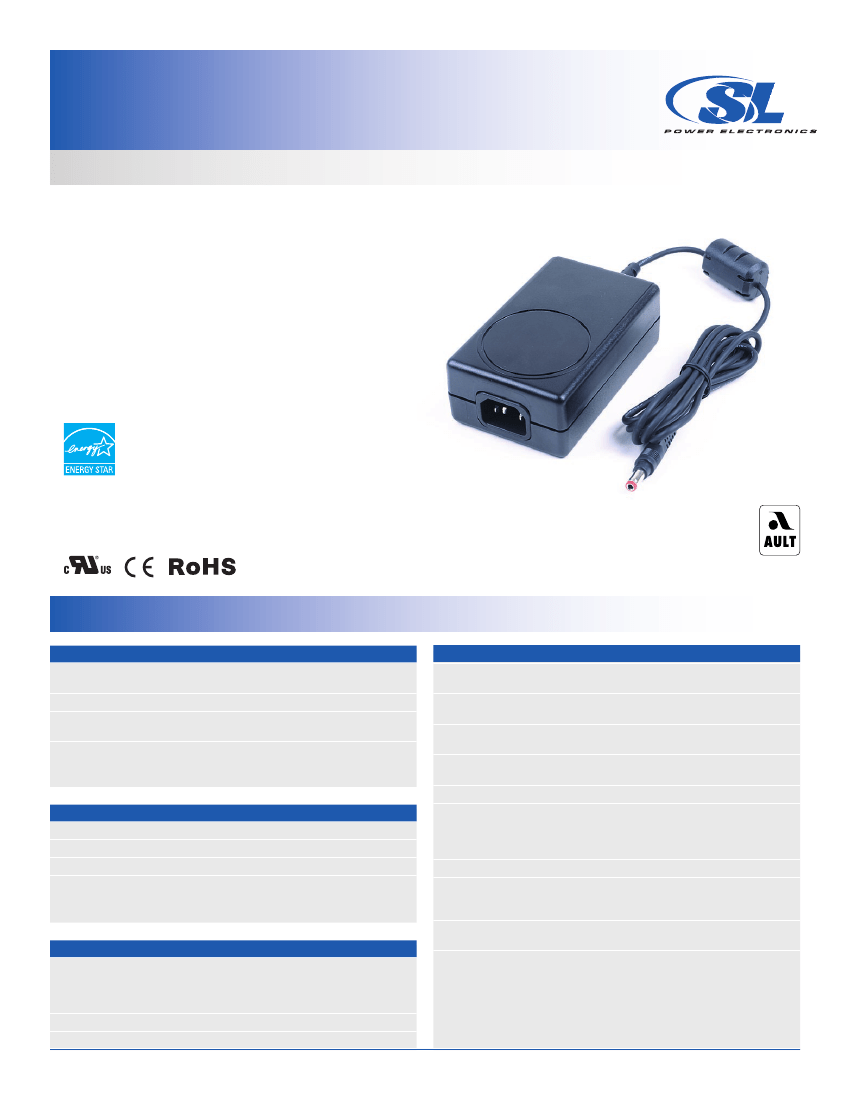

MW152
Universal 50 Watt Series
Medical / Switch Mode Power Supply
• 100-240 VAC Universal Input
• Desktop Style
• Single Output to 50W
• Six Models Available; 5V to 24V
• Regulated Output with Low Ripple
• Impact Resistant Polycarbonate Enclosure
• Modified and Custom Designs
• No Load Power Consumption < 0.75W
• Meets ENERGY STAR Requirements
see reverse side for details
3 Year Warranty
International Safety Standard Approvals
Specifications
Output Specifications
Line and Load
Voltage Regulation
Ripple
Transient Response
Protection
Excluding cord
+/-1%
1% Vp-p max.
0.5ms for 50%
Load change Typical
Over-current Protection
(Hiccup)
Short Circuit Protection
General Specifications
Topology
Efficiency
Hold-up Time
Dielectric Withstand
Storage Temp
Approvals and
Safety Standards
MTBF
Case and Dimension
Case Material
Cord and Connectors
5V and 9V
12V to 24V
@120VAC
@240VAC
Switching-Fixed
Frequency Flyback
70% min.
≥
84%
18ms min.
80ms min.
3,000VAC, 4,250VDC
Primary-Secondary
-30° C to 85° C
UL60601-1,
IEC/EN60601-1
EMC : EN55024 /
EN60601-1-2
100,000 Calculated Hours
LP6
4.20L x 2.60W x 1.46H (in)
107.0L x 66.0W x 37.0H (mm)
Black 94V0
Polycarbonate
6ft. 2 Conductor, 18AWG,
AULT#3 Connector.
Other connectors are
also available.
Input Specifications
Input Voltage Range
Line Frequency
Input Current
Protection
Universal input
90VAC Input
100-240VAC -10%, +10%
47-63Hz
1.2A max.
Internal Primary
Current Fuse,
Inrush Limiting
Environmental Specifications
Thermal Performance
Relative Humidity
Altitude
Operating temperature
full load, no derating
convectional cooling
Non vented case
Non-condensing
0° C to 40° C
5% to 95%
0-10,000 feet
SL Power Electronics Corp
•
6050 King Drive
•
Ventura CA, 93003
•
Phone:805.486.4565
•
Fax:805.487.8911
•
Email:info@slpower.com
•
www.slpower.com
MW152
Universal 50 Watt Series
Medical / Switch Mode Power Supply
Output
Voltage
5 V
9 V
12 V
15 V
18 V
24 V
For the most current data and application support visit www.slpower.com
Output Currents
Min
0.00 A
0.00 A
0.00 A
0.00 A
0.00 A
0.00 A
Ault Part Number
MW152KA05XX*
MW152KA09XX*
MW152KA12XX
MW152KA15XX
MW152KA18XX
MW152KA24XX
Max
6.00 A
5.00 A
4.20 A
3.33 A
2.80 A
2.00 A
Max
Watts
30.0 W
45.0 W
50.4 W
50.0 W
50.4 W
48.0 W
Ripple
Vp-p max.
50 mV
90 mV
120 mV
150 mV
180 mV
240 mV
Ault Part Number Key
MW152
Product
Family
Name
K
Manufacturing
Location
A
Design
Revision
Changes
05
Voltage
DC
XX
Connector
Number
Pin Connections
Input Configuration
IEC320
w/ground
C14
(F)
IEC320
w/o ground
C18
(Q)
N. America/
Japan
(B)
Europe
(M)
United
Kingdom
(G)
Australian
(E)
Shaver
C8
(N)
Pinout Code
Description
Suggested Mating
Center contact: positive
Switchcraft 760 plug or equivalent
Switchcraft 712A jack or equivalent
Specify the Input Configuration Code in your order.
Other Connectors are available by special order
Energy Star Specifications
Power Supplies that are single voltage external AC to DC and AC to AC
included with other retail products and single voltage external AC to DC
or AC to AC power supplies sold separately; and consumer audio and video
equipment, which includes compact audio products, DVD players and
recorders as well as television adapters. (Please refer to the reverse side of
data sheet for specifications and marking protocol.)
Energy-Efficiency Criteria for Active Mode
To be eligible for ENERGY STAR qualification, an external power supply
must meet or exceed a minimum efficiency for Active Mode, which varies
based on the model’s nameplate output power. The table below outlines
the equations for determining minimum average efficiency.
Nameplate Output Power
0 to ≤ 1 watt
> 1 to ≤ 49 watts
> 49 watts
Minimum Average Efficiency in Active Mode
≥ 0.49 * Pno
≥ [0.09 * Ln (Nameplate Output)] + 0.49
≥ 0.84
Energy Consumption Criteria for No Load
The second half of the ENERGY STAR specification is the No-Load power
requirement, which specifies the maximum AC power that may be used by
a qualifying external power supply in the No-Load condition. Maximum
power consumption levels for No-Load Mode are provided below.
Nameplate Output Power
0 to < 10 watts
≥ 10 to ≤ 250 watts
Maximum Power in No-Load
≤ 0.5 watts
≤ 0.75 watts
*Does not meet Energy Star requirements
SL Power Electronics Corp
•
6050 King Drive
•
Ventura CA, 93003
•
Phone:805.486.4565
•
Fax:805.487.8911
•
Email:info@slpower.com
•
www.slpower.com
Data Sheet © 2006 SL Power Electronics Corp. The information and specifications contained in this data sheet are believed to be correct at time of publication.
However, SL Power accepts no responsibility for consequences arising from reproduction errors or inaccuracies. Specifications are subject to change without notice.
Rev.9/22/06
