Zero Biased Detector With 50 Ohm SMA Male to SMA
Female Video Out Operating From 10 MHz to 2 GHz
TECHNICAL DATA SHEET
PE8010
Zero Biased Detector With 50 Ohm SMA Male to SMA Female Video Out Operating From 10 MHz to
2 GHz
Configuration
Bias Type
Detector Polarity
Body Style
RF Input Connector
RF Input Impedance
Video Output Connector
Zero Biased Detector
Negative
Straight
SMA Male
50 Ohms
SMA Female
Electrical Specifications
Frequency Range, GHz
Voltage Sensitivity, mV/mW
Tangential Signal Sensitivity
Maximum VSWR
Flatness, dB
Maximum Input Power, Watts
Video Capacitance, pF
0.01 to 2
500
-52
1.2:1
0.2
23
470
Mechanical Specifications
Temperature
Operating Range,deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
0 to +90
1.21 [30.73]
0.31 [7.87]
RF Input
Type
Video Output
Type
SMA Male
SMA Female
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Zero Biased Detector With 50 Ohm SMA Male to SMA Female Video Out Operating From
10 MHz to 2 GHz PE8010
PE8010 REV
1
Zero Biased Detector With 50 Ohm SMA Male to SMA
Female Video Out Operating From 10 MHz to 2 GHz
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
Zero Biased Detector With 50 Ohm SMA Male to SMA Female Video Out Operating From 10 MHz to 2 GHz from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products main-
tain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Zero Biased Detector With 50 Ohm SMA Male to SMA Female Video Out Operating From 10 MHz
to 2 GHz PE8010
URL:
http://www.pasternack.com/50-ohm-sma-zero-biased-detector-negative-10-mhz-2000-mhz-pe8010-p.aspx
PE8010
PE8010 REV
2
PE8010

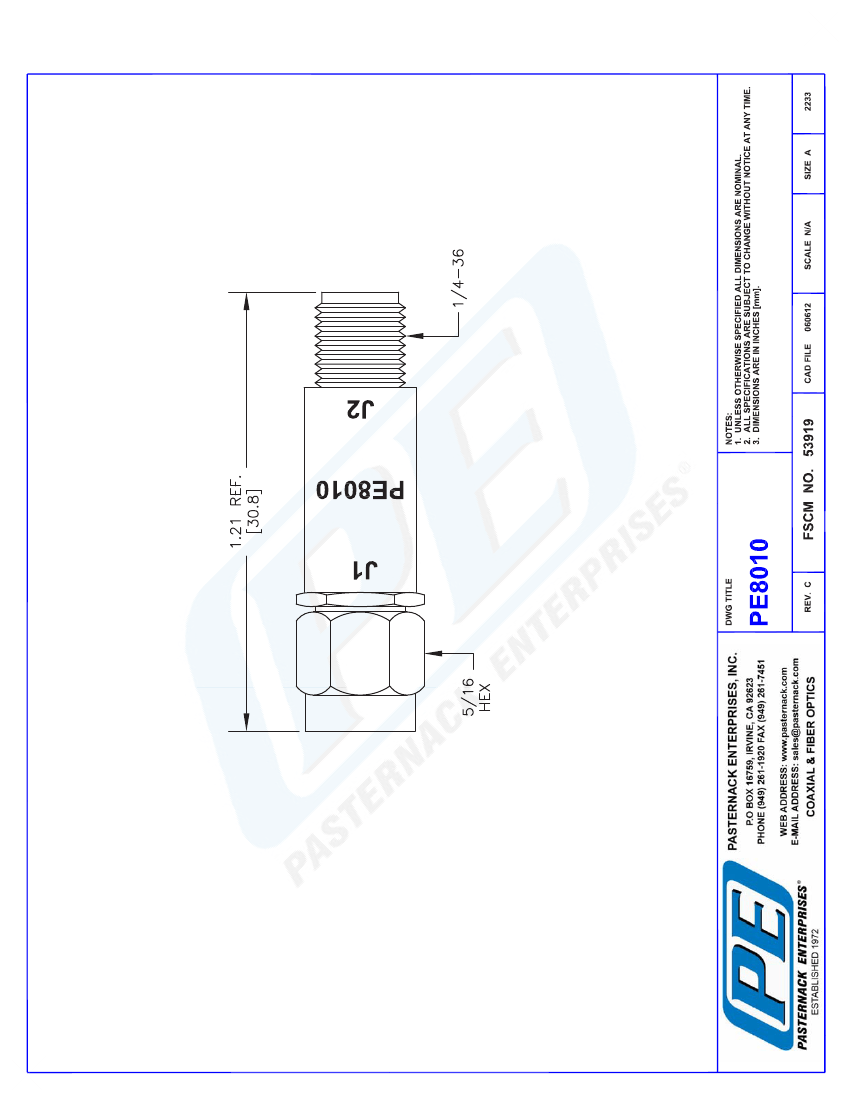

CAD Drawing
Zero Biased Detector With 50 Ohm SMA Male to SMA Female
Video Out Operating From 10 MHz to 2 GHz
© 2013 Pasternack Enterprises All Rights Reserved
PE8010 REV
