N Male to SMB Jack Adapter
TECHNICAL DATA SHEET
N Male to SMB Jack Adapter
Configuration
Connector 1
Impedance 1
Connector Specification 1
Connector 2
Impedance 2
Adapter Design
Body Style
N Male
50 Ohms
MIL-STD-348A
SMB Jack
50 Ohms
Standard
Straight
PE9313

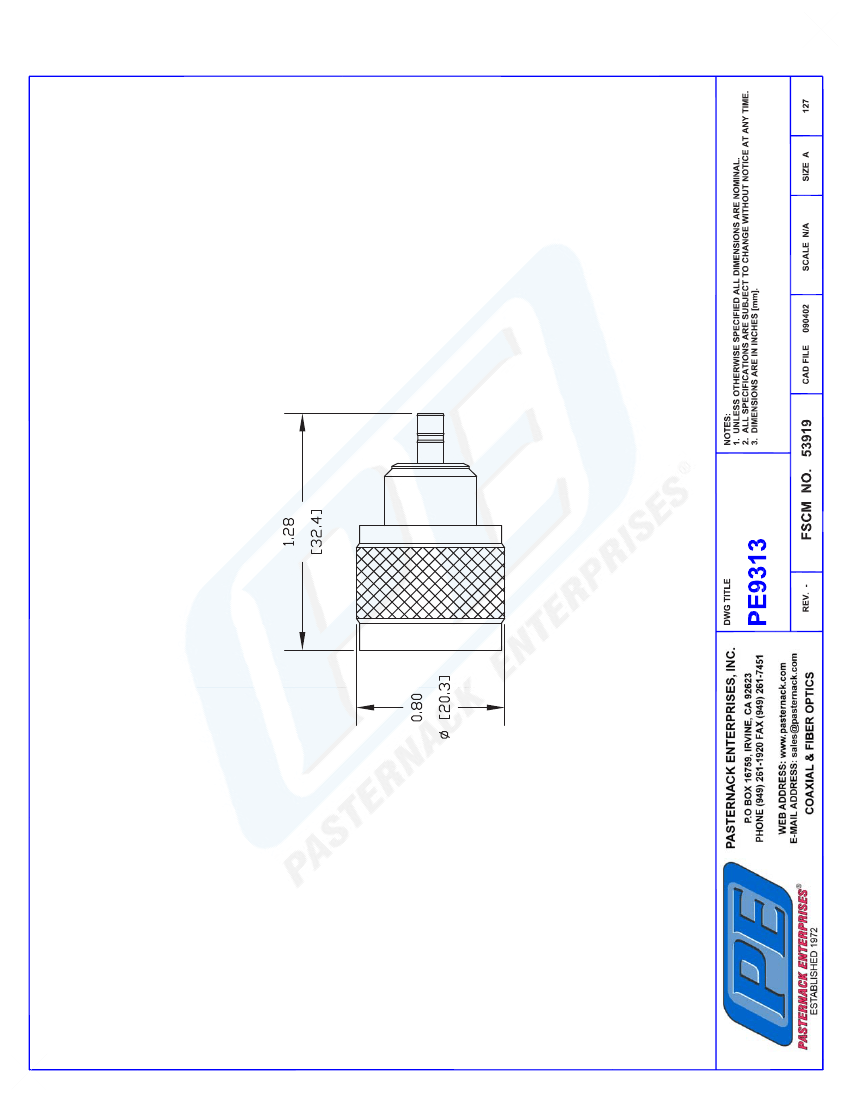

Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.275 [32.39]
0.8 [20.32]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
N Male
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
SMB Jack
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/n-male-smb-jack-straight-adapter-pe9313-p.aspx
N Male to SMB Jack Adapter from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF,
microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the industry.
PE9313 REV
1
