Precision 3.5mm Male to 3.5mm Male Adapter
TECHNICAL DATA SHEET
Precision 3.5mm Male to 3.5mm Male Adapter
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Adapter Design
Body Style
3.5mm Male
50 Ohms
3.5mm Male
50 Ohms
Precision
Straight
PE9330
Electrical Specifications
Frequency Range, GHz
Maximum VSWR
Maximum Insertion Loss, dB
DC to 34.5
1.25:1
0.29
Mechanical Specifications
Size

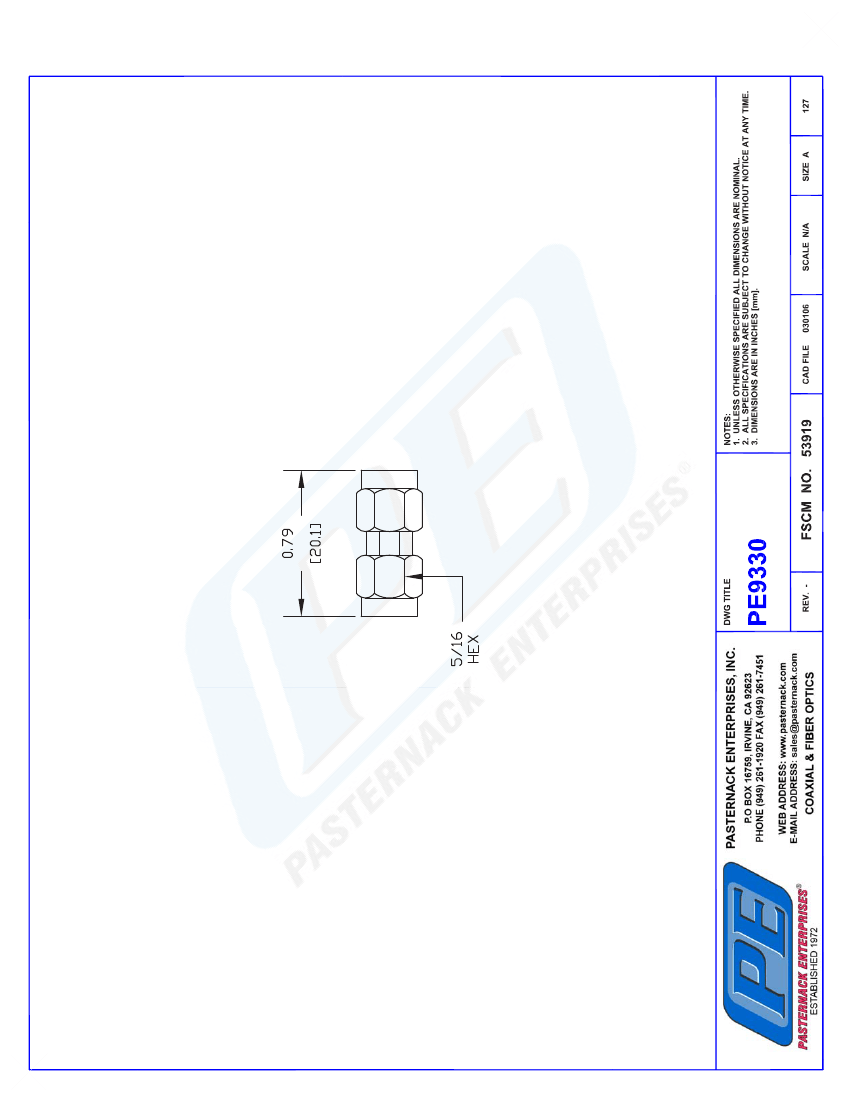

Length, in [mm]
Width/Dia., in [mm]
.
0.79 [20.07]
0.312 [7.92]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Hex Size, in
Torque, in-lbs [Nm]
Body Material and Plating
Body Plating Specification
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Hex Size, in
Torque, in-lbs [Nm]
Body Material and Plating
Body Plating Specification
Dielectric Type
3.5mm Male
Beryllium Copper, Gold
MIL-G-45204, Type II, Class 1
Passivated Stainless Steel
ASTM A380
5/16
8 [0.9]
Passivated Stainless Steel
ASTM A380
Rexolite
3.5mm Male
Beryllium Copper, Gold
MIL-G-45204, Type II, Class 1
Passivated Stainless Steel
ASTM A380
5/16
8 [0.9]
Passivated Stainless Steel
ASTM A380
Rexolite
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Precision 3.5mm Male to 3.5mm Male Adapter PE9330
PE9330 REV
1
Precision 3.5mm Male to 3.5mm Male Adapter
TECHNICAL DATA SHEET
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
PE9330
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/3.5mm-male-3.5mm-male-straight-adapter-pe9330-p.aspx
Precision 3.5mm Male to 3.5mm Male Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
PE9330 REV
2
