SMA Male to SMA Female Bulkhead Precision Cable
72 Inch Length Using 150 Series Coax, RoHS
TECHNICAL DATA SHEET
PE35475-72
SMA Male to SMA Female Bulkhead Precision Cable 72 Inch Length Using 150 Series Coax, RoHS
Configuration
Connector 1
Connector 2
Cable Type
SMA Male
SMA Female Bulkhead
150 Series
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Velocity of Propagation, %
RF Shielding, dB
Maximum Operating Voltage, Vrms
Electrical Specification Notes:
DC to 26.5
50
1.4:1
69.5
90
1,900
Short lengths up to 24” long may exhibit VSWR
measurements up to 9% higher.
Mechanical Specifications
Cable Assembly
Cable Type
Temperature
Temperature Operating Range, deg C
Size
Length, in [cm]
.
150 Series
-50 to +205
72 [182.88]
1 [25.4]
One Time Minimum Bend Radius, in [mm]
Cable
Center Conductor Type
Cable Inner Conductor
No of Shields
Dielectric Type
Jacket Material
Jacket Diameter, in [mm]
Solid
Copper Clad Steel, Silver
1
PTFE
FEP
0.15 [3.81]
Connector 1
Type
Configuration
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
SMA Male
Straight
Copper Clad Steel, Silver
Passivated Stainless Steel
5/16
8 [0.9]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male to SMA Female Bulkhead Precision Cable 72 Inch Length Using 150 Series Coax,
RoHS PE35475-72
PE35475-72 REV
1
SMA Male to SMA Female Bulkhead Precision Cable
72 Inch Length Using 150 Series Coax, RoHS
TECHNICAL DATA SHEET
Body Material and Plating
Dielectric Type
Passivated Stainless Steel
PTFE
PE35475-72
Connector 2
Type
Configuration
Mount Method
Inner Conductor Material and Plating
Body Material and Plating
Dielectric Type
SMA Female Bulkhead
Straight
Bulkhead
Gold
Passivated Stainless Steel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
SMA Male to SMA Female Bulkhead Precision Cable 72 Inch Length Using 150 Series Coax, RoHS from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male to SMA Female Bulkhead Precision Cable 72 Inch Length Using 150 Series Coax,
RoHS PE35475-72
URL:
http://www.pasternack.com/sma-male-sma-female-150-series-cable-assembly-pe35475-72-p.aspx
PE35475-72 REV
2
© 2013 Pasternack Enterprises All Rights Reserved
PE-LL150P
PE35475-72

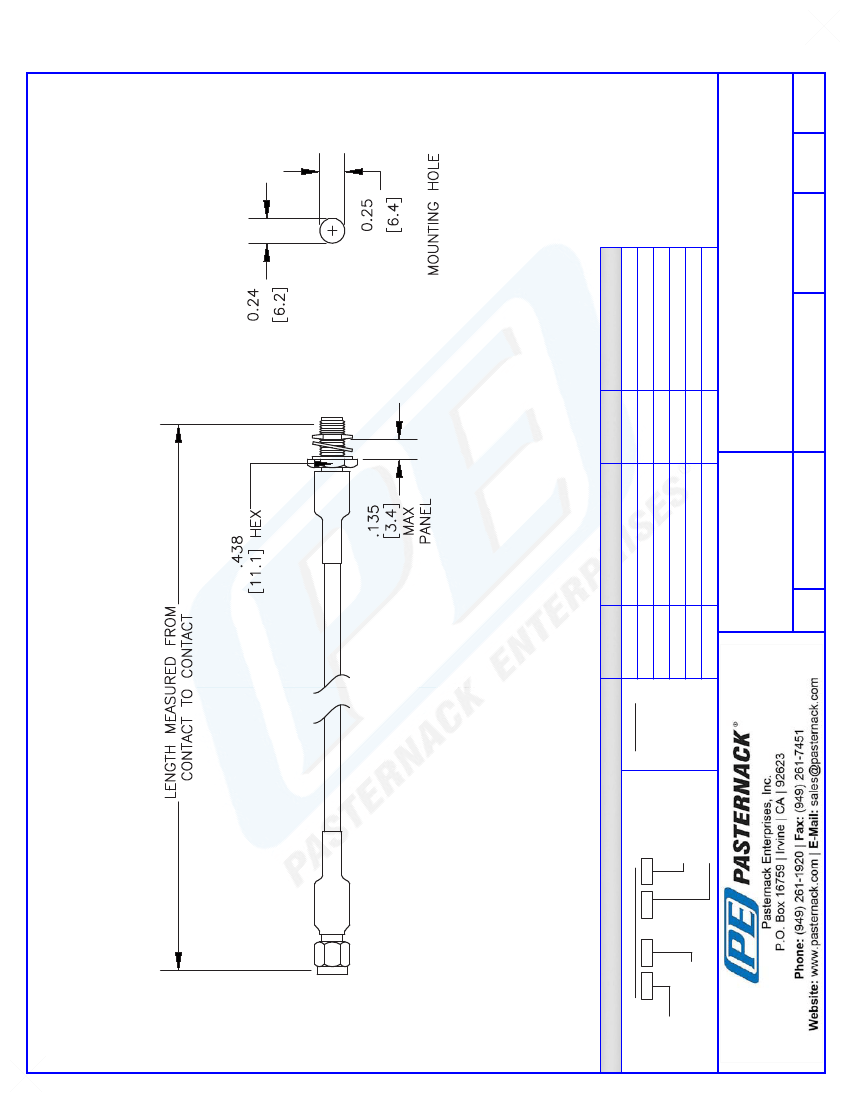

CAD Drawing
SMA Male to SMA Female Bulkhead Precision Cable
72 Inch Length Using 150 Series Coax, RoHS
PE35475-72 REV
SMA
MALE
SMA FEMALE
BULKHEAD
Part # Ext.
Part Number Configuration
Examples
-12
yy
-
xx
uu
-24
PE3 zzz
PE3000LF-100
-36
PE3000-100
00 - 99999
CM = Centimeters PE3000LF-100CM
-48
LF = RoHS Compliant
< Blank > = Inches
-60
< Blank > = Standard
PE3000-100CM
Length
-xx
Note: LF applies only to RF cables
How To Order
Length In Inches
12''
24"
36"
48"
60"
Custom Length
DWG TITLE
Part # Ext.
-25CM
-50CM
-75CM
-100CM
-125CM
-xxCM
Length In Centimeters
25Cm
50Cm
75Cm
100Cm
125Cm
Custom Length
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. LENGTH TOLERANCE IS ± 1.5% OR 3/8", WHICHEVER IS GREATER.
PE35475
REV. A
FSCM NO. 53919
CAD FILE
021508-A
SCALE N/A
SIZE A
2233
3
