18 GHz Flexible
Cable Assemblies
Product Features
•
•
•
•
18 GHz SMA, N & TNC Connectors
Reinforced coaxial interface
1 inch bend radius
Double Shielded coax cable.
Description

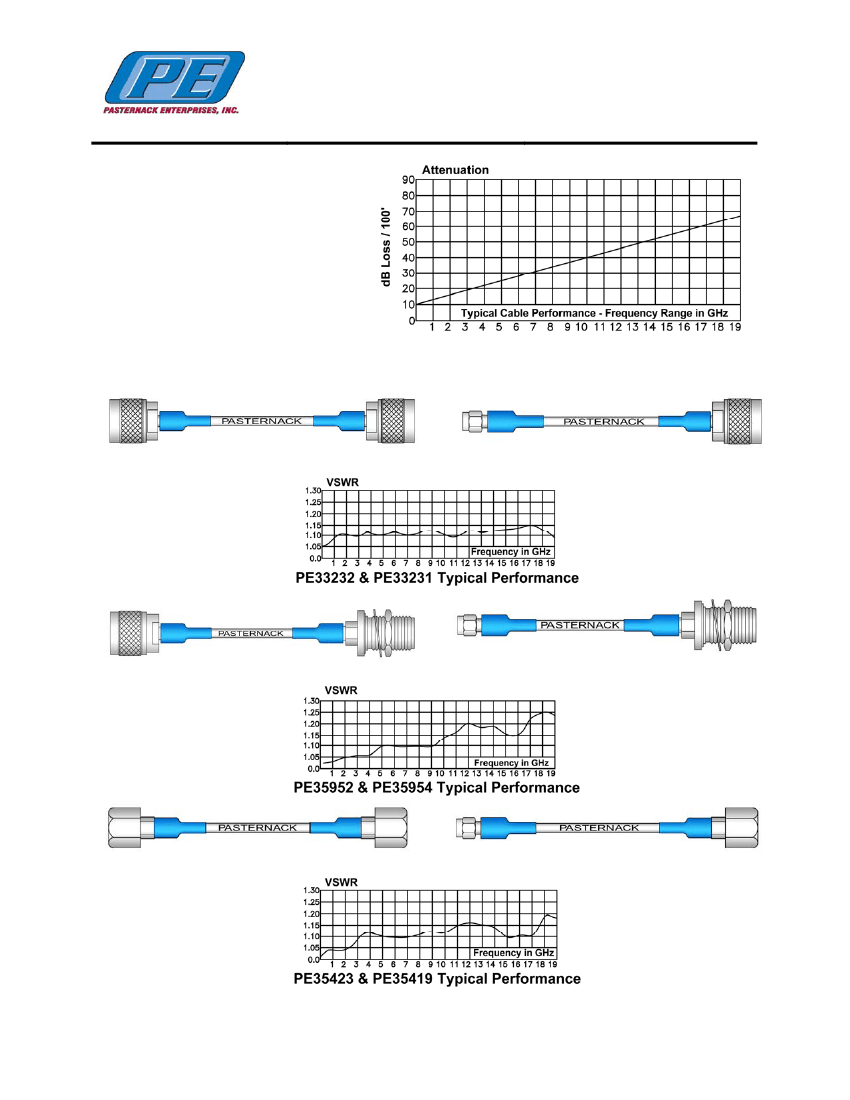

The 18 GHz Flexible Cable Assembly series offer precision N & TNC connectors that operate to 18 GHz,
and an SMA connector with excellent performance to 26.5 GHz. The coax provides excellent isolation
and low loss performance to 26.5 GHz.
PE33232 – N Male to N Male
PE33231 – SMA Male to N Male
PE35952 – N Male to N Female Bulkhead
PE35954 – SMA Male to N Female Bulkhead
PE35423 – TNC Male to TNC Male
PE35419 – SMA Male to TNC Male
(1)
Pasternack reserves the right to change specifications or information without notice.
www.pasternack.com
1 of 2
PO Box 16759
Irvine, CA 92623-6759
Toll Free: (866) 727-8376
Direct: +1 (949) 261-1920
FAX: +1 (949) 261-7451
Email: techsupport@pasternack.com
18 GHz Flexible
Cable Assemblies
Electrical Specifications
Parameter
Impedance
Frequency
Insertion Loss
Return Loss
Cutoff Frequency
Max Operating Voltage
Nominal Capacitance
Velocity of Propagation
RF Shielding
Units
ohms
GHz
dB
dB
GHz
V
pF / ft.
%
dB
(1)
Value
50Ω
18
<0.7
>15dB
35
1900
29.4
69.5
>90
(1)
Description
At 18 GHz
RMS
Mechanical Specifications
Parameter
Minimum bend radius
Operating Temperature
Inner Conductor diameter
Dielectric diameter
Jacket diameter
Units
in.
F
in.
in.
in.
Value
1
-55º to +400º
0.036
0.116
0.150
Description
Silver plated Cu Clad Steel
PTFE
FEP
Standard Lengths
P/N
PE33232
PE33231
PE35952
PE35954
PE35423
PE35419
Conn 1
N - Male
SMA - Male
N - Male
SMA - Male
TNC - Male
SMA - Male
Conn 2
N - Male
N - Male
N - Blkhd Female
N - Blkhd Female
TNC - Male
TNC - Male
6
X
X
X
X
X
X
12
X
X
X
X
X
X
18
X
X
X
X
X
X
Length (inches)
24 30 36 48 60
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
72
X
X
X
X
X
X
120
Standard Lengths
Orders placed before 3:30 PM PST are available for same day shipping, subject to quantity limitations at
time of purchase.
Custom Lengths
Custom lengths and connector configurations are available. Orders placed before 3:30 PM PST will be
shipped within 3 business days, subject to material limitations at time of purchase.
Creating a Cable Assembly P/N
The cable assembly length is identified by its length in inches following the part number dash (-).
Part Number – length in inches
PExxxxx – xx
Example
The following example is a 96 inch PE33232 cable assembly.
PE33232-96
(1)
