Bulkhead SMB Plug to BNC Female Adapter
TECHNICAL DATA SHEET
Bulkhead SMB Plug to BNC Female Adapter
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Adapter Design
Body Style
Mount Method
SMB Plug
50 Ohms
BNC Female
50 Ohms
Standard
Straight
Bulkhead
PE9241

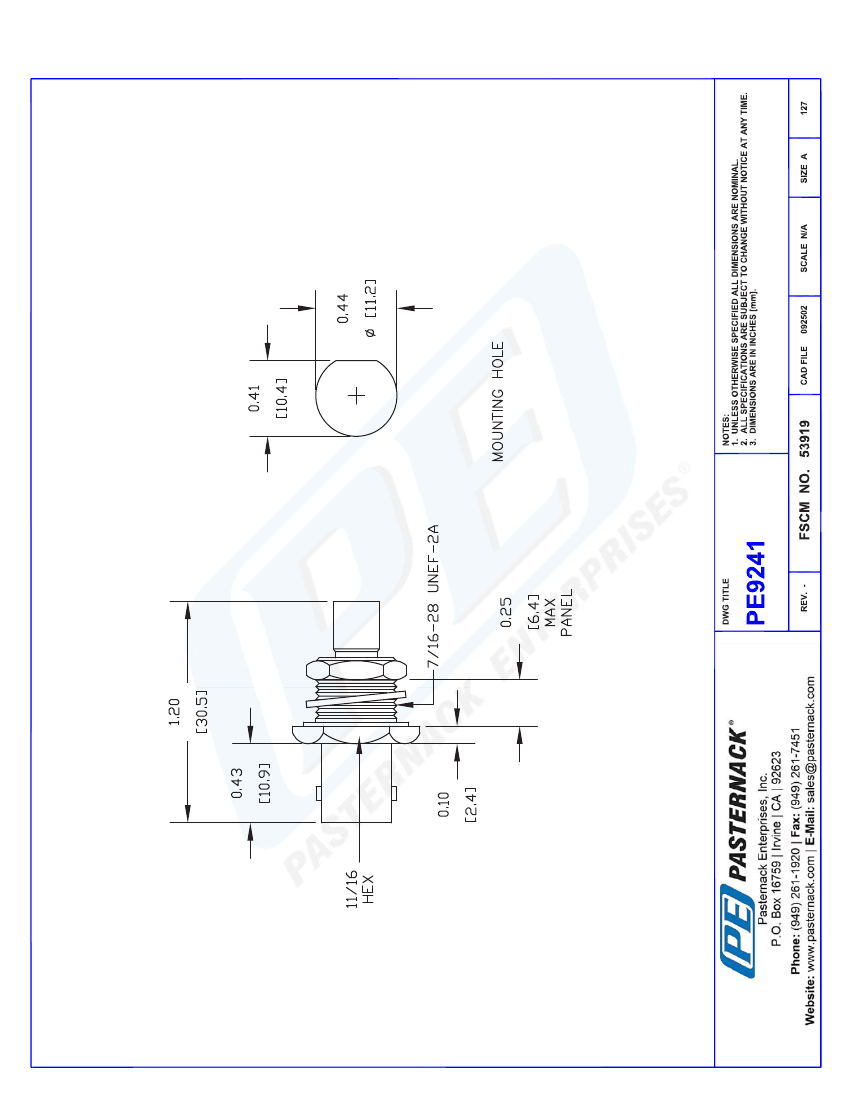

Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.2 [30.48]
0.688 [17.48]
Connector 1
Type
Inner Conductor Material and Plating
Body Material and Plating
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Body Material and Plating
Dielectric Type
SMB Plug
Brass, Gold
Brass, Nickel
Teflon
BNC Female
Brass, Gold
Brass, Nickel
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/smb-plug-bnc-female-straight-adapter-pe9241-p.aspx
Bulkhead SMB Plug to BNC Female Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.
PE9241 REV
1
