PE9249

Description
SHV Tee Adapter Jack-Plug-Jack
CategoryThe connector
File Size230KB,2 Pages
ManufacturerPasternack Enterprises
Websitehttps://www.pasternack.com/
Download Datasheet View All

PE9249 Overview

SHV Tee Adapter Jack-Plug-Jack

SHV Tee Adapter Jack-Plug-Jack
TECHNICAL DATA SHEET
SHV Tee Adapter Jack-Plug-Jack
Configuration
Connector 1
Connector 2
Connector 3
Adapter Design
Body Style
SHV Jack
SHV Plug
SHV Jack
Standard
Straight
PE9249
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.

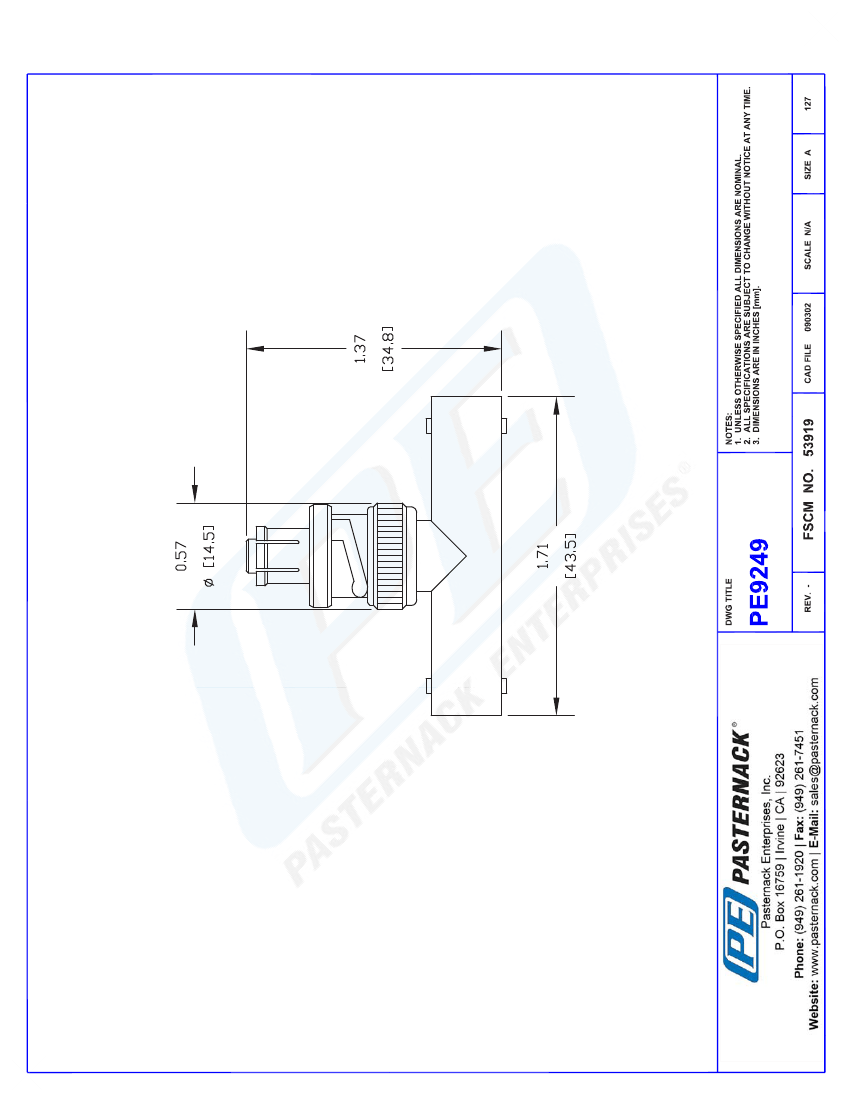

1.712 [43.48]
1.372 [34.85]
0.57 [14.48]
Connector 1
Type
Inner Conductor Material and Plating
Body Material and Plating
Connector 2
Type
Inner Conductor Material and Plating
Body Material and Plating
Connector 3
Type
Inner Conductor Material and Plating
Body Material and Plating
SHV Jack
Silver
Brass, Nickel
SHV Plug
Silver
Brass, Nickel
SHV Jack
Silver
Brass, Nickel
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/shv-jack-plug-jack-tee-adapter-pe9249-p.aspx
SHV Tee Adapter Jack-Plug-Jack from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
PE9249 REV
1
