N Female to TNC Male Right Angle Adapter
TECHNICAL DATA SHEET
N Female to TNC Male Right Angle Adapter
Configuration
Connector 1
Connector Specification 1
Connector 2
Connector Specification 2
Adapter Design
Body Style
N Female
MIL-STD-348A
TNC Male
MIL-STD-348A
Standard
Right Angle
PE9263
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 11
50
500
1,500
Mechanical Specifications
Temperature
Operating Range,deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-65 to +165
1.264 [32.11]
0.625 [15.88]
1.209 [30.71]
Teflon
N Female
Brass, Gold
100µ in. minimum
Brass, Nickel
TNC Male
Brass, Gold
Brass, Nickel
100µ in. minimum
Brass, Nickel
100µ in. minimum
Dielectric Type
Connector 1
Type
Inner Conductor Material and Plating
Coupling Nut Plating Specification
Body Material and Plating
Connector 2
Type
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Body Material and Plating
Body Plating Specification
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Female to TNC Male Right Angle Adapter PE9263
PE9263 REV
1
N Female to TNC Male Right Angle Adapter
TECHNICAL DATA SHEET

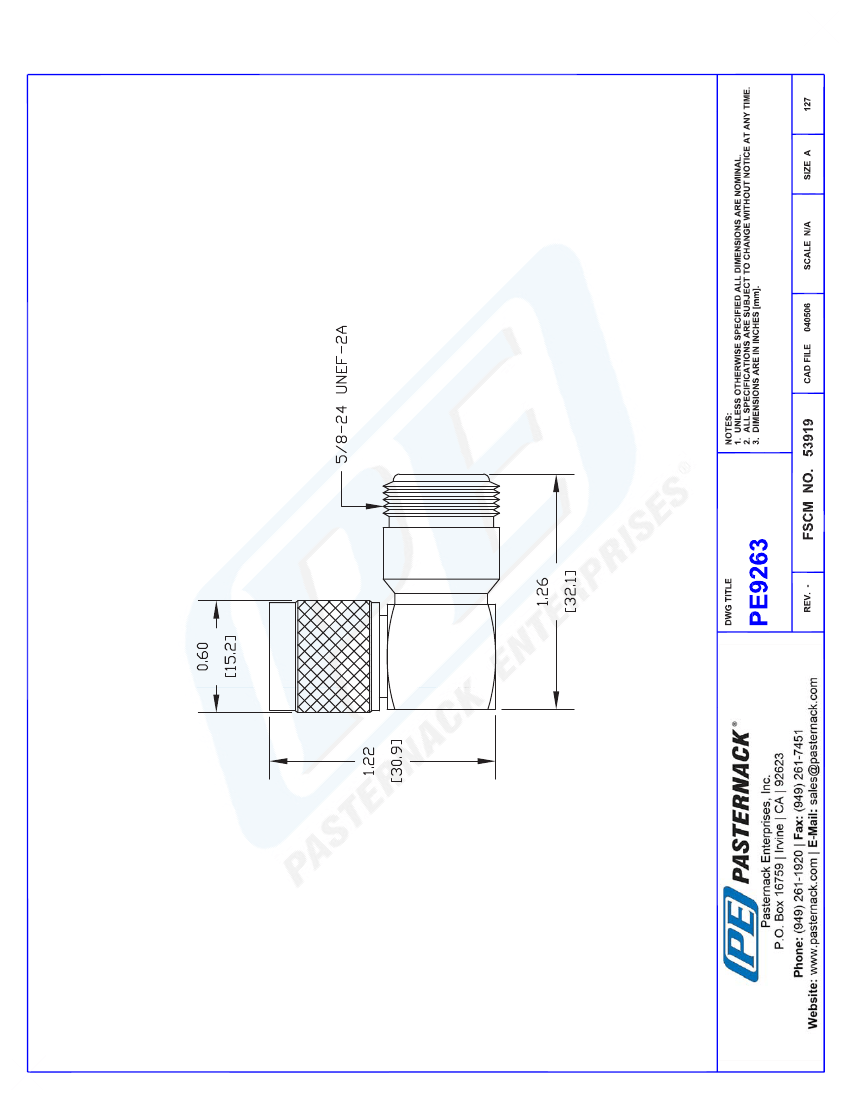

Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE9263
URL:
http://www.pasternack.com/n-female-tnc-male-right-angle-adapter-pe9263-p.aspx
N Female to TNC Male Right Angle Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
