PE9274: DescriptionSMA Female to SMA Female Radius Right Angle Adapter; CategoryThe connector; File Size242KB，3 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/

Download Datasheet View All

PE9274 Overview

SMA Female to SMA Female Radius Right Angle Adapter

Preview

Download Datasheet

View All

SMA Female to SMA Female Radius Right Angle Adapter

TECHNICAL DATA SHEET

SMA Female to SMA Female Radius Right Angle Adapter

Configuration

Connector 1

Impedance 1

Connector Specification 1

Connector 2

Impedance 2

Connector Specification 2

Adapter Design

Body Style

SMA Female

50 Ohms

MIL-STD-348

SMA Female

50 Ohms

MIL-STD-348

Standard

Radius Right Angle

PE9274

Electrical Specifications

Frequency Range, GHz

Maximum VSWR

DC to 18

1.25:1

Mechanical Specifications

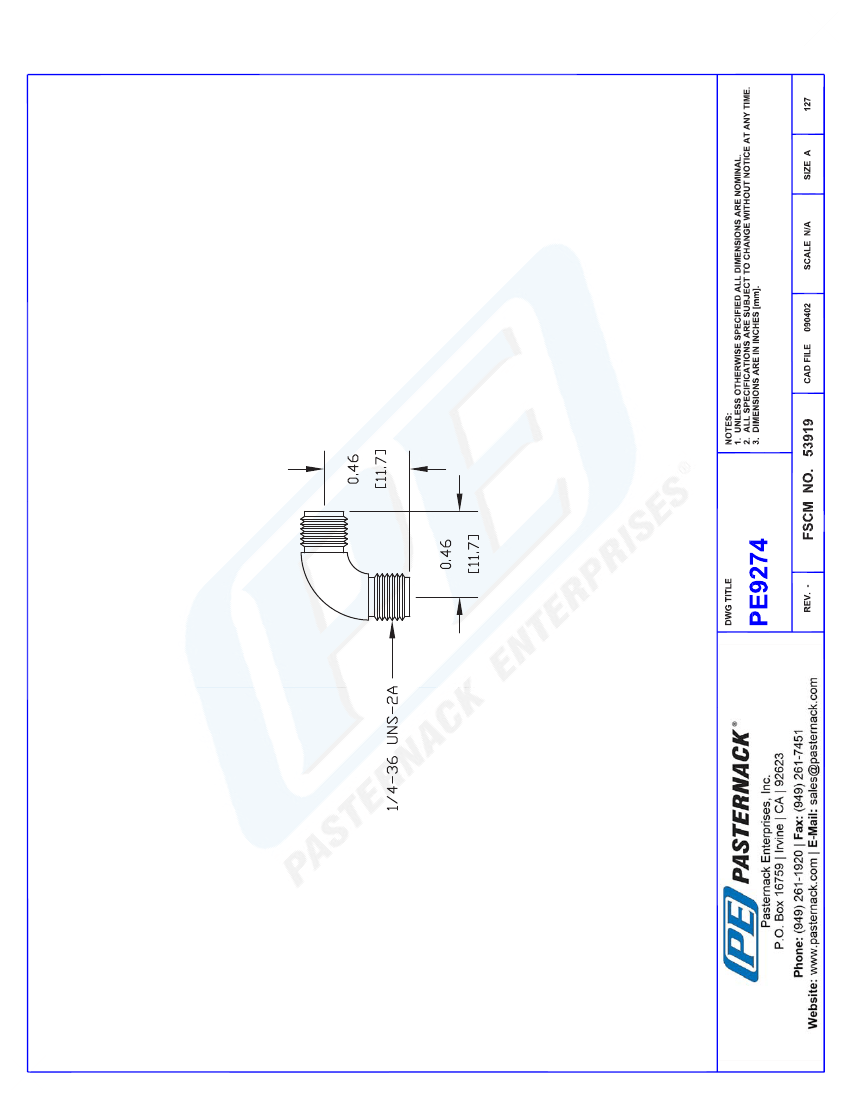

Size

Length, in [mm]

Width/Dia., in [mm]

0.585 [14.86]

Connector 1

Type

Inner Conductor Material and Plating

Inner Conductor Plating Specification

Body Material and Plating

Body Plating Specification

Dielectric Type

Connector 2

Type

Inner Conductor Material and Plating

Inner Conductor Plating Specification

Body Material and Plating

Body Plating Specification

Dielectric Type

SMA Female

Beryllium Copper, Gold

MIL-G-45204, Type II, Class 2

Passivated Stainless Steel

QQ-P-35

Teflon

SMA Female

Beryllium Copper, Gold

MIL-G-45204, Type II, Class 2

Passivated Stainless Steel

QQ-P-35

Teflon

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

SMA Female to SMA Female Radius Right Angle Adapter PE9274

PE9274 REV
