N Female to SC Male Adapter
TECHNICAL DATA SHEET
N Female to SC Male Adapter
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Adapter Design
Body Style
N Female
50 Ohms
SC Male
50 Ohms
Standard
Straight
PE9277

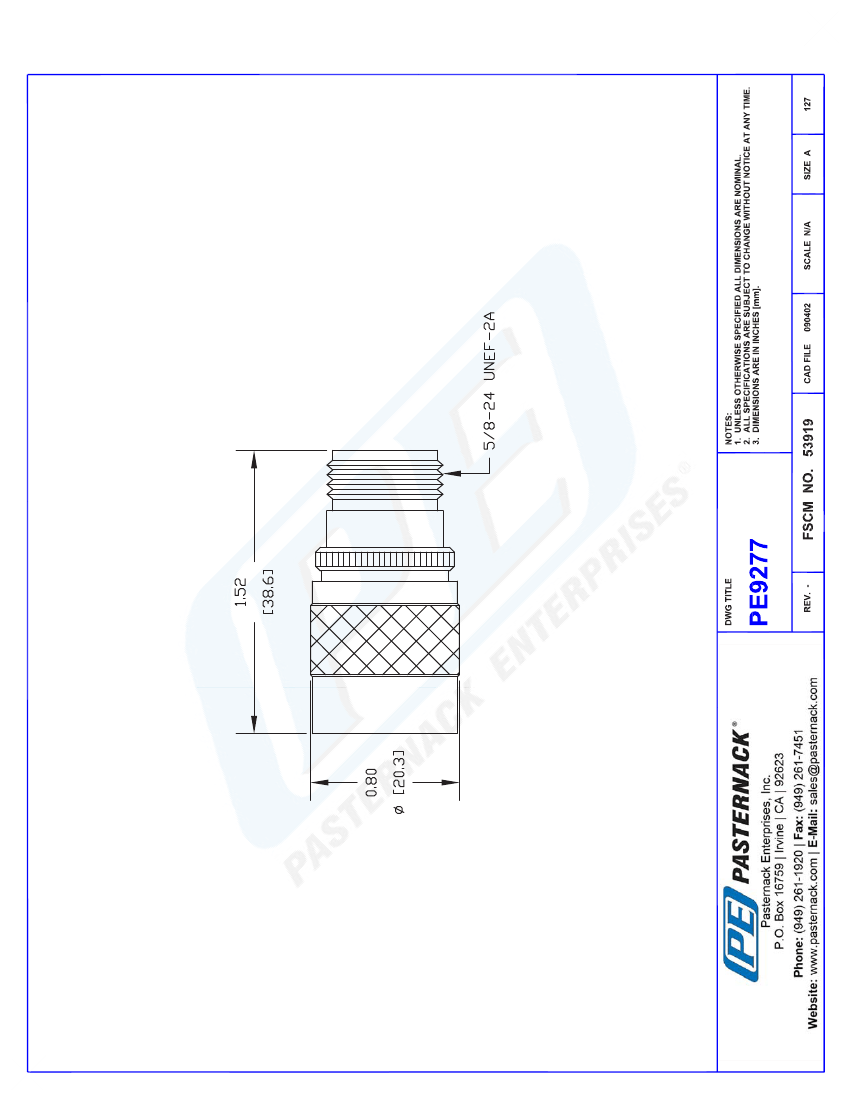

Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.521 [38.63]
0.8 [20.32]
Connector 1
Type
Inner Conductor Material and Plating
Body Material and Plating
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Body Material and Plating
Dielectric Type
N Female
Silver
Brass, Nickel
PTFE
SC Male
Silver
Brass, Nickel
Brass, Nickel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/n-female-sc-male-straight-adapter-pe9277-p.aspx
N Female to SC Male Adapter from Pasternack Enterprises has same day shipment for domestic and International orders.
Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
PE9277 REV
1
