TNC Tee Adapter Male-Female-Female
TECHNICAL DATA SHEET
TNC Tee Adapter Male-Female-Female
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Connector 3
Adapter Design
Body Style
TNC Male
50 Ohms
TNC Female
50 Ohms
TNC Female
Standard
Tee
PE9290
Mechanical Specifications
Temperature
Operating Range,deg C

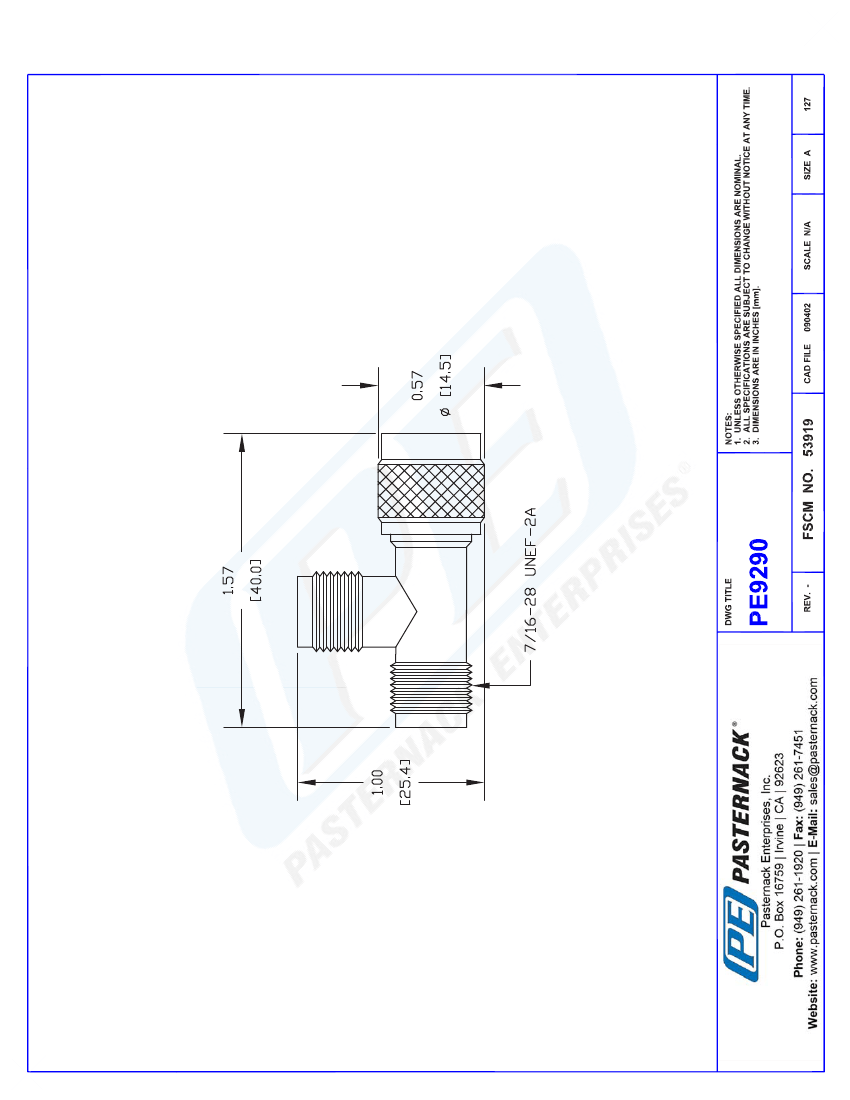

Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-65 to +165
1.575 [40.01]
0.59 [14.99]
1 [25.4]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Body Material and Plating
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Dielectric Type
Connector 3
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Dielectric Type
TNC Male
Silver
QQ-S-365
Brass, Nickel
Brass, Nickel
Teflon
TNC Female
Silver
QQ-S-365
Brass, Nickel
Teflon
TNC Female
Silver
QQ-S-365
Brass, Nickel
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
TNC Tee Adapter Male-Female-Female PE9290
PE9290 REV
1
TNC Tee Adapter Male-Female-Female
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE9290
TNC Tee Adapter Male-Female-Female from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
TNC Tee Adapter Male-Female-Female PE9290
URL:
http://www.pasternack.com/tnc-male-female-female-tee-adapter-pe9290-p.aspx
PE9290 REV
2
