SMA Tee Adapter Male-Male-Male
TECHNICAL DATA SHEET
SMA Tee Adapter Male-Male-Male
Configuration
Connector 1
Impedance 1
Connector 2
Impedance 2
Connector 3
Adapter Design
Body Style
SMA Male
50 Ohms
SMA Male
50 Ohms
SMA Male
Standard
Straight
PE9379

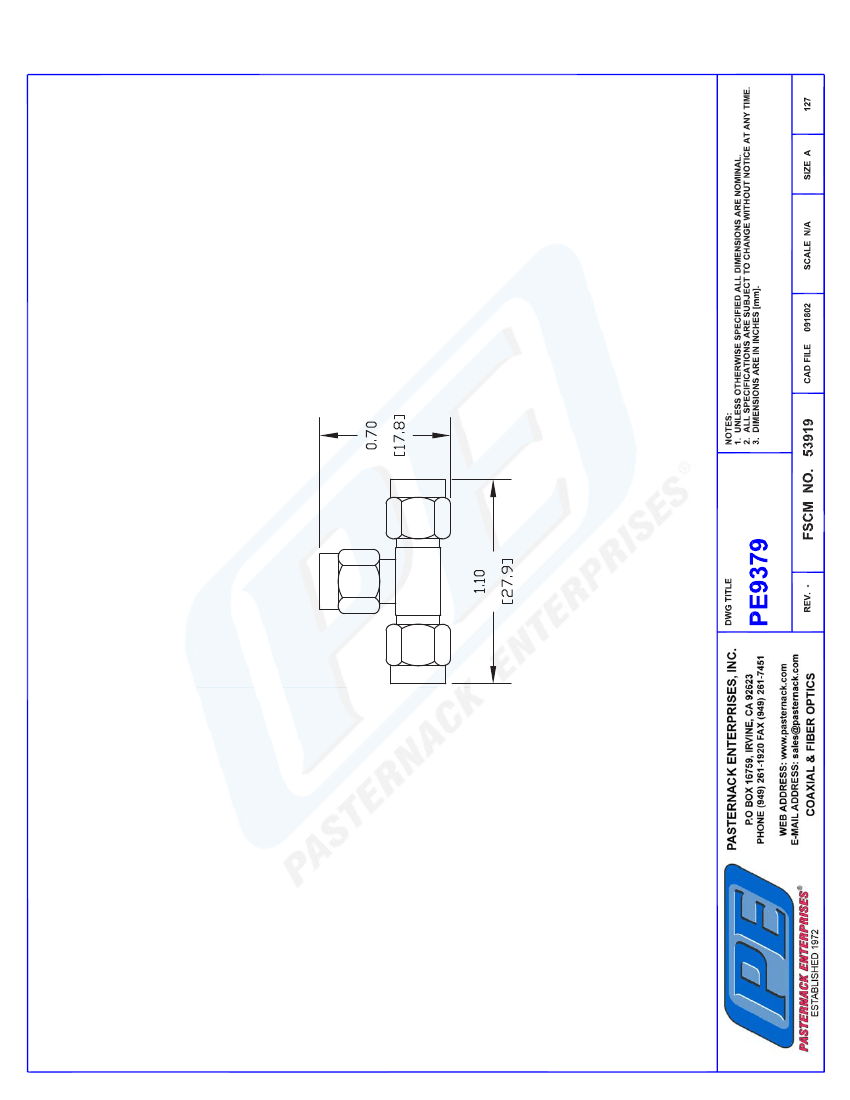

Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
1.1 [27.94]
0.312 [7.92]
0.7 [17.78]
Connector 1
Type
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
Connector 3
Type
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
Body Material and Plating
Dielectric Type
SMA Male
Gold
Brass, Nickel
5/16
5 [0.57]
Brass, Nickel
PTFE
SMA Male
Gold
Brass, Nickel
5/16
5 [0.57]
Brass, Nickel
PTFE
SMA Male
Gold
Brass, Nickel
5/16
Brass, Nickel
PTFE
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Tee Adapter Male-Male-Male PE9379
PE9379 REV
1
SMA Tee Adapter Male-Male-Male
TECHNICAL DATA SHEET
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
PE9379
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/sma-male-male-male-tee-adapter-pe9379-p.aspx
SMA Tee Adapter Male-Male-Male from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
PE9379 REV
2
