SMA Male to N Male Precision Cable 72 Inch
Length Using 150 Series Coax, RoHS
TECHNICAL DATA SHEET
SMA Male to N Male Precision Cable 72 Inch Length Using 150 Series Coax, RoHS
Configuration
Connector 1
Connector 2
Cable Type
SMA Male
N Male
150 Series
PE33231-72
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Velocity of Propagation, %
RF Shielding, dB
Maximum Operating Voltage, Vrms
Typical Electrical Specifications
Frequency 1
Frequency, GHz
VSWR
Insertion Loss
Frequency 2
Frequency, GHz
VSWR
Insertion Loss
Frequency 3
Frequency, GHz
VSWR
Insertion Loss
Frequency 4
Frequency, GHz
VSWR
Insertion Loss
Frequency 5
Frequency, GHz
VSWR
Insertion Loss
Electrical Specification Notes:
2
1.1:1
0.22 dB/ft [ 0.72 dB/m ]
DC to 18
50
1.4:1
69.5
90
1,900
6
1.08:1
0.34 dB/ft [ 1.12 dB/m ]
10
1.17:1
0.45 dB/ft [ 1.48 dB/m ]
14
1.23:1
0.57 dB/ft [ 1.87 dB/m ]
18
1.25:1
0.68 dB/ft [ 2.23 dB/m ]
Short lengths up to 24” long may exhibit VSWR
measurements up to 9% higher.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications:
SMA Male to N Male Precision Cable 72 Inch Length Using 150 Series Coax, RoHS
PE33231-72
PE33231-72 REV
1
SMA Male to N Male Precision Cable 72 Inch
Length Using 150 Series Coax, RoHS
TECHNICAL DATA SHEET
Mechanical Specifications
Cable Assembly
Cable Type
Temperature
Temperature Operating Range, deg C
Size
Length, in [cm]
.
PE33231-72
150 Series
-55 to +205
72 [182.88]
1 [25.4]
One Time Minimum Bend Radius, in [mm]
Cable
Center Conductor Type
Cable Inner Conductor
No of Shields
Dielectric Type
Jacket Material
Jacket Diameter, in [mm]
Solid
Copper Clad Steel, Silver
1
PTFE
FEP
0.15 [3.81]
Connector 1
Type
Configuration
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Dielectric Type
SMA Male
Straight
Copper Clad Steel, Silver
Passivated Stainless Steel
5/16
8 [0.9]
Passivated Stainless Steel
PTFE
Connector 2
Type
Configuration
Inner Conductor Material and Plating
Outer Conductor Material and Plating
Coupling Nut Material and Plating
Body Material and Plating
Dielectric Type
N Male
Straight
Gold
Passivated Stainless Steel
Brass, Nickel
Passivated Stainless Steel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications:
SMA Male to N Male Precision Cable 72 Inch Length Using 150 Series Coax, RoHS
PE33231-72
PE33231-72 REV
2
SMA Male to N Male Precision Cable 72 Inch
Length Using 150 Series Coax, RoHS
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE33231-72
SMA Male to N Male Precision Cable 72 Inch Length Using 150 Series Coax, RoHS from Pasternack Enterprises has same
day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability
and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male to N Male Precision Cable 72 Inch Length Using 150 Series Coax, RoHS PE33231-
72
URL:
http://www.pasternack.com/sma-male-n-male-150-series-cable-assembly-pe33231-72-p.aspx
PE33231-72 REV
3
SMA Male to N Male Precision Cable 72 Inch Length Using 150 Series Coax, RoHS
PE33231-72

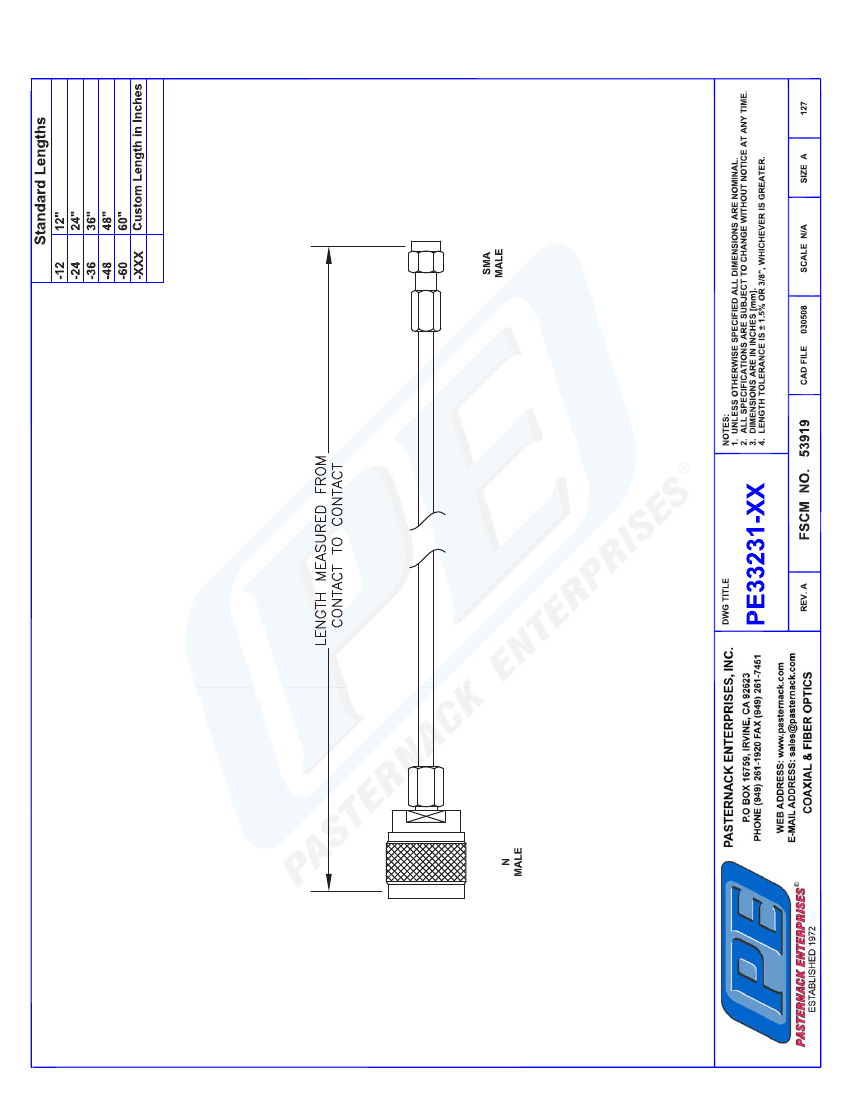

CAD Drawing
© 2013 Pasternack Enterprises All Rights Reserved
PE33231-72 REV
4
