52976-1540 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52976-1540

52976-1540: DescriptionCard Edge Connector, 15 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal; CategoryThe connector The connector; File Size326KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

52976-1540 Overview

Card Edge Connector, 15 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal

52976-1540 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	BOTTOM CONTACT STYLE
Connector type	FFC/FPC CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	15
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 6 to 30 circuits

For 0.30mm thick FFC/FPC

Metal solder tab provides PCB hold-down

and strain relief for SMT tails

Reference Information

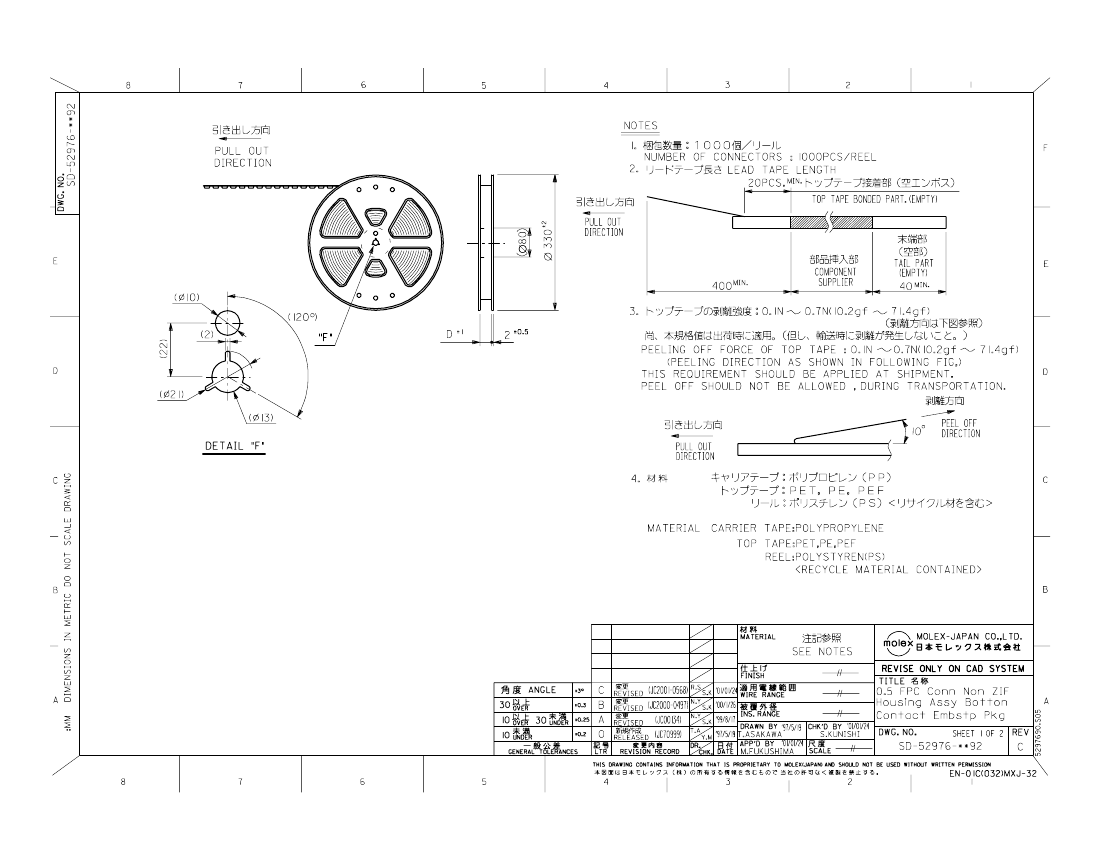

Packaging: Embossed tape

Designed In: Millimeters

Electrical

Voltage: 50V

Current: 0.4A

Contact Resistance: 40m

Ω

max.

Dielectric Withstanding Voltage: 250V

Insulation Resistance: 50 M

Ω

min.

Physical

Housing: PPHS, UL 94V-0

Contact: Phosphor Bronze

Plating: Tin/Lead Bright

Solder Tabs: Phosphor Bronze, Tin/Lead half-bright plating

Operating Temperature: -20 to +85˚C

0.50mm (.020") Pitch

FFC/FPC Connector

52976

Right Angle, SMT, Non-ZIF

Bottom Contact Style

FFC/FPC Connectors

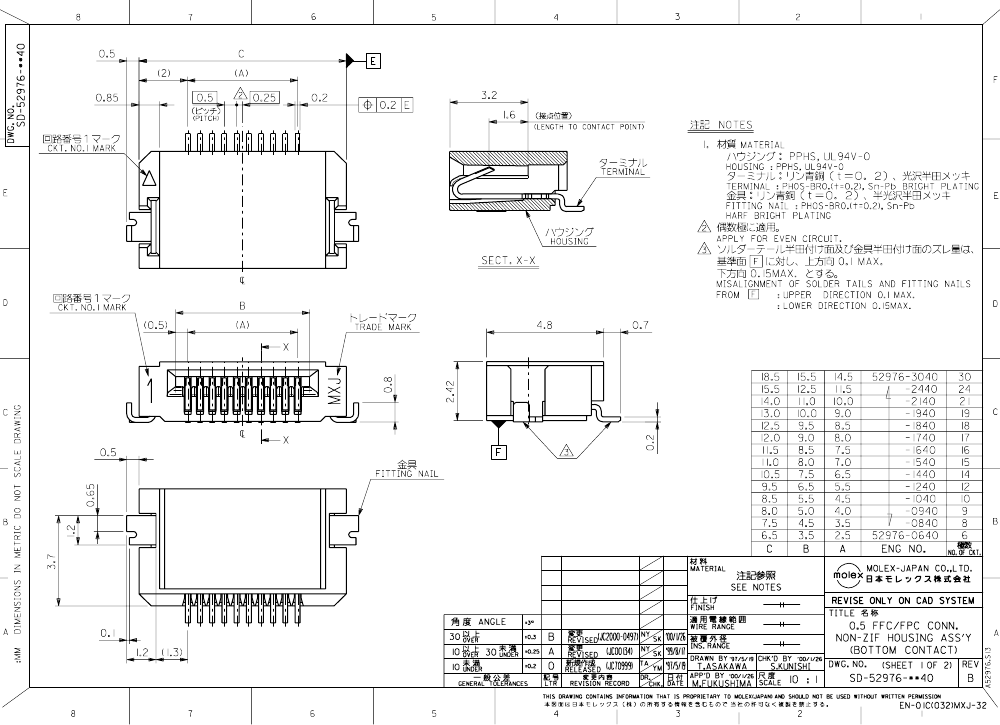

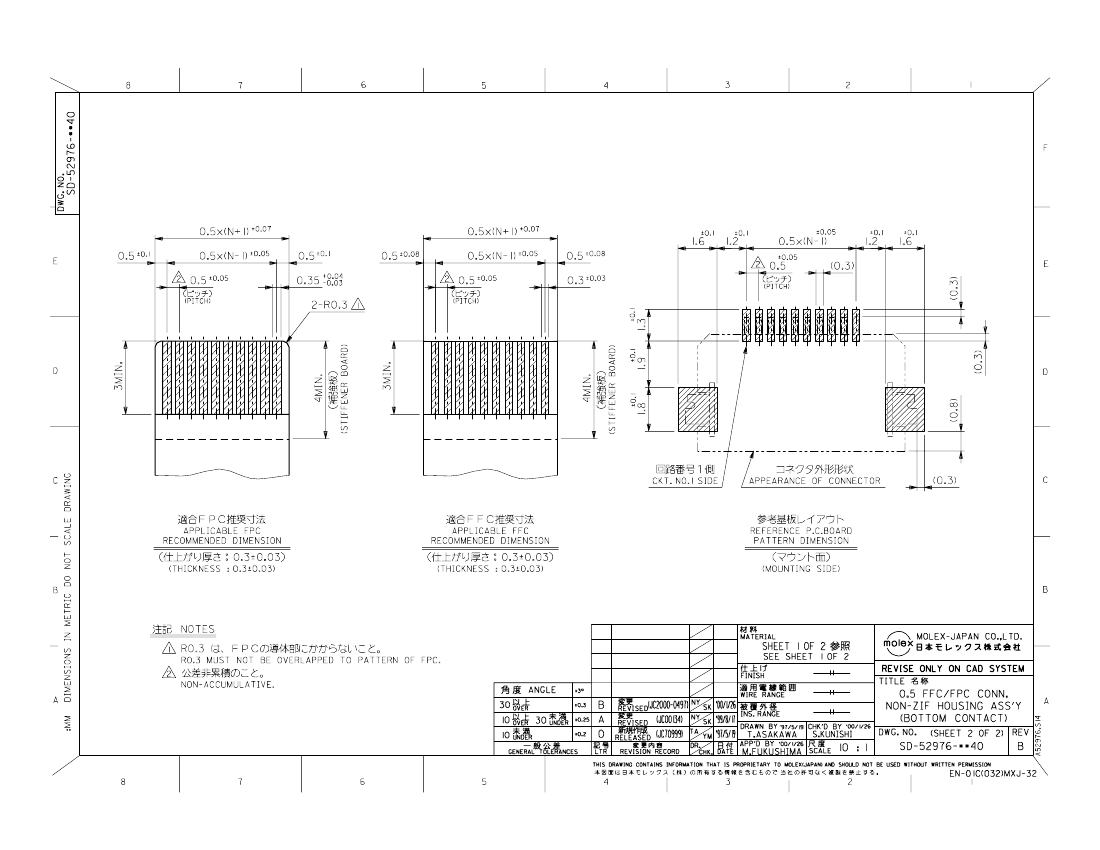

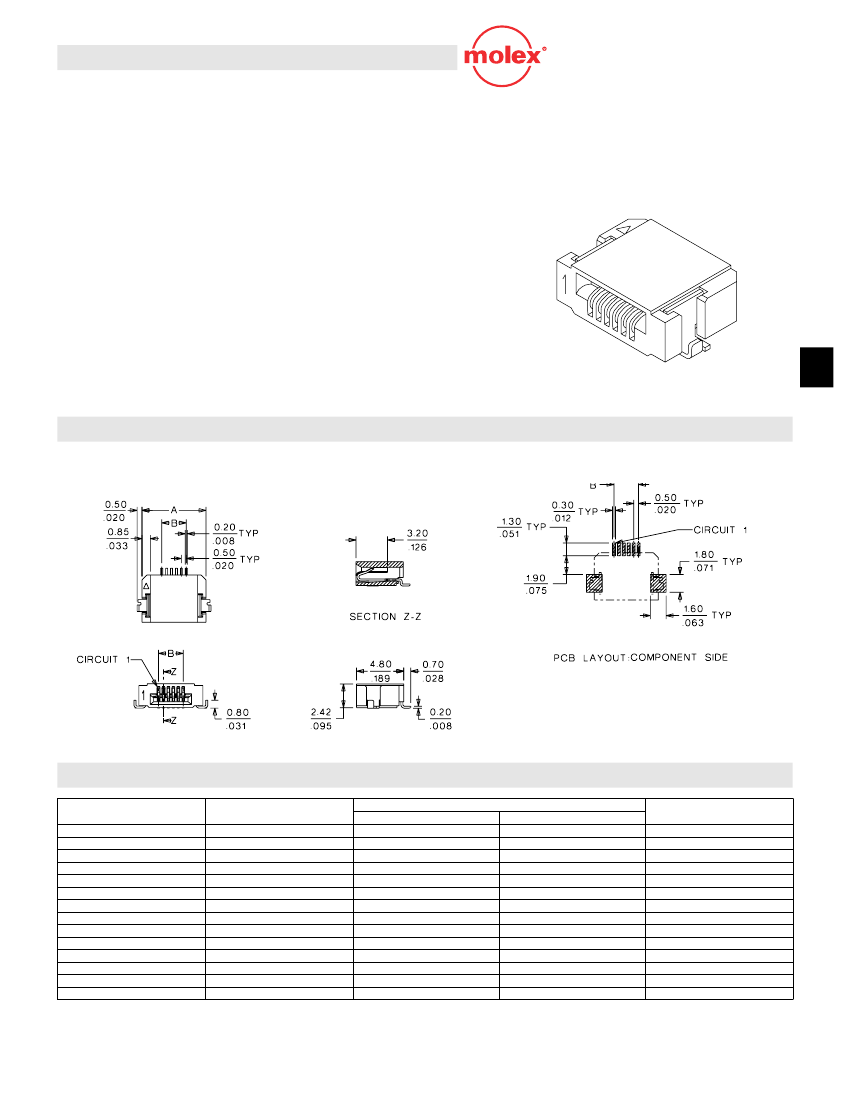

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

52976-0692

52976-0892

52976-0992

52976-1092

52976-1292

52976-1492

52976-1592

52976-1692

52976-1792

52976-1892

52976-1992

52976-2192

52976-2492

52976-3092

Dimension

6.50 (.250)

7.50 (.295)

8.00 (.310)

8.50 (.330)

9.50 (.370)

10.50 (.410)

11.00 (.430)

11.50 (.450)

12.00 (.470)

12.50 (.490)

13.00 (.510)

14.00 (.551)

15.50 (.610)

18.50 (.720)

2.50 (.090)

3.50 (.138)

4.00 (.150)

4.50 (.170)

5.50 (.210)

6.50 (.250)

7.00 (.270)

7.50 (.290)

8.00 (.310)

8.50 (.330)

9.00 (.350)

10.00 (.394)

11.50 (.450)

14.50 (.570)

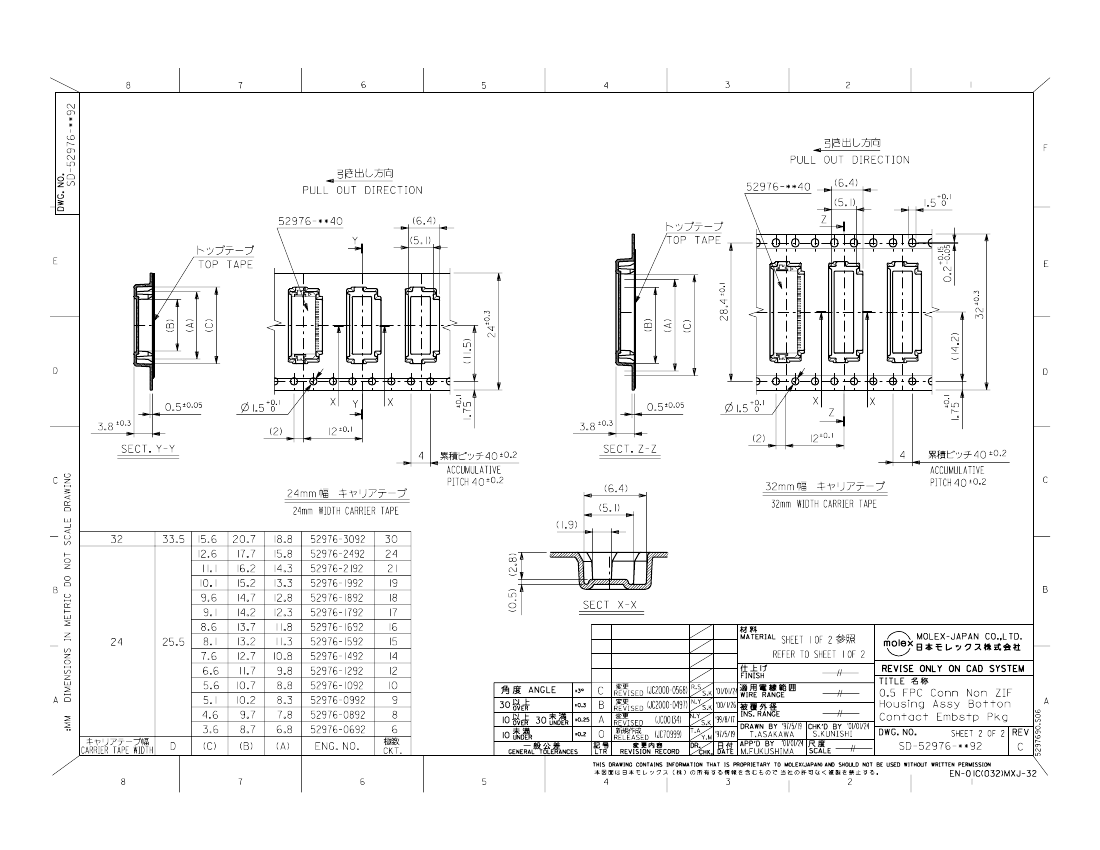

Carrier Tape Width

24.00 (.945)

32.00 (1.260)

Note: For cable speciﬁcation dimensions, see cable pages at end of section

MX01

G-17
