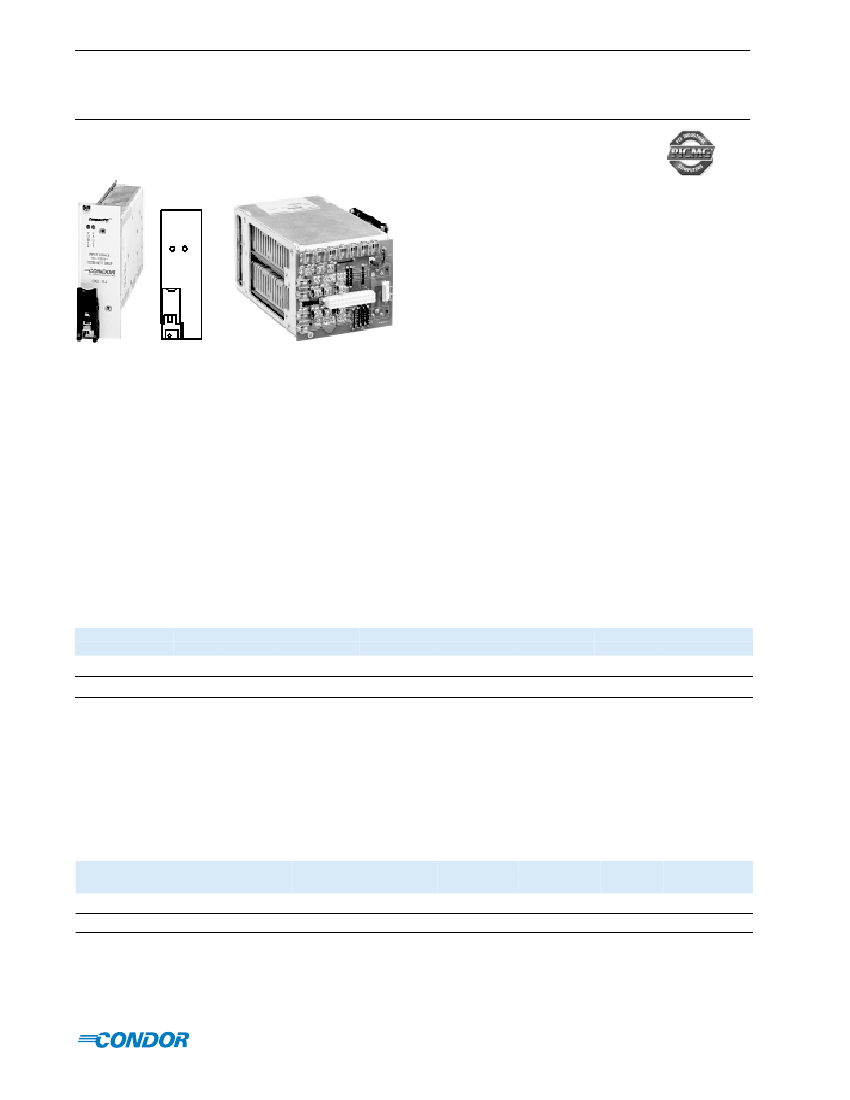

CPCI Series / DPCI Series 200 Watts
CompactPCI
®
System Power Supplies
CPCI SERIES
200 Watts, Ac Input with PFC
DPCI SERIES
200 Watts, 48 Vdc Input
FEATURES:
EXECUTIVE MEMBER
INPUT FAULT
• 200 W in 3U x 8HP,
• Fully compliant with PICMG CompactPCI
®
specifications
• Current sharing and internal OR-ing diodes for N+1
redundancy
• High current 5 V and 3.3 V outputs
• CompactPCI
®
package requires only 15 cfm of external
cooling air
• Universal ac input versions with power factor correction
• 48 Vdc input versions
CPQ400
(shown with optional interface board)
CPCI200
3U x 8 HP
The CPCI series (ac input) and DPCI series (dc input) are highly reliable power supplies for CompactPCI systems, which are
increasingly used in communications, industrial, military/aerospace, and other applications. These power supplies offer high power
density in plug-in modules that meet the requirements of the PICMG
®
power interface specification for CompactPCI systems.
These units may be used as a single power supply for a CompactPCI system, or multiple units may be used in parallel for higher
power capability as needed. In addition, all units include current sharing, internal OR-ing diodes, and a hot plug input/output connector
to offer full hot swap capability and N+1 redundancy. Also, compatible ac and dc input units offer standardization on a single power
supply series for a system mechanical configuration.
The CPQ400 is a power supply assembly that is made up of two CPCI/DCPI 204s. Two supplies are enclosed with a fan to provide an
alternative mounting configuration to the Compact PCI format. This is used for maximizing the number of a customers revenue slots by
relocating the power supply while still keeping the CPCI/DCPI electrical characteristics. These supplies can be used in parallel to
provide 400 watts of output power or as a 200 watt N +1 redundant power supply system. An optional interface board brings the input
and output connectors to convenient screw terminals and Molex type connectors. The individual model ratings depend on the specific
units chosen and you should refer to the standard CPCI/DCPI data sheets. When used as a single 400 watt unit, you can simply
double the single unit specifications.
AC INPUT
Model
CPCI-204-1203
CPCI-204-1203 M
Power
200 W
200 W
Connector
47 Pin
DIN "M'
Output 1
5.0 V @ 25 A
Output 2
3.3 V @ 30A
Output 3
Output 4
Min. Load
on V1*
3.0 A
3.0 A
Max. Output
From V1 & V2
35 A
35 A
12 V @ 5.5 A -12 V @ 0.5 A
12 V @ 5.5 A -12 V @ 0.5 A
5.0 V @ 25 A 3.3 V @ 25 A
CPCI SERIES SPECIFICATIONS
AC INPUT:
90-264 Vac continuous range, 47 to 63 Hz.
POWER FACTOR:
0.99 typical at full load.
Meets EN61000-3-2 Class A.
INRUSH:
CPCI :
Cold start ac current is less than 27 A at 115 Vac, and 50
A at 230 Vac. Limited by thermistor.
BROWNOUT PROTECTION:
Holds regulation to 85 Vac
(30 seconds maximum)
HOLDUP TIME:
10 ms minimum after removal of power at full load.
EFFICIENCY:
70% typical.
EMI: CONDUCTED RFI
Meets FCC Part 15, Class A; EN55022 Class A.
FAIL# SIGNAL:
TTL compatible signal. Signal goes low under
the following conditions: Outputs #1 or #2 fail; an overcurrent
condition on outputs #1, #2, or #3; an overtemperature shutdown;
an overvoltage shutdown; or an ac input failure (5 ms warning
before outputs shutdown).
DC INPUT
Model
DPCI-204-1203
DPCI-204-1203M
Power
200 W
200 W
Connector
47 Pin
DIN "M"
Output 1
Output 2
Output 3
12 V @ 5.5 A
12 V @ 5.5 A
Output 4
-12 V @ 0.5 A
-12 @ 0.5 A
Min. Load
on V1*
3.0 A
3.0 A
Max. Output
From V1 & V2
35 A
35 A
5 V @ 25 A 3.3 V @ 30 A
5 V @ 25 A 3.3 V @ 25 A
DPCI SERIES SPECIFICATIONS
DC INPUT:
36-72 Vdc
EFFICIENCY:
75% typical
FAIL# SIGNAL:
TTL compatible signal. Signal goes low under
the following conditions: Any of 4 outputs fail; an overtemperature
shutdown; or an overvoltage shutdown.
100
Condor D.C. Power Supplies, Inc., 2311 Statham Parkway, Oxnard, CA 93033
800-235-5929 • 805-486-4565 • FAX 805-487-8911 • www.condorpower.com
CPCI Series / DPCI Series 200 Watts
CompactPCI
®
System Power Supplies
Power Supply Pin Assignments
Model: CPCI-204-1203
Connector: Positronics PCI47M400A1
Mating Connector: PCIH47F300A1
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Designation
+5 V
+5 V
+5 V
+5 V
GND
GND
GND
GND
GND
GND
GN D
GND
+3.3 V
+3.3 V
+3.3 V
+3.3 V
+3.3 V
+3.3 V
GND
+12 V Output
-12 V Output
GND
Not Used
GND
Pin No.
25
26
27*
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
Designation
Not Used
Not Used
Enable
Not Used
Not Used
+5 V Sense
Not Used
Not Used
+3.3 V Sense
Sense Return
Not Used
+12 V Sense
Not Used
DEG#
Inhibit
Not Used
Not Used
Fail #
Not Used
Not Used
Safety Ground
Ac Neutral
Ac Line
Model: DPCI-204-1203
Connector: Positronics PCI47M400A1
Mating Connector: PCIH47F300A1
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Designation
+5 V
+5 V
+5 V
+5 V
GND
GND
GND
GND
GND
GND
GND
GND
+3.3 V
+3.3 V
+3.3 V
+3.3 V
+3.3 V
+3.3 V
GND
+12 V Output
-12 V Output
GND
Not Used
GND
Pin No.
25
26
27*
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45**
46
47
Designation
Not Used
Not Used
Enable
Not Used
Not Used
+5 V Sense
Not Used
Not Used
+3.3 V Sense
Sense Return
Not Used
+12 V Sense
Not Used
DEG#
Inhibit
Not Used
Not Used
Fail #
Not Used
Not Used
Safety Ground
-48 Vdc Input Return
-48 Vdc Input
Model: CPCI-204-1203M
Male Connector: DIN 41612 Type “M”
Mating Connector: ERNI #914374 or AMP#148370
Pin No.
A13
A14
A15
A16
A17
A18
A19
A20
B2
B5
B8
B11
B13
B14
B15
B16
Designation
Not Used
Inhibit
Not Used
Sense Return
+5 V Sense
+3.3 V Sense
+12 V Output
-12 V Output
Ac Line
Ac Neutral
Not Used
Chassis Ground
+3.3 V
+3.3 V
+3.3 V
+3.3 V
Pin No.
B17
B19
B19
B20
B22
B25
B28
B31
C13
C14
C15
C16
C17
C18
C19
C20
Designation
+3.3 V
+12 V Output
+12 V Output
-12 V Output
+5 V
GND
Not Used
Not Used
Enable
Deg#
Fail #
+3.3 V
+3.3 V
+3.3 V
+12 V Output
-12 V Output
Model: DPCI-204-1203M
Male Connector: DIN 41612 Type “M”
Mating Connector: ERNI #914374 or AMP#148370
Pin No.
A13
A14
A15
A16
A17
A18
A19
A20
B2
B5
B8
B11
B13
B14
B15
B16
Designation
Not Used
Inhibit
Not Used
Sense Return
+5 V Sense
+3.3 V Sense
+12 V Output
-12 V Output
Not Used
Not Used
Not Used
Chassis Gnd
+3.3 V
+3.3 V
+3.3 V
+3.3 V
Pin No.
B17
B18
B19
B20
B22
B25
B28
B31
C13
C14
C15
C16
C17
C18
C19
C20
Designation
+3.3 V
+3.3 V
+12 V Output
-12 V Output
+5 V
GND
-48 Vdc Input Return
-48 Vdc Input
Enable
Deg#
Fail #
+3.3 V
+3.3 V
+3.3 V
+12 V Output
-12 V Output
Condor D.C. Power Supplies, Inc., 2311 Statham Parkway, Oxnard, CA 93033
800-235-5929 • 805-486-4565 • FAX 805-487-8911 • www.condorpower.com
101
CompactPCI
®
System Power Supplies
OUTPUT
LINE & LOAD REGULATION:
± 2% over input range and minimum to 100% load change.
RIPPLE & NOISE
1% p-p or 50 mV, whichever is greater.
Measured at mating connector with 20 µF
REMOTE SENSE
Open sense lead protection
TEMPERATURE COEFFICIENT
(Outputs #1 and 2): 0.03% per degree centigrade
STABILITY
0.1% over 8 hours after 30 minutes warm-up.
TRANSIENT RESPONSE
(Outputs #1 and 2): Output voltage returns to within 1% in less
than 1 ms for a 50% load change. Peak transient does not
exceed 5%.
OVERVOLTAGE PROTECTION
(Outputs #1 and #2): Protects load against power supply
induced overvoltage. Trip-point is factory set so that
output voltage cannot exceed 136% of nominal. Input
power must be recycled to reset.
OVERLOAD PROTECTION
All outputs are protected against overload and short circuit,
Automatic recovery upon removal of fault.
DEG# SIGNAL :
TTL compatible signal. Signal goes low 20ºC before an
overtemperature shutdown.
FAIL LED :
Amber LED illuminates upon a failure condition as per the CPCI
and DPCI series specifications.
STATUS LED :
Green LED illuminates with no presence of any
failure condition.
REMOTE ENABLE
Contact closure to common turns on dc outputs.
Recessed pin for “make last, break first” connection.
REMOTE INHIBIT
Contact closure to the negative sense line or a TTL
level “0” turns off dc outputs.
REDUNDANCY
Built-in ORing diodes, slope program current sharing on all
outputs, and self aligning connector provide hot swap and N+1
capabilities. Current sharing remains within 10% of the unit’s full
output rating while units are in thermal equilibrium.
REVERSE VOLTAGE
Protected against reverse voltage up to supply
current rating. except for reverse voltage on output #4 on CPCI-200.
ENVIRONMENTAL
COOLING
200 Watt:
15 cfm, 225 lfm airflow required for cooling.
OUTPUT ISOLATION
Isolated from ground 50 Vdc (leakage current <20 µA)
THERMAL PROTECTION
Shuts down power supply if overheated.
Automatic recovery.
TEMPERATURE RANGE
0 to 40º centigrade at full ratings; derate 2.5%
per degree centigrade from 40º to 70º centigrade.
Unit will start up at -20º centigrade.
MISCELLANEOUS
SAFETY AGENCY APPROVALS
Models are approved to UL1950; CSA 22.2 #234;
IEC 950 and TUV EN60950, Class 1 SELV.,
CE 72/23/EEC/93/68EEC (low voltage directive).
GUARANTEED FOR 2 YEARS
Two year guarantee includes labor and parts.
Guarantee applies to operation at full published
specifications at the end of 2 years.
OPTIONS:
LOW LEAKAGE
(CPCI only)
“L” option: Leakage current less than 0.5 mA per unit. Will
require additional filtering for compliance to EMI specifications.

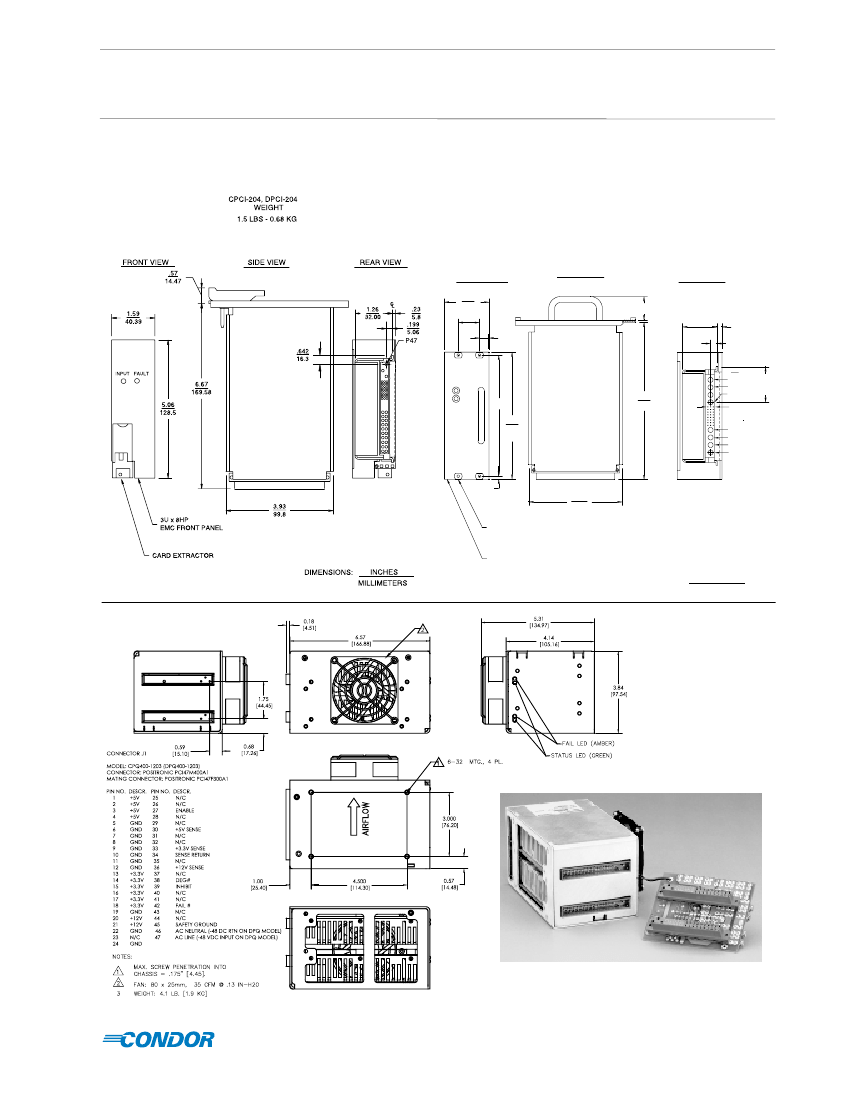

MECHANICAL DIMENSIONS
CPCI-204, & DPCI-204 Models:
3U x 8HP W, 160 mm board depth (see outline drawing).
Utilizes a 47 pin modular connector in accordance with PICMG
®
Power Interface Specification 2.11.
CPCI-204M, and DPCI-204M Models:
3U x 8HP W, 160 mm board depth (see outline drawing). Utilizes
a DIN “M” connector as referenced in the PICMG
®
Power
Interface Specification 2.11.
102
Condor D.C. Power Supplies, Inc., 2311 Statham Parkway, Oxnard, CA 93033
800-235-5929 • 805-486-4565 • FAX 805-487-8911 • www.condorpower.com
CompactPCI
®
System Power Supplies
CPCI-204 & DPCI-204 Models:
:
3U x 8HP W, 160 mm board depth
Utilizes a 47 pin modular connector in accordance with PICMG
®
Power Interface Specification 2.11.
MECHANICAL DIMENSIONS
CPCI-204M & DPCI-204M Models:
3U x 8HP W, 160 mm board depth
Utilizes a DIN “M” connector as referenced in the PICMG
®
Power
Interface Specification 2.11.
CPCI-204M, DPCI-204M
WEIGHT
1.58 LBS .72 KG
FRONT VIEW
1.59
40.39
.80
.50
SIDE VIEW
REAR VIEW
1.00
1.37
.25
C
L
.12
FAULT
INPUT
4.82
5.06
128.5
6.62
168.14
B2
B5
B11
C13
A13
1.441
(36.61mm)
B22
B25
B28
B31
.12
3.930
99.82
PANEL FASTENER
M2.5 COLLAR
SCREW 4PL.
3U x 8HP
EMC FRONT PANEL
DIMENSIONS:
INCHES
MILLIMETERS
CPQ400 Model:
CPQ400 shown with optional interface board detached
Condor D.C. Power Supplies, Inc., 2311 Statham Parkway, Oxnard, CA 93033
800-235-5929 • 805-486-4565 • FAX 805-487-8911 • www.condorpower.com
103
京公网安备 11010802033920号
EEWORLD
