50 Ohm 100 Watts Aluminum Heatsink 7/16 DIN
Female RF Load Up To 2 GHz
TECHNICAL DATA SHEET
50 Ohm 100 Watts Aluminum Heatsink 7/16 DIN Female RF Load Up To 2 GHz
Configuration
Connector
7/16 DIN Female
PE6137
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Maximum Input Power, Watts
Frequency 1
Frequency, GHz
VSWR
Frequency 2
Frequency, GHz
VSWR
DC to 2
50
1.35:1
100
DC to 1.5
1.25:1
1.5 to 2
1.35:1
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-55 to +125
6.26 [159]
3.46 [87.88]
3.46 [87.88]
Connector
Type
Body Material and Plating
7/16 DIN Female
Brass, Tri-Metal
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm 100 Watts Aluminum Heatsink 7/16 DIN Female RF Load Up To 2 GHz PE6137
PE6137 REV
1
50 Ohm 100 Watts Aluminum Heatsink 7/16 DIN
Female RF Load Up To 2 GHz
TECHNICAL DATA SHEET
PE6137
50 Ohm 100 Watts Aluminum Heatsink 7/16 DIN Female RF Load Up To 2 GHz from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm 100 Watts Aluminum Heatsink 7/16 DIN Female RF Load Up To 2 GHz PE6137
URL:
http://www.pasternack.com/7-16-female-high-power-termination-pe6137-p.aspx
PE6137 REV
2
PE6137

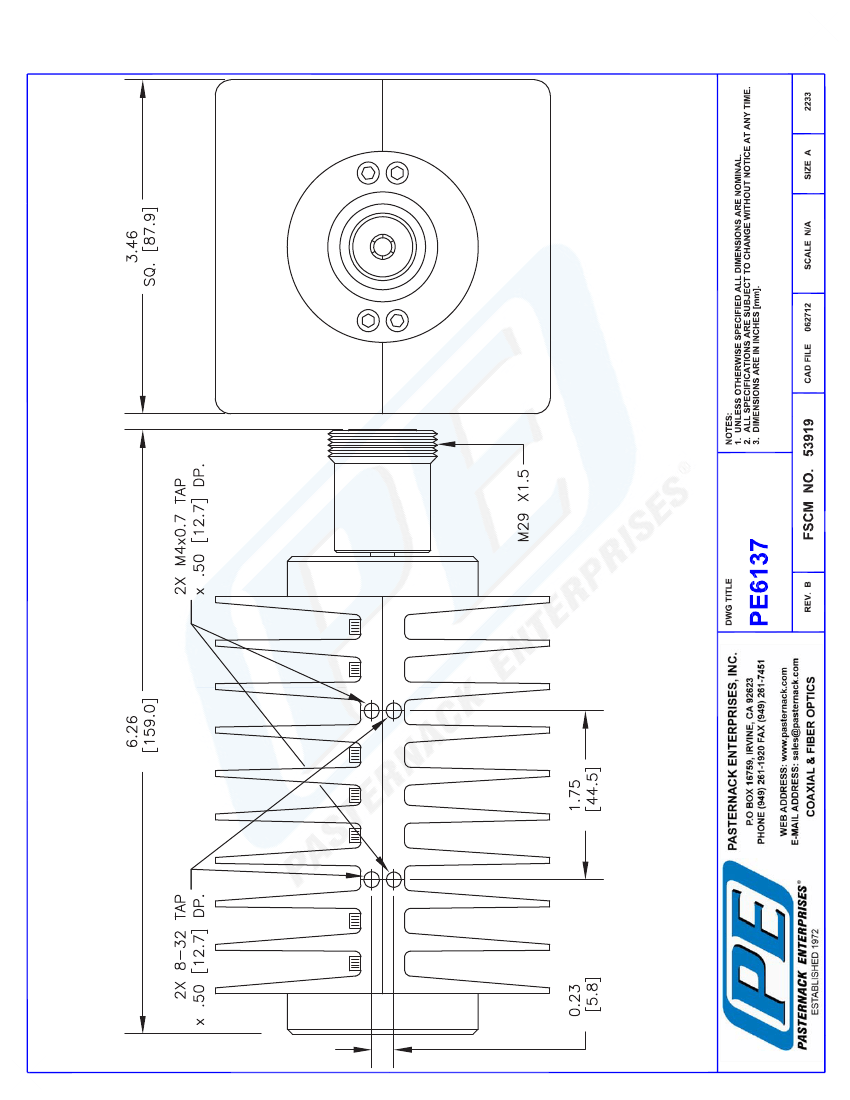

CAD Drawing
50 Ohm 100 Watts Aluminum Heatsink 7/16 DIN Female RF Load Up To 2 GHz
