PE9143: DescriptionSMA Female to SMB Jack Adapter; CategoryThe connector The connector; File Size243KB，3 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/; Environmental Compliance

Download Datasheet Parametric View All

PE9143 Overview

SMA Female to SMB Jack Adapter

PE9143 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
Is Samacsys	N
Adapter type	SMA-SMB
Body/casing type	JACK-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	NI,NI
Contact point gender	FEMALE-FEMALE
Contact material	BRASS,BRASS
Contact style	COAX
Coupling type	THREADED-SNAP
Filter function	NO
insulator material	POLYTETRAFLUOROETHYLENE
Installation method	STRAIGHT
Maximum operating frequency	4 GHz
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
reliability	COMMERCIAL
voltage standing wave ratio	1.46
Base Number Matches	1

Preview

Download Datasheet

View All

SMA Female to SMB Jack Adapter

TECHNICAL DATA SHEET

SMA Female to SMB Jack Adapter

Configuration

Connector 1

Impedance 1

Connector Specification 1

Connector 2

Impedance 2

Connector Specification 2

Adapter Design

Body Style

SMA Female

50 Ohms

MIL-STD-348A

SMB Jack

50 Ohms

MIL-STD-348A

Standard

Straight

PE9143

Electrical Specifications

Frequency Range, GHz

Maximum VSWR

Maximum Operating Voltage, Volts

DC to 4

1.46:1

375

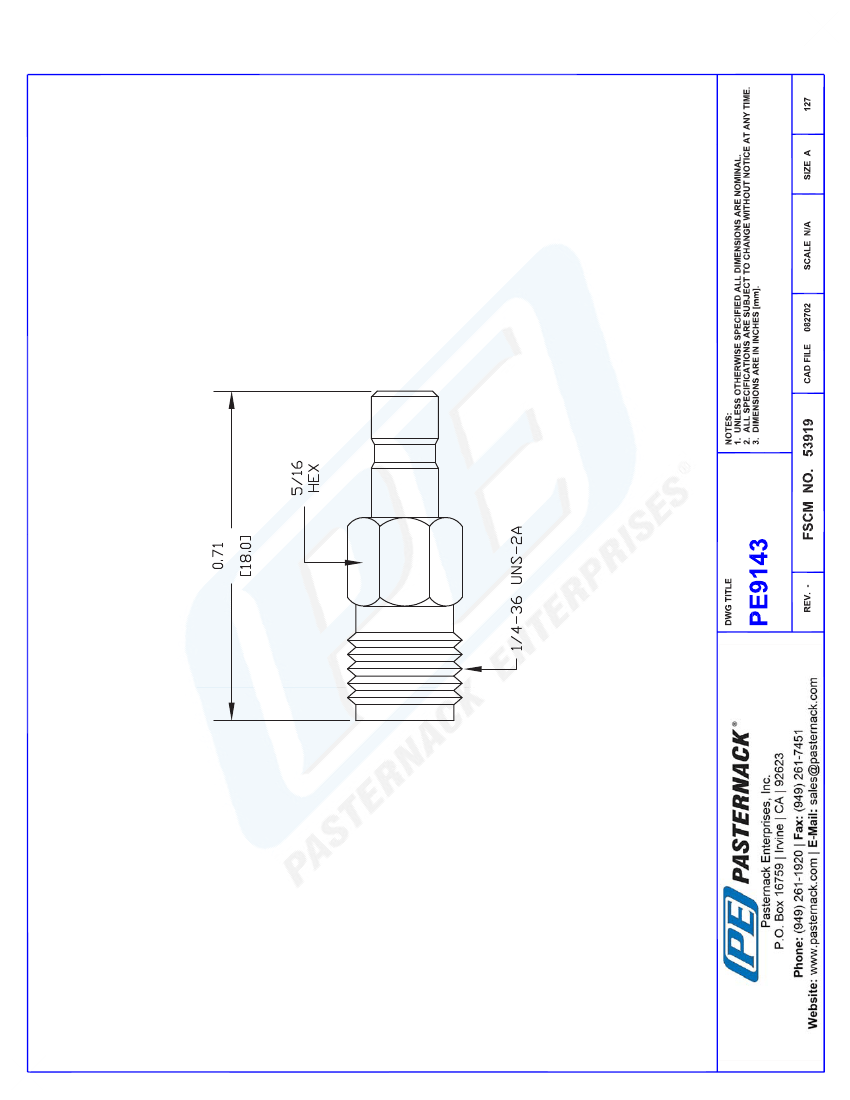

Mechanical Specifications

Temperature

Operating Range,deg C

Size

Length, in [mm]

Width/Dia., in [mm]

-55 to +155

0.708 [17.98]

0.25 [6.35]

Connector 1

Type

Inner Conductor Material and Plating

Body Material and Plating

Dielectric Type

Connector 2

Type

Inner Conductor Material and Plating

Body Material and Plating

Dielectric Type

SMA Female

Beryllium Copper, Gold

Brass, Nickel

PTFE

SMB Jack

Beryllium Copper, Gold

Brass, Nickel

PTFE

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

SMA Female to SMB Jack Adapter PE9143

PE9143 REV
