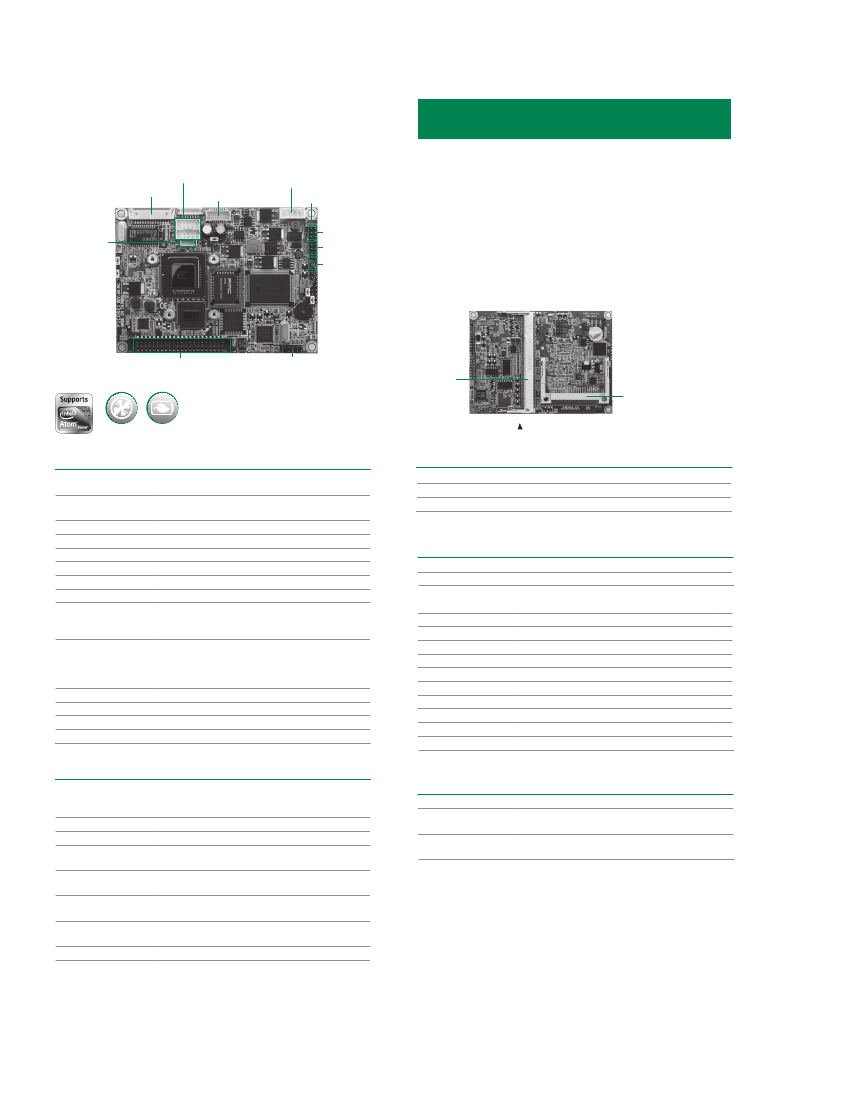

PICO821
Intel
®
Atom™ Z510/ Z530 Pico-ITX SBC
with LVDS, PATA, LAN and CF
USB1/2/3/4
Ethernet
+5V power input
SMBus
Features
®
●
Ultra low power Intel Atom™ processor Z510/ Z530
®
●
Intel System Controller Hub US15W
●
1 COM and 5 USB 2.0 (1 client port) supported
●
LVDS LCD supported
●
1 PATA and 1 CompactFlash™
●
1 10/100/1000Mbps Ethernet
●
Minimum 9 Watt power requirement
LVDS
USB client
K/B & M/S
COM
DIO
IDE
Audio
DDR2
SO-DIMM
Rear view
CF type-II
Fanless
Low Power
System
CPU
System Memory
Chipset
BIOS
SSD
Watchdog Timer
Expansion Interface
Battery
Power Input
Intel
®
Atom™ processor Z510 1.1 GHz and Z530 1.6 GHz
onboard with FSB 400/533 MHz
1 x 200-pin SO-DIMM supports DDR2-400/533 max.
up to 2 GB
Intel
®
System Controller Hub US15W
Phoenix-Award
1 x CompactFlash™ type-II
255 levels, 1~255 sec.
N/A
Lithium 3V/225 mAH
1 x 4-pin connector
+5V DC-in only
AT Auto Power on function supported
*Intel
®
Atom™ Z530 @1.6 GHz, 1GB DDR2
Max. RMS: +5V @ 1.59A
*Intel
®
Atom™ Z510 @1.1 GHz, 1GB DDR2
Max. RMS: +5V @ 1.387A
100 x 72 mm
1.6 mm
0° ~ +60°C (32°F ~ 140°F), operation
10% ~ 95% relative humidity, non-condensing
Display
Chipset
Memory Size
Display Interface
Intel
®
GMA 500 graphics core
Max. up to 256MB
1 x LVDS; 18/24-bit single channel
Packing List
Standard
Quick installation guide, user's manual/utility CD, cable
Accessories
Part Number
E393221101
5938H821040E
59382631000E
5938H821030E
5938H821000E
5938H821010E
85932021000E
59093201000E
5938H821020E
Power Requirements
Size
Board Thickness
Operating Temperature
Relative Humidity
Description
AX93221 24bit LVDS to DVI-D Bd.
PICO821 LVDS to AX93221 cable
2 x USB cable
USB client port cable
COM + KB cable
audio cable
AX93202 RJ-45 Bd.
PICO821 to AX93202 cable
Power in cable
Qty
1
1
2
1
1
1
1
1
1
I/O
MIO
1 x IDE; PATA-100
1 x PS/2 keyboard and mouse
1 x RS-232
N/A
Detect CPU/system temperature and voltage
1 port as 10/100/1000Mbps supports Wake-on-LAN
RPL/PXE Boot ROM with Realtek RTL8111B
HD Codec audio as Mic-in/Line-in/Line-out with Realtek
ALC886
4 x USB 2.0
1 x client USB 2.0
System Management Bus for advanced
monitoring/control interface
6 channels IN/OUT programmable
Ordering Information
Standard
PICO821LGA-Z510
(P/N:E38H821100)
PICO821LGA-Z530
(P/N:E38H821102)
Pico-ITX SBC with Intel
®
Atom™ processor Z510 1.1 GHz,
LVDS, PATA, 10/100/1000Mbps Ethernet, CF and DVI-D kit
Pico-ITX SBC with Intel
®
Atom™ processor Z530 1.6 GHz,
LVDS, PATA, 10/100/1000Mbps Ethernet, CF and DVI-D kit
SATA
Hardware Monitoring
Ethernet
Audio
USB
SMBus
Digital I/O
127
