DC-5.0 GHz
34.0 dBm Packaged HFET
May 2010 - Rev 25-May-10
F1000-DB

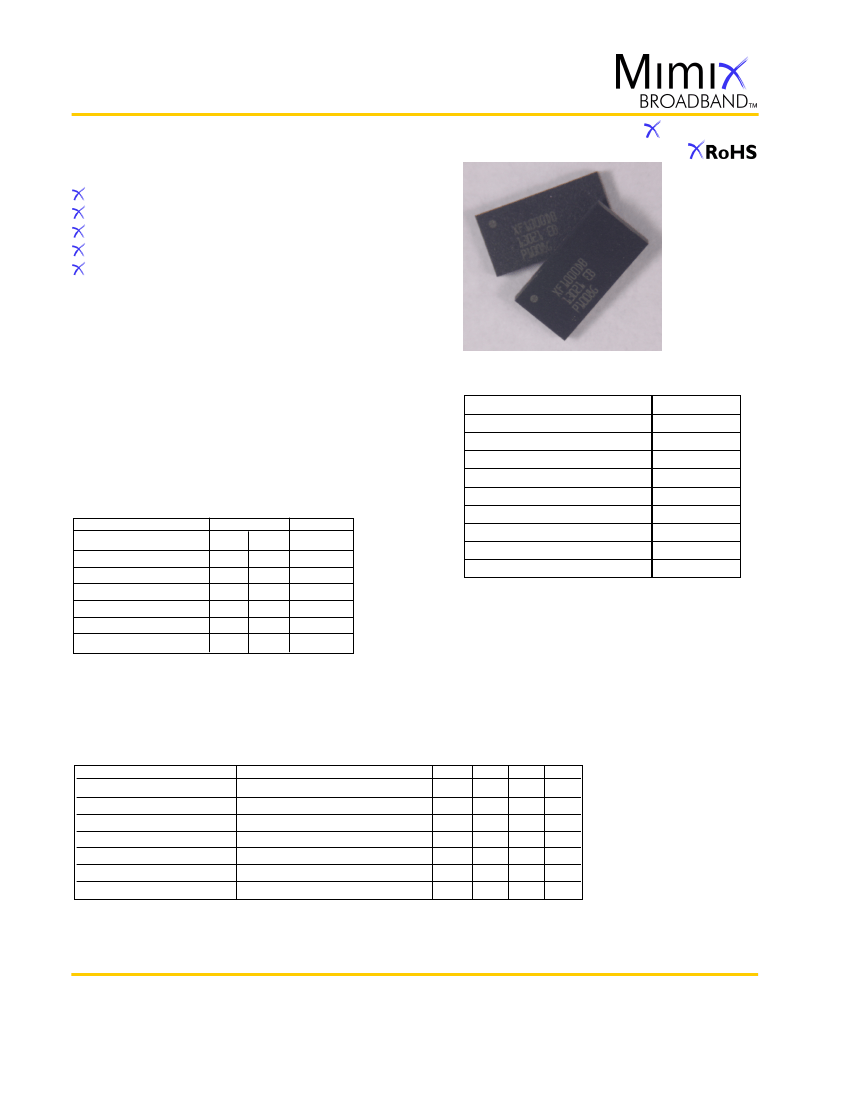

Features
High Linearity, 47 dBm OIP3
High Gain, 10 dB Gain @ 4.9 GHz
34 dBm P1dB
Low Thermal Resistance
Surface Mount 3x6mm DFN
General Description
The XF1000-BD is a high linearity Hetrojunction Field Effect
Transistor (HFET) housed in a 3x6mm DFN package.
Optimum performance is achieved when the device is
biased at a drain voltage of 8V and drain current of 600 mA.
At this bias point and at 4.9 GHz the device is capable of
more than 34 dBm of P1dB and OIP3 of more than 46 dBm.
The XF1000-DB is suitable for applications up to 5 GHz
where it has 10 dB of gain.
Absolute Maximum Ratings
Device Voltage (Vdd)
Current (Idd)
Power Dissipation (PDC)
RF Input Power (RFin)
Junction Temperature
Thermal Resistance
Storage Temperature (Tstg)
Operating Temperature
ESD (HBM)
Moisture Sensitivity Level (MSL)
+9.0 V
750 mA
6.0W
+25 dBm
175 ºC
18 ºC/W
-55 ºC to +150 ºC
-40 ºC to +85 ºC
Class 1A
MSL 3
Typical Performance: 8V, 25 ºC
Parameter
Typical
Units
MHz
dB
dBm
dBm
mA
dB
dB
Frequency (F)
3600
Gain (S21)
10.5
Ourput IP3 (OIP3)
47.0
Output P1dB
34.0
Quiescent Current (Idq)
600
Input Return Loss (S11)
-6.3
Output Return Loss (S22) -12.6
4900
10.0
46.0
33.7
600
-8.0
-11.5
Operation of this device beyond any of these parameters may cause
permanent damage.
Electrical Characteristics (T=25ºC,Vdd=8V)
Parameter
Condition
Frequency Range (F)
Test Frequency
Small Signal Gain (S21)
Externally matched
Output Intercept Point (OIP3) Pout/Tone=22 dBm, Spacing=5 MHz
Output P1dB
Quiescent Current (Icq)
Noise Figure (NF)
Unless otherwise specified, the following specifications are guaranteed at room temperature in a Mimix test fixture.
Units Min
Typ
Max
MHz DC
5000
MHz
2000
12.5 14.5
dB
dBm +44.0 +46.5
dBm +33.0 +34.0
mA
600.0 700.0
dB
5
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 1 of 9
Characteristic Data and Specifications are subject to change without notice.
©2010
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
DC-5.0 GHz
34.0 dBm Packaged HFET
May 2010 - Rev 25-May-10
F1000-DB

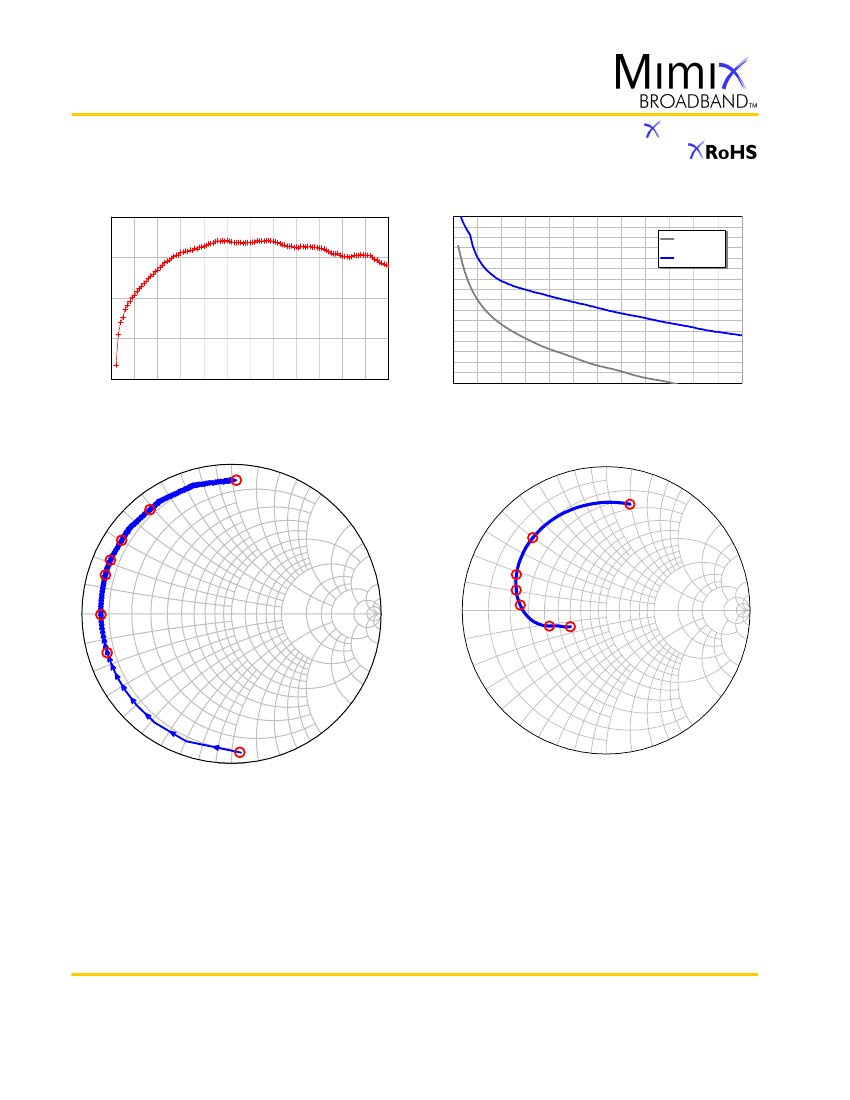

S-parameters: (Vdd=8V, Idd=600 mA)
-34
S12
-36
-40
-42
0
0.5
1
1.5
2
2.5
3
3.5
Frequency (GHz)
4
4.5
5
5.5
6
dB
-38
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
0
0
0.5
1
1.5
2
S21
DB(|S(2,1)|)
DB(GMax())
dB
2.5
3
3.5
Frequency (GHz)
4
4.5
5
5.5
6
S11
6
6
0.
S22
Swp Max
6GHz
2.
0
1.0
6.0 GHz
6 0 GH
2.4 GHz
0.2
0
3.
4.
0
3.5 GHz
0.2
2.0 GHz
1.6 GHz
5.0
10.0
2.4 GHz
0.4
0.6
3.0
1.0
2.0
4.0
10.0
0.8
0.2
5.0
2.0 GHz
0.9 GHz
0
0.9 GHz
0.8
10.0
0.4
2.0
0.2
0.6
1.0
3.0
4.0
5.0
0
.0
-2
-0.8
-0
-0.8
Swp Min
0.1GHz
S-Parameters files are available for download at www.mimixbroadband.com.
-1.0
-1.0
0.1 GHz
.6
-0
.6
.
-2
.4
-0
.4
-0
0
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 2 of 9
Characteristic Data and Specifications are subject to change without notice.
©2010
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
-4
.0
-5.
0
-3
.0
-5.
-4
0
-0.
2
0.5 GHz
.0
2
-0.
Swp Min
0.1GHz
-10.0
0.
4
3.5 GHz
2.
0
6.0 GHz
0.
Swp Max
6GHz
0.8
0.8
1.0
-10.0
-3
.0
0.
4
0
3.
0
4.
5.0
10.0
0.5 GHz
0.1
0 1 GHz
DC-5.0 GHz
34.0 dBm Packaged HFET
May 2010 - Rev 25-May-10
F1000-DB

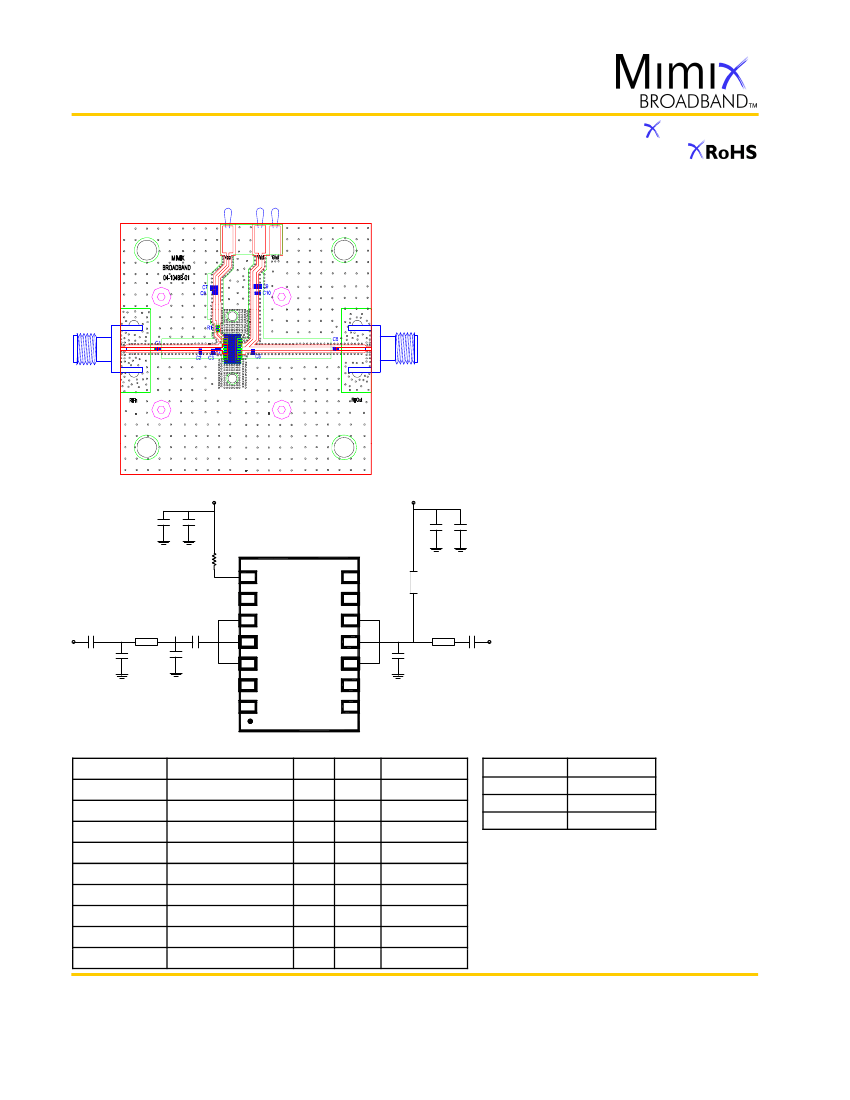

Evaluation Board: (3.6 GHz)
Vgg GND Vdd
RF in
RF out
Recommended Schematic
C7
C8
C10
C9
R1
TL3
C1
C2
TL1
C3
C4
C5
TL2
C6
Component Values
REF. Designator
R1
C1
C2
C3
C4
C5
C6
C7, 9
C8, C10
DESCRIPTION
RESISTOR, 100Ohm 0402
0 ohm link
CAPACITOR, 2.2pF 0402
CAPACITOR, 4.0pF 0402
CAPACITOR, 2.2pF 0402
CAPACITOR, 1.6pF 0402
CAPACITOR, 20pF 0402
CAPCITOR, 1uF 0603
CAPACITOR, 10nF 0402
QTY
1
1
1
1
1
1
1
1
1
TYP
100
Ω
0Ω
2.2pF
4.0pF
2.2pF
1.6pF
20pF
1uF
10nF
Page 3 of 9
TOLERANCE
Ref Designator
TL1
TL2
TL3
Electrical Length
50Ω, 20.8°
50Ω, 9.3°
50Ω, 77°
0.05pF
0.05pF
0.05pF
0.05pF
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Characteristic Data and Specifications are subject to change without notice.
©2010
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
DC-5.0 GHz
34.0 dBm Packaged HFET
May 2010 - Rev 25-May-10
F1000-DB

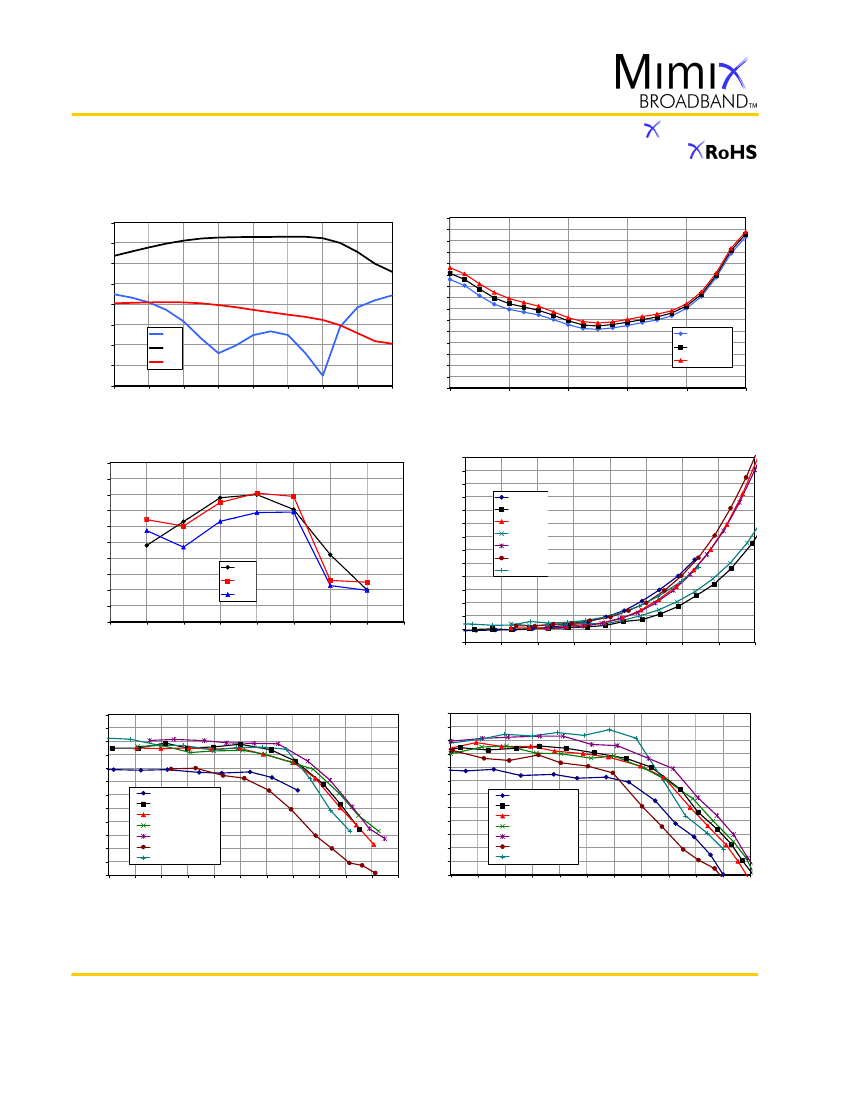

Typical Performance: 3.6 GHz (Evaluation Board)
15
10
5
NF (dB
B)
XF1000-DB: 3.6 GHz Evaluation Board, S-parameters
0
(dB)
-5
-10
-15
-20
-25
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
4
S11
S21
S22
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
XF1000-DB: 3.6 GHz Evaluation Board, NF vs. Frequency
Id=400mA
Id=500mA
Id=600mA
3000
3200
3400
3600
3800
4000
Frequency (GHz)
Frequency (MHz)
XF1000-DB: 3.6 GHz Evaluation Board, P1dB vs. Frequency
35
34.5
34
33.5
P
P1dB (dBm)
33
32.5
32
31.5
31
30.5
30
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
4
25C
85C
-40C
XF1000-DB: 3.6 GHz Evaluation Board, EVM vs. Pout vs. Frequency
7
6
5.5
5
4.5
)
EVM (%)
4
3.5
3
2.5
2
1.5
1
0.5
0
20
21
22
23
24
25
26
27
28
FREQ=3.3
FREQ=3.4
FREQ=3.5
FREQ=3.6
FREQ=3 6
FREQ=3.7
FREQ=3.8
FREQ=3.9
6.5
(GHz)
Frequency (GH )
F
Pout (dBm)
50
49
48
47
OIP3(dBm)
)
46
45
44
43
42
41
40
39
38
XF1000-DB: 3.6 GHz Evaluation BoardOIP3 vs. Pout, 25°C
50
49
48
47
OIP3(dBm)
)
46
45
44
43
42
41
40
39
38
XF1000-DB: 3.6 GHz Evaluation Board, OIP3 vs. Pout, 85°C
Freq(GHz)=3.3
Freq(GHz)=3.4
Freq(GHz)=3.5
Freq(GHz)=3.6
Freq(GHz)=3.7
Freq(GHz)=3.8
Freq(GHz)=3.9
Freq(GHz)=3.3
Freq(GHz)=3.4
Freq(GHz)=3.5
Freq(GHz)=3.6
Freq(GHz)=3.7
Freq(GHz)=3.8
Freq(GHz)=3.9
22
23
24
25
26
27
28
29
30
31
32
33
22
23
24
25
26
27
28
29
30
31
32
33
Pout(dBm)
Pout(dBm)
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 4 of 9
Characteristic Data and Specifications are subject to change without notice.
©2010
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
DC-5.0 GHz
34.0 dBm Packaged HFET
May 2010 - Rev 25-May-10
F1000-DB

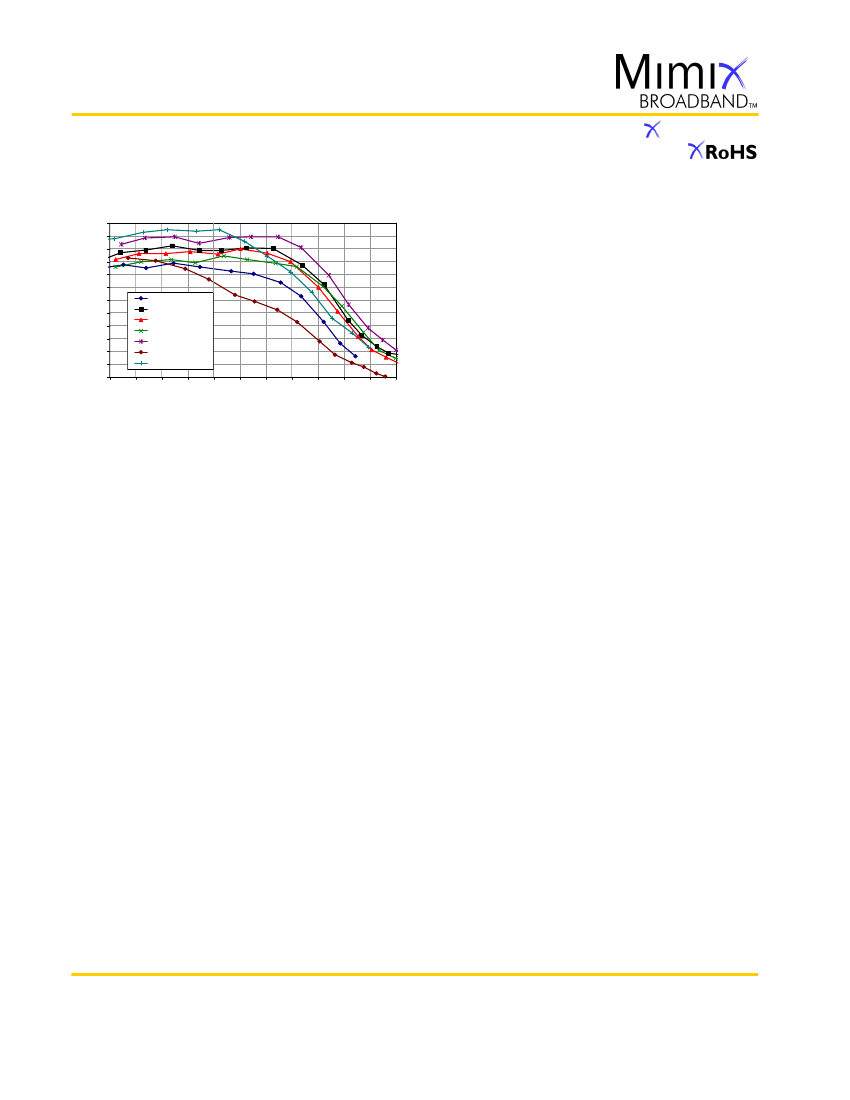

Typical Performance: 3.6 GHz (Evaluation Board) (cont.)
XF1000-DB: 3.6 GHz Evaluation Board, OIP3 vs. Pout, -40 ºC
50
49
48
47
OIP3(dB
Bm)
46
45
44
43
42
41
40
39
38
22
23
24
25
26
27
28
29
30
31
32
33
Freq(GHz)=3.3
Freq(GHz)=3.4
Freq(GHz)=3.5
Freq(GHz)=3.6
Freq(GHz)=3.7
Freq(GHz)=3.8
Freq(GHz)=3.9
Pout(dBm)
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 5 of 9
Characteristic Data and Specifications are subject to change without notice.
©2010
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
