98538-524024 datasheet, PDF - EEWORLD Datasheet

98538-524024: DescriptionTelecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size463KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

98538-524024 Overview

Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99

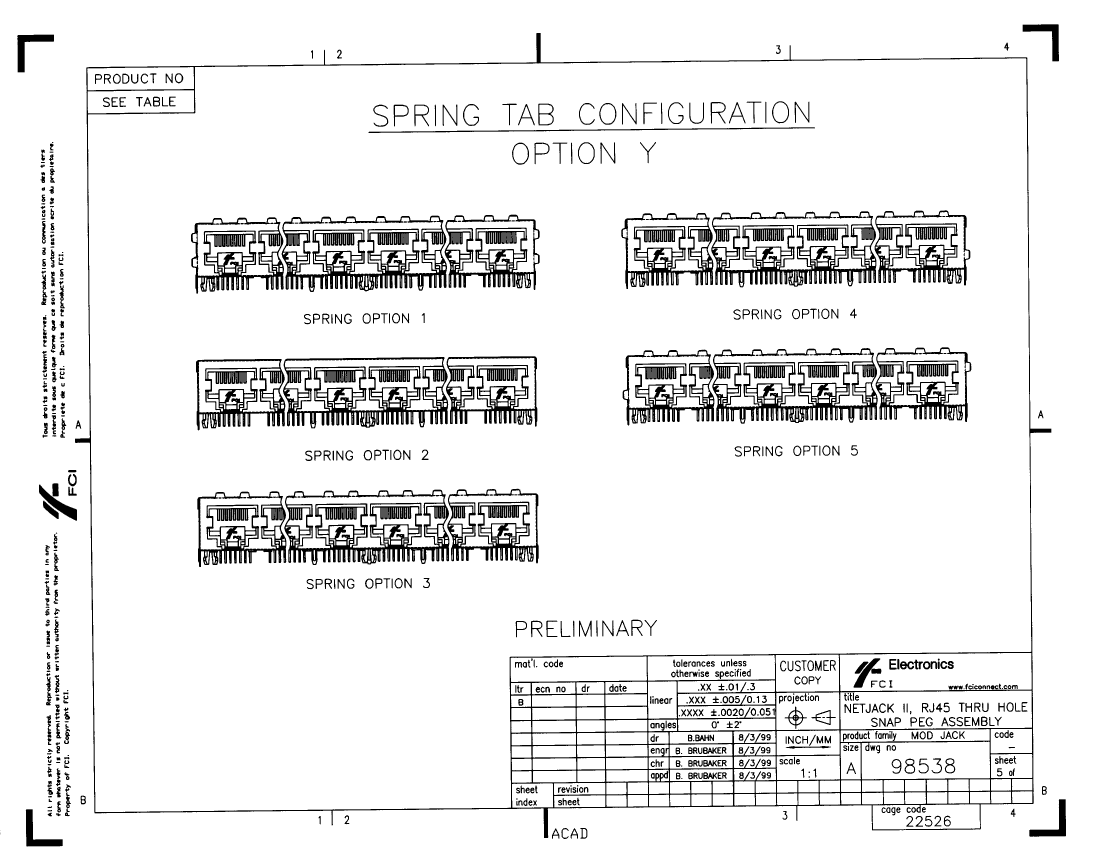

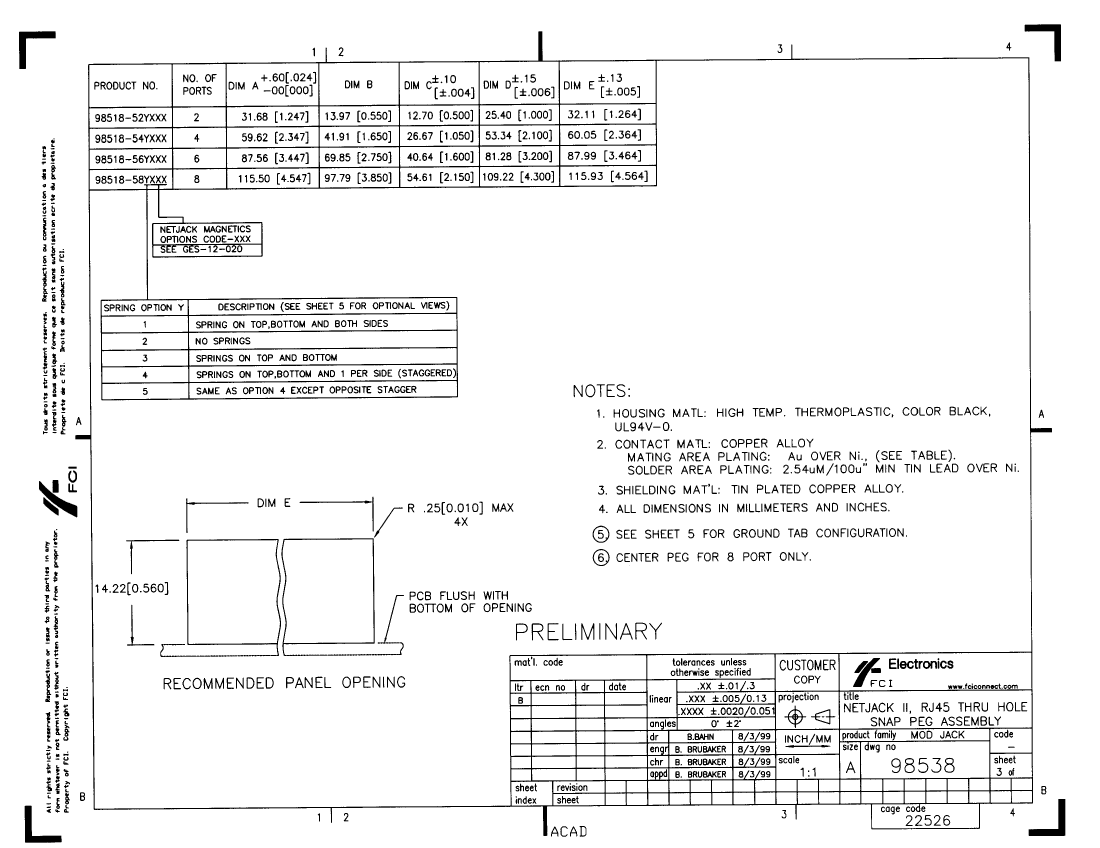

Other features	TOP,BTM&PER SIDE STAG SPRINGS
Board mount options	SPLIT BOARD LOCK

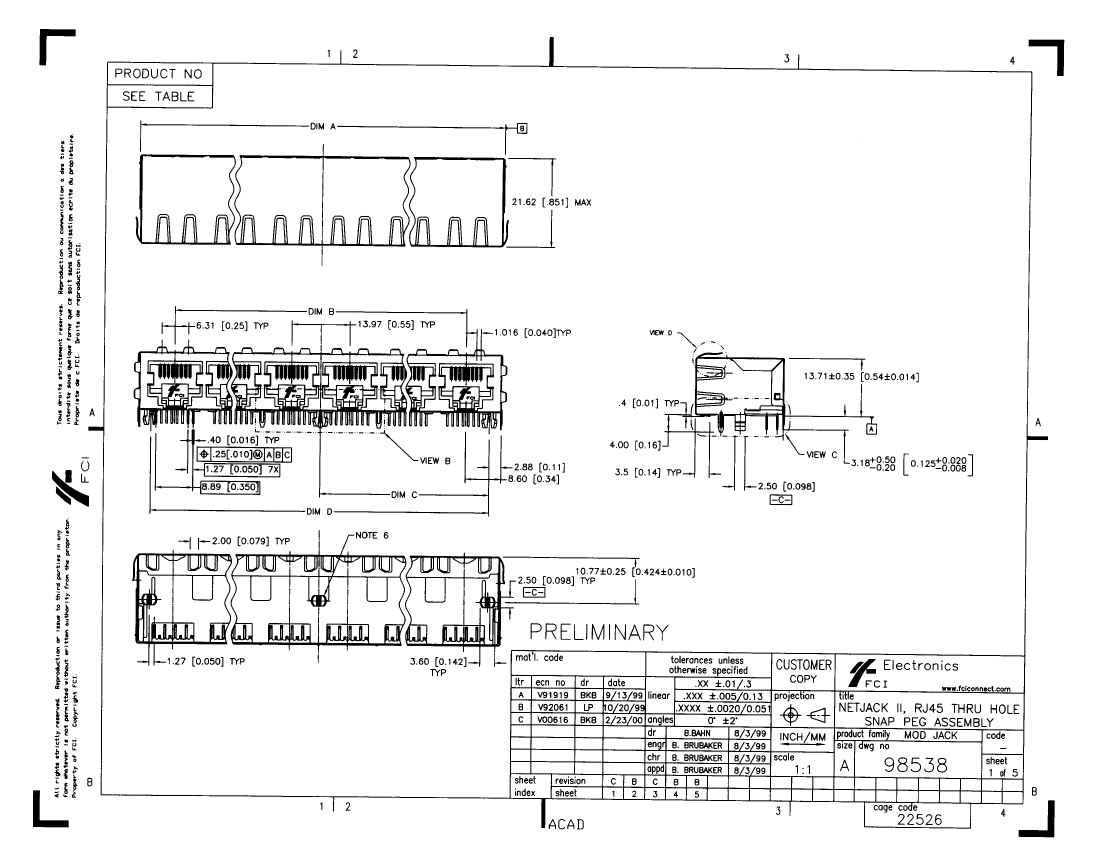

body width	0.54 inch
subject depth	0.851 inch
body length	1.247 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Durability	1000 Cycles
maximum insertion force	3.4472 N
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	2
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C

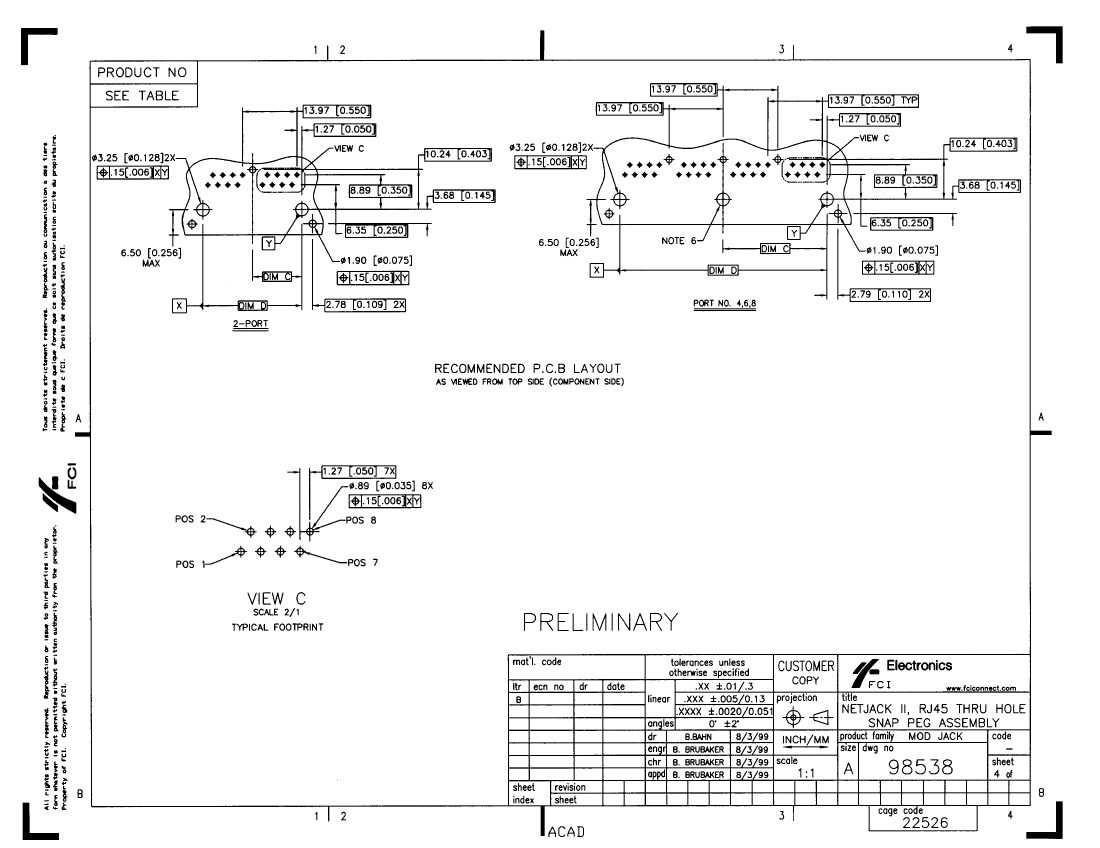

PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	0.05 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	COPPER ALLOY
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
