890-005-15GPS-2A1-12JT datasheet, PDF

Datasheet> All Categories > The connector> The connector> 890-005-15GPS-2A1-12JT

890-005-15GPS-2A1-12JT: DescriptionInterconnection Device; CategoryThe connector The connector; File Size195KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

890-005-15GPS-2A1-12JT Overview

Interconnection Device

890-005-15GPS-2A1-12JT Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Connector type	INTERCONNECTION DEVICE

Preview

Download Datasheet

View All

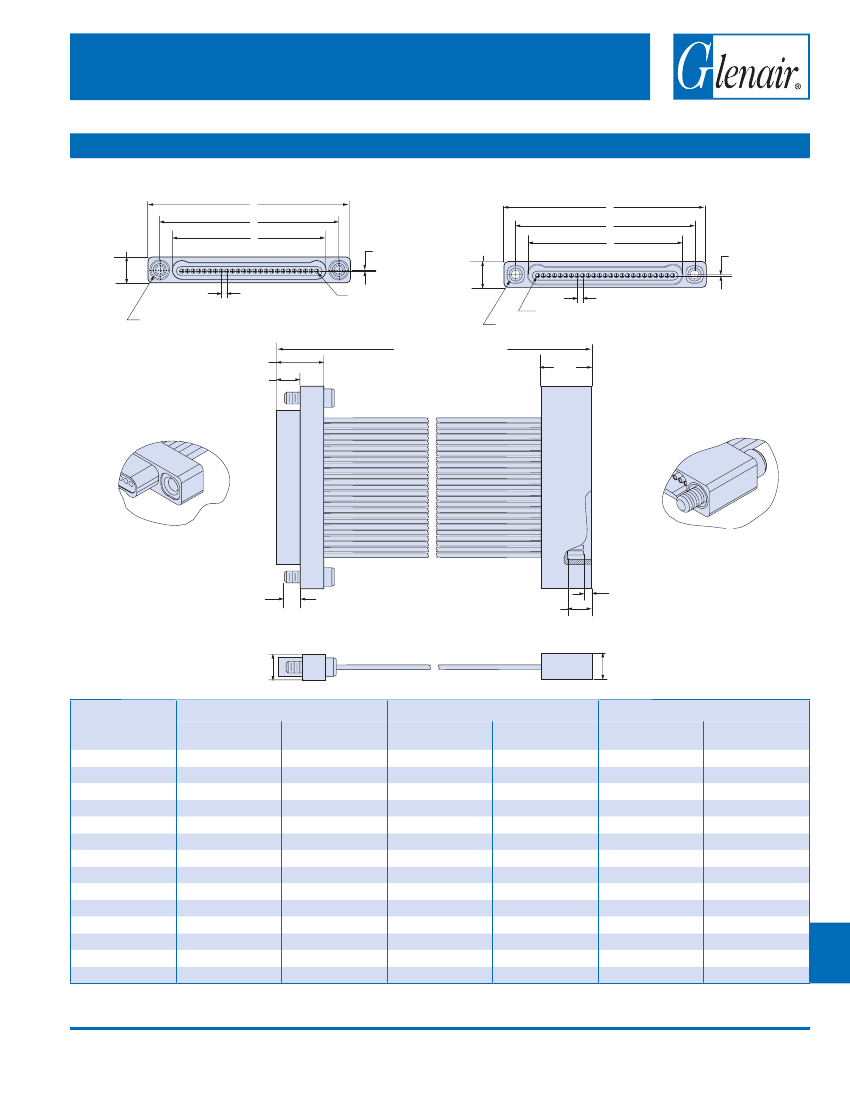

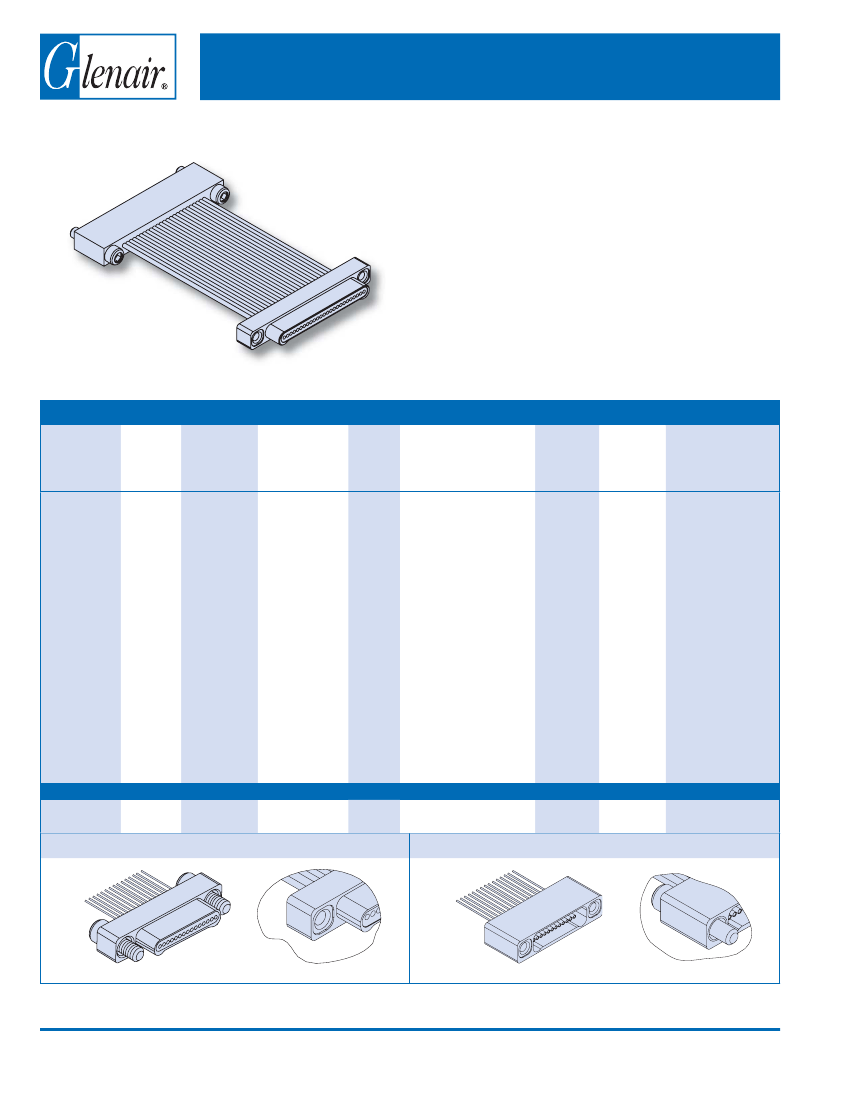

Series 89 Nanominiature Connectors

Single Row Back-To-Back Cables

890-005

Glenair’s Back-To-Back Nano Connectors

feature gold

alloy NanoPin contacts. Contacts are precision-crimped

to insulated, stranded wire. These nanomimiature

connectors offer premium preformance and reliability

for demanding applications. Contact spacing is .025

inches. 1 amp current rating, DWV rating 300 volts AC.

Wire gages #30 and #32 AWG.

NanoPin Contact System

assures premium performance in

demanding environments. The gold/platinum alloy contacts

will stand up to years of exposure without corrosion.

Typical Applications

include UAV's, satellites, missile

systems and geophysical instruments.

HOW TO ORDER SINGLE ROW BACK-TO-BACK JUMPERS

Number

Connector Shell Material

Contacts

Type

and Finish

Wire

Gage

#30

AWG

Series

890-005

Back-To-

Back Cables,

Single Row,

Nanominiature

Wire Type

Ultralightweight XLETFE

Insulation, Silver-Coated

Ultrahigh-Strength Copper

(Not available for #32 gage)

Wire

Color

Code

–

White

–

Yellow

–

Ten

Color

Repeat

Length

Inches

Overall

Length

In Inches

Hardware

= Jackscrews on

both ends (GP, GS, CS)

Plug (Pin)

Aluminum Shell,

Connector on Cadmium Plating

Both Ends

= Jackscrews on

Receptacle

(Socket)

Connector on

Both Ends

Aluminum Shell,

Electroless

Nickel Plating

#32

AWG

Including

plug, threaded holes on

Connectors

receptacle (CS)

Example:

“12”

speciﬁes

12 inches

OAL

Extruded PTFE Insulation,

NEMA HP3-ETX

(MIL-W-16878/6)

= Jackscrews on

plug, threaded holes on

plug (GP)

= Jackscrews on

receptacle, threaded

holes on plug (CS)

Plug (Pin)

On One End,

Receptacle On

The Other End

Titanium Shell,

Unplated

Cross-Linked Modiﬁed

ETFE Insulation,

MIL-W-22759/33

(Not available for #32 AWG)

Stainless Steel

Shell, Passivated

= Jackscrews on

receptacle, threaded

holes on receptacle

(GS)

= Threaded holes

both ends (GP, GS, CS)

Sample Part Number

890-005

– 9

– 0

– 12

PLUG (PIN) CONNECTOR

RECEPTACLE (SOCKET) CONNECTOR

“J” Jackscrew Option

“T” Threaded Insert Option

“J” Jackscrew Option

CAGE Code 06324/0CA77

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

P-10

E-Mail: sales@glenair.com
