epitex
Opto-Device & Custom LED
5
MOLD LED LAMP L735-04AU
Lead ( Pb ) Free Product – RoHS Compliant
L735-04AU
Specifications
1) Product Name
2) Type No.
3) Chip
(1) Chip Material
AlGaAs
(2) Chip Active Area 400um x 400um
(3) Peak Wavelength 735nm typ.
4) Package
(1) Type
(2) Resin Material
(3) Lead Frame
5mm
clear molding
Epoxy Resin
Soldered (Lead Frame)
Infrared LED Lamp
L735-04AU
Infrared LED Lamp
L735-04AU is an AlGaAs LED mounted on a lead frame with a clear epoxy lens.
On forward bias it emits a spectral band of radiation, which peaks at 735nm.
Outer
dimension (Unit: mm)
Absolute
Maximum Ratings [Ta=25°C]
Item
Symbol
Power Dissipation
P
D
Forward Current
I
F
Pulse Forward Current
I
FP
Reverse Voltage
V
R
Thermal Resistance
R
thja
Junction Temperature
T
j
Operating Temperature
T
OPR
Storage Temperature
T
STG
Soldering Temperature
T
SOL
Maximum Rated Value
150
75
500
5
240
120
-40 ~ +100
-40 ~ +100
250
Unit
mW
mA
mA
V
K/W
°C
°C
°C
°C
‡Pulse Forward Current condition: Duty=1% and Pulse Width=10us.
‡Soldering condition: Soldering condition must be completed within 3 seconds at 250°C
Electro-Optical
Characteristics [Ta=25°C typ.]
Item
Symbol Condition
Forward Voltage
V
F
IF=50mA
Radiated Power
P
O
IF=50mA
Total Radiated Power
I
E
IF=50mA
Peak Wavelength
P
IF=50mA
Half Width
IF=50mA
Viewing Half Angle
IF=50mA
Rise Time
tr
IF=50mA
Fall Time
tf
IF=50mA
Minimum
18
30
720
Typical
1.85
25
42
735
25
±19
35
60
Maximum
2.00
750
Unit
V
mW
mcd
nm
nm
deg.
ns
ns
‡Radiated Power is measured by S3584-08.
‡Radiant Intensity is measured by CIE127-2007 Condition B.
EPITEX INC.: 66-3 Minami-Kawabe Cho, Higashi-Kujyo, Minami-Ku, Kyoto, Japan
Tel: ++81-75-682-2338
Fax: ++81-75-682-2267
e-mail : sales-dep@epitex.com
http://www.epitex.com/
epitex
1000
8
6
4
Opto-Device & Custom LED
5
MOLD LED LAMP L735-04AU
Lead ( Pb ) Free Product – RoHS Compliant
Forward Curent - Forward Voltage
(ta=25°C, tw=10s, Duty=1%)
Relative Radiant Intensity -
Forward Current
(ta=25°C, tw=10s, Duty=1%)
Relative Radiant Intensity (A.U.)
10
50mA Standard
Forward Current (mA)
2
100
8
6
4
1
2
10
8
6
4
0.1
2
1
0.0
0.01
1.0
2.0
3.0
4.0
5.0
2
4
6 8
2
4
6 8
2
4
1
10
100
Forward Voltage (V)
Forward Current (mA)
Forward Current - Pulse Duration
1000
9
8
7
6
5
Allowable Forward Current -
Ambient Temperature
100
Rthja=240K/W
Allowable Forward Current(mA)
4
90
80
70
60
50
40
30
20
10
0
Forward Current Ifp [mA]
4
3
2
100
9
8
7
6
5
4
3
10kHz
100Hz
1kHz
10Hz
10
-3
10
10
-2
10
-1
10
0
10
1
10
2
10
3
1Hz
2
10
0
20
40
60
80
100
120
Duration tw [ms]
Ambient Temperature (°C)
EPITEX INC.: 66-3 Minami-Kawabe Cho, Higashi-Kujyo, Minami-Ku, Kyoto, Japan
Tel: ++81-75-682-2338
Fax: ++81-75-682-2267
e-mail : sales-dep@epitex.com
http://www.epitex.com/
epitex
2.6
Opto-Device & Custom LED
5
MOLD LED LAMP L735-04AU
Lead ( Pb ) Free Product – RoHS Compliant
Forward Voltage -
Ambient Temperture
10
Relative Radiant Intensity -
Ambient Temperature
Relative Radiant Intensity (A.U.)
9
8
7
6
5
4
3
If=50mA
2.4
If=50mA
Forward Voltage (V)
2.2
2.0
2
1.8
1
1.6
9
8
7
6
5
4
3
1.4
1.2
2
1.0
0
20
40
60
80
100
0.1
0
20
40
60
80
100
Ambient Temperatture (°C)
Ambient Temperature (°C)
Peak Wavelength -
Ambient Temperature
820
800
If=50mA
Peak Wavelength (nm)
780
760
740
720
700
680
660
640
0
20
40
60
80
100
Ambient Temperature (°C)
EPITEX INC.: 66-3 Minami-Kawabe Cho, Higashi-Kujyo, Minami-Ku, Kyoto, Japan
Tel: ++81-75-682-2338
Fax: ++81-75-682-2267
e-mail : sales-dep@epitex.com
http://www.epitex.com/
epitex
1.0
Opto-Device & Custom LED
5
MOLD LED LAMP L735-04AU
Lead ( Pb ) Free Product – RoHS Compliant

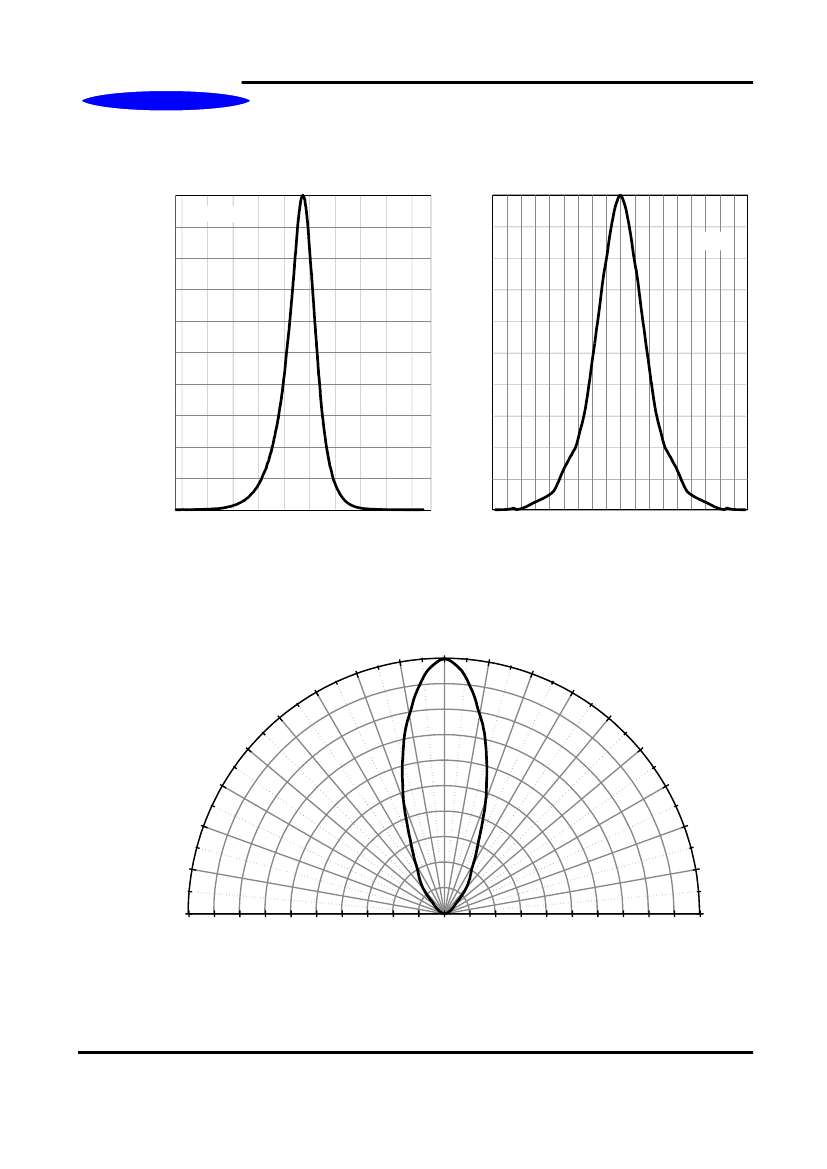

Relative Spectral Emission
1.0
Radiation Characteristics
(ta=25°C)
Relative Radiant Intensity (A.U.)
Relative Radiant Intensity (A.U.)
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
640
680
720
760
800
0.9
±19
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
-90
-60
-30
0
30
60
90
Wavelength (nm)
Angle (deg.)
Radiation Characteristics
-20
-30
-40
-10
0
10
20
30
40
50
60
70
80
±19
Angle (deg.)
-50
-60
-70
-80
-90
1 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1
90
Relative Radiant Intensity (A.U.)
EPITEX INC.: 66-3 Minami-Kawabe Cho, Higashi-Kujyo, Minami-Ku, Kyoto, Japan
Tel: ++81-75-682-2338
Fax: ++81-75-682-2267
e-mail : sales-dep@epitex.com
http://www.epitex.com/
epitex
Opto-Device & Custom LED
5
MOLD LED LAMP L735-04AU
Lead ( Pb ) Free Product – RoHS Compliant
Disclaimer
Product specifications and data shown in this product catalog are subject to change
without notice for the purposes of improving product performance, reliability, design, or
otherwise.
Product data and parameters in this catalog are typical values based on reasonably
up-to-date measurements.
application and over time.
Products shown in this catalog are intended to be used for general electronic
equipment. Products are not guaranteed for applications where product malfunction
or failure may cause personal injury or death, including but not limited to life-supporting
/ saving devices, medical devices, safety devices, airplanes, aerospace equipment,
automobiles, traffic control systems, and nuclear reactor control systems.
Product data and parameters may vary by user
2014.1
