Z86C40-08PEC datasheet, PDF - EEWORLD Datasheet

Z86C40-08PEC: DescriptionMicrocontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PDIP40,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size3MB，60 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

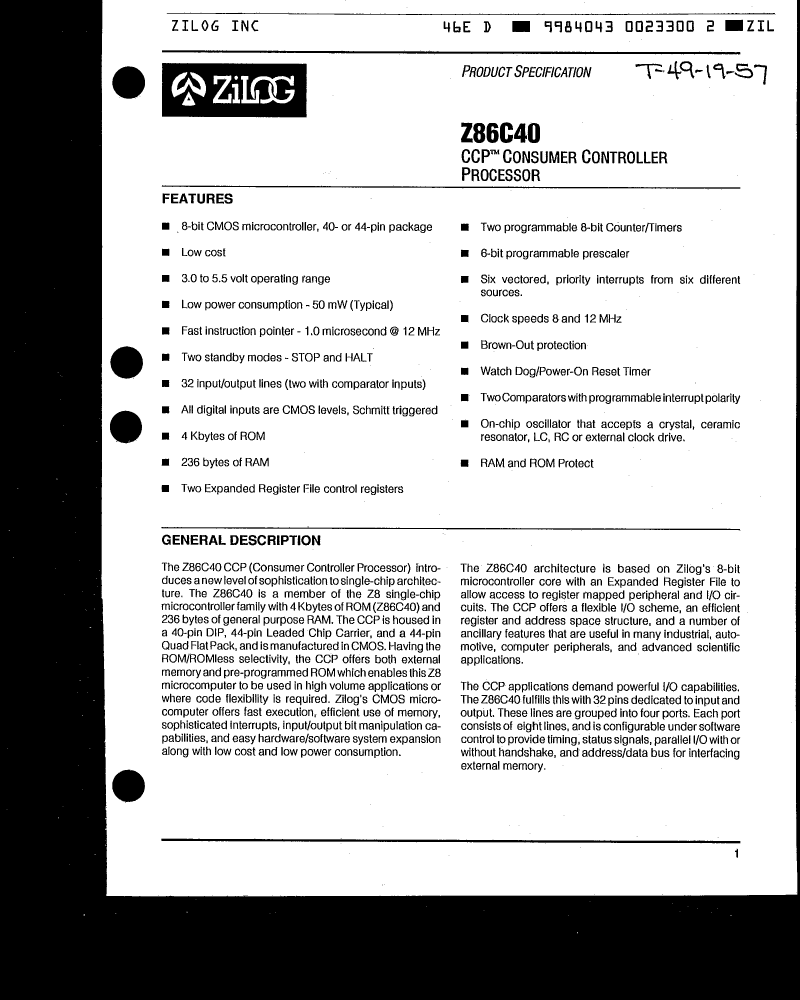

Z86C40-08PEC Overview

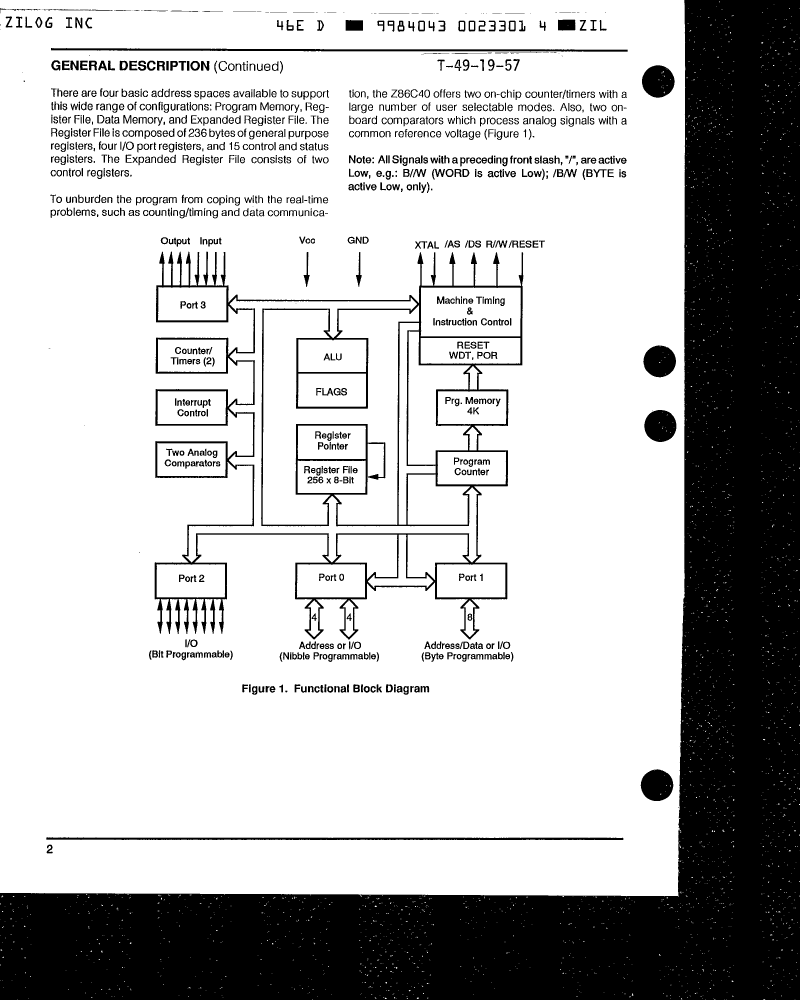

Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PDIP40,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IXYS
Reach Compliance Code	unknown
bit size	8
CPU series	Z8
JESD-30 code	R-PDIP-T40
length	52.325 mm

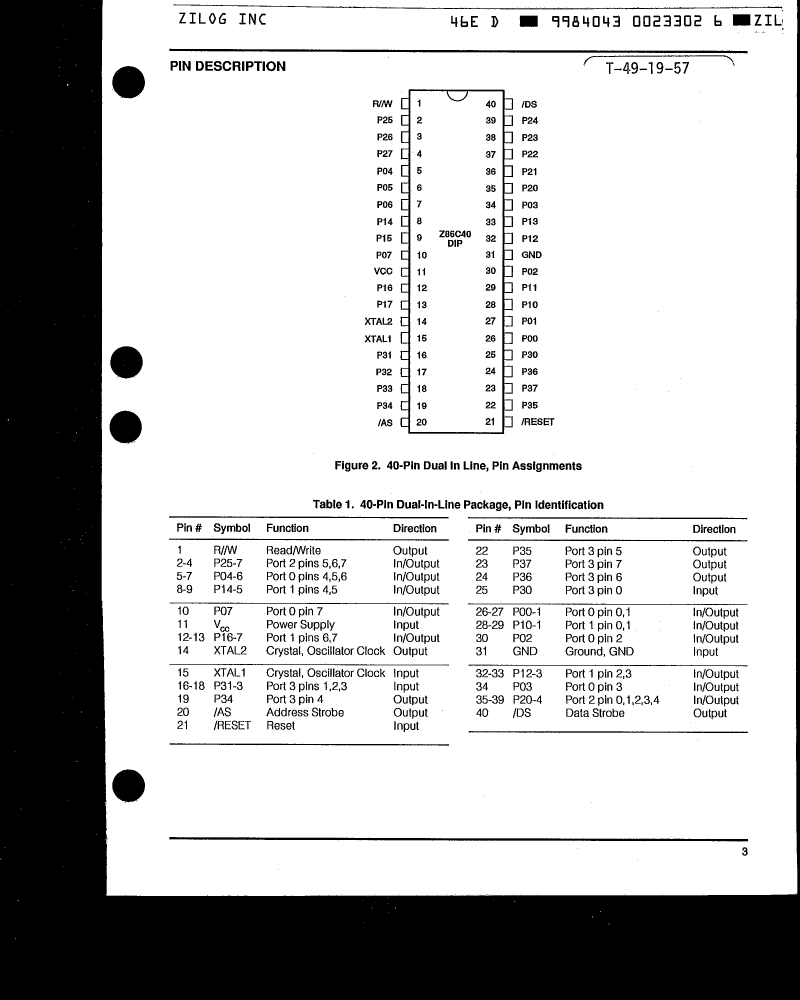

Number of terminals	40
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	3/5 V
Certification status	Not Qualified
RAM (bytes)	236
rom(word)	4096
ROM programmability	MROM
speed	4 MHz
Maximum slew rate	15 mA
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm

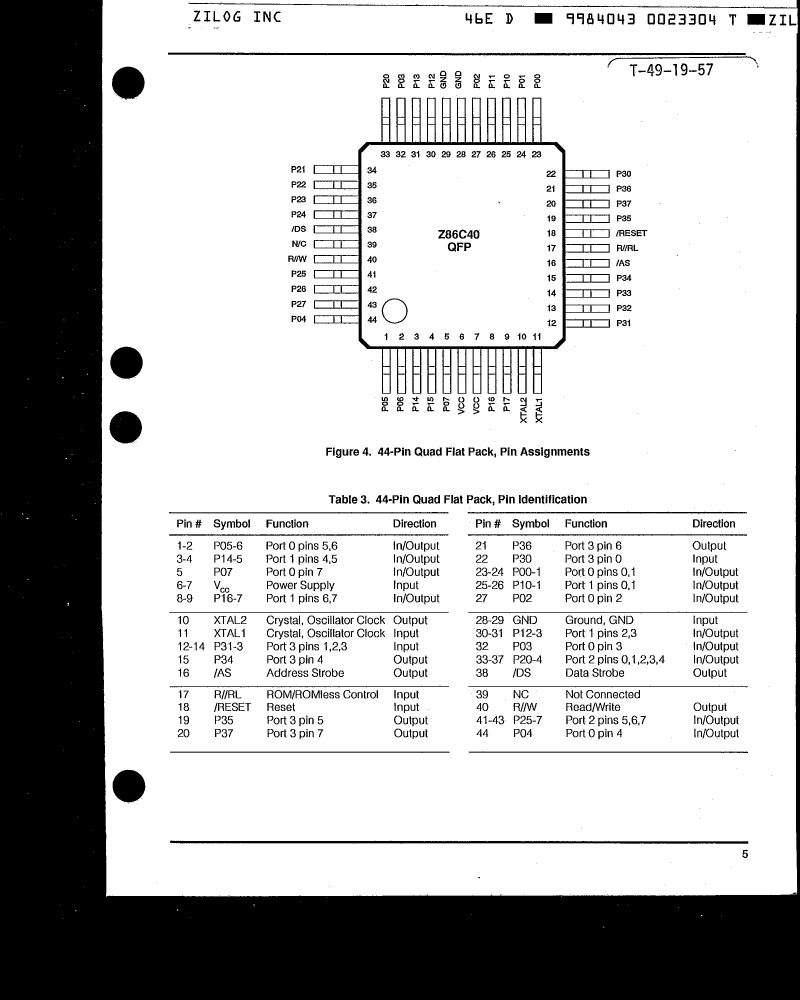

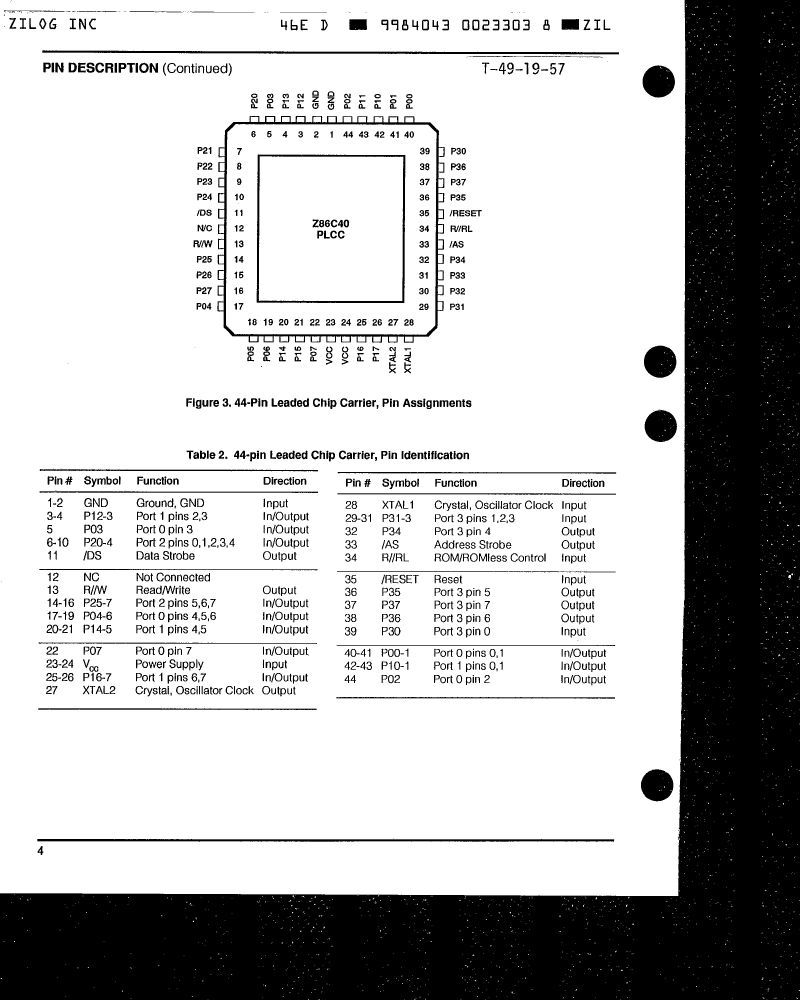

	Z86C40-08PEC	Z86C40-08PSC	Z86C40-08VSC
Description	Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PDIP40,	Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PDIP40,	Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PQCC44,
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	IXYS	IXYS	IXYS
Reach Compliance Code	unknown	unknown	unknown
bit size	8	8	8
CPU series	Z8	Z8	Z8
JESD-30 code	R-PDIP-T40	R-PDIP-T40	S-PQCC-J44
length	52.325 mm	52.325 mm	16.585 mm
Number of terminals	40	40	44
Maximum operating temperature	105 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	QCCJ
Encapsulate equivalent code	DIP40,.6	DIP40,.6	LDCC44,.7SQ
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	IN-LINE	CHIP CARRIER
power supply	3/5 V	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	236	236	236
rom(word)	4096	4096	4096
ROM programmability	MROM	MROM	MROM
speed	4 MHz	4 MHz	4 MHz
Maximum slew rate	15 mA	25 mA	15 mA
surface mount	NO	NO	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND
Terminal pitch	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD
width	15.24 mm	15.24 mm	16.585 mm
