SMA Female Connector Solder Attachment 2 Hole Flange
Stub Terminal, .481 inch Hole Spacing, .050 inch Diameter
TECHNICAL DATA SHEET
PE4128-SF
SMA Female Connector Solder Attachment 2 Hole Flange Stub Terminal, .481 inch Hole Spacing,
.050 inch Diameter
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
SMA Female
MIL-STD-348
Stub
Solder
Straight
2 Hole Flange
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
DC to 18
50
1.25:1
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
1.085 [27.56]
0.25 [6]
0.625 [15.88]
0.005 [2.27]
SMA Female
Beryllium Copper, Gold
MIL-G-45204, Type II, Class 2
Passivated Stainless Steel
QQ-P-35
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Female Connector Solder Attachment 2 Hole Flange Stub Terminal, .481 inch Hole
Spacing, .050 inch Diameter PE4128-SF
PE4128-SF REV
1
SMA Female Connector Solder Attachment 2 Hole Flange
Stub Terminal, .481 inch Hole Spacing, .050 inch Diameter
TECHNICAL DATA SHEET
PE4128-SF
SMA Female Connector Solder Attachment 2 Hole Flange Stub Terminal, .481 inch Hole Spacing, .050 inch Diameter from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic
products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Female Connector Solder Attachment 2 Hole Flange Stub Terminal, .481 inch Hole Spacing,
.050 inch Diameter PE4128-SF
URL:
http://www.pasternack.com/sma-female-standard-stub-terminal-connector-pe4128-sf-p.aspx
PE4128-SF REV
2
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE4128-SF

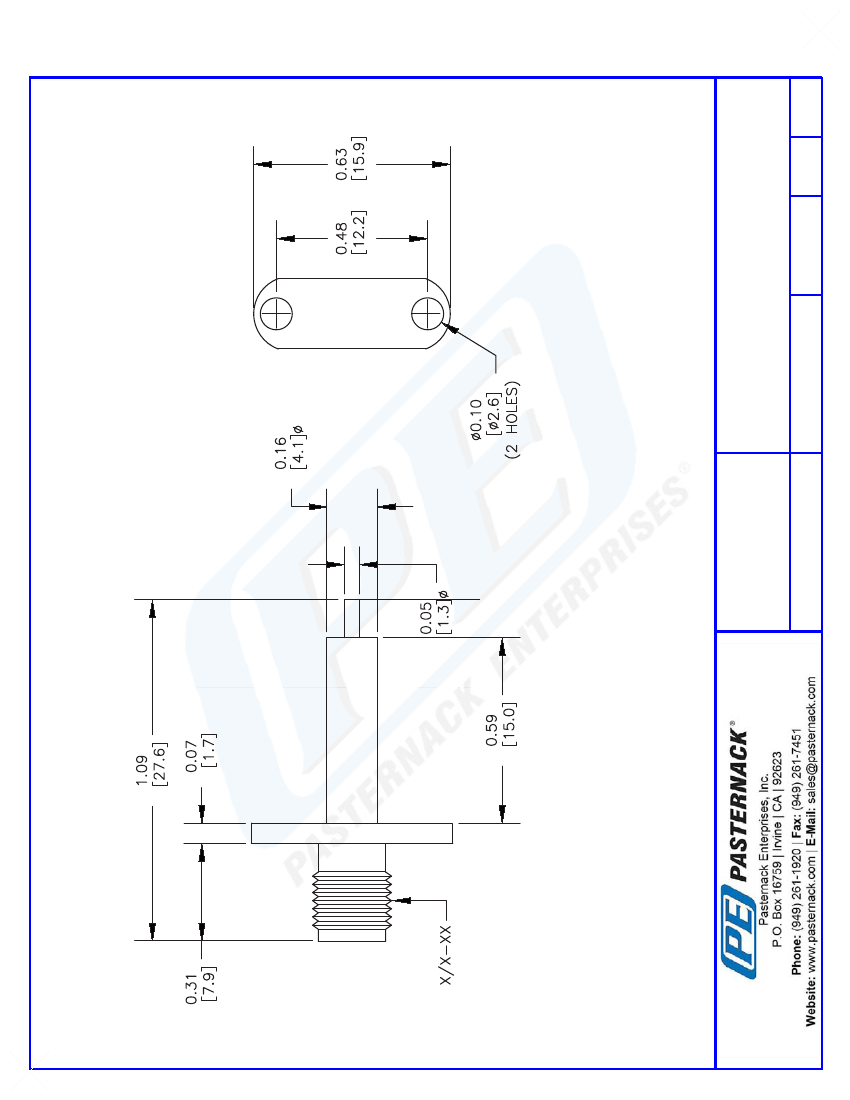

CAD Drawing
SMA Female Connector Solder Attachment 2 Hole Flange Stub
Terminal, .481 inch Hole Spacing, .050 inch Diameter
PE4128-SF REV
PE4128-SF
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
011904
SCALE N/A
SIZE A
XXXX
3
