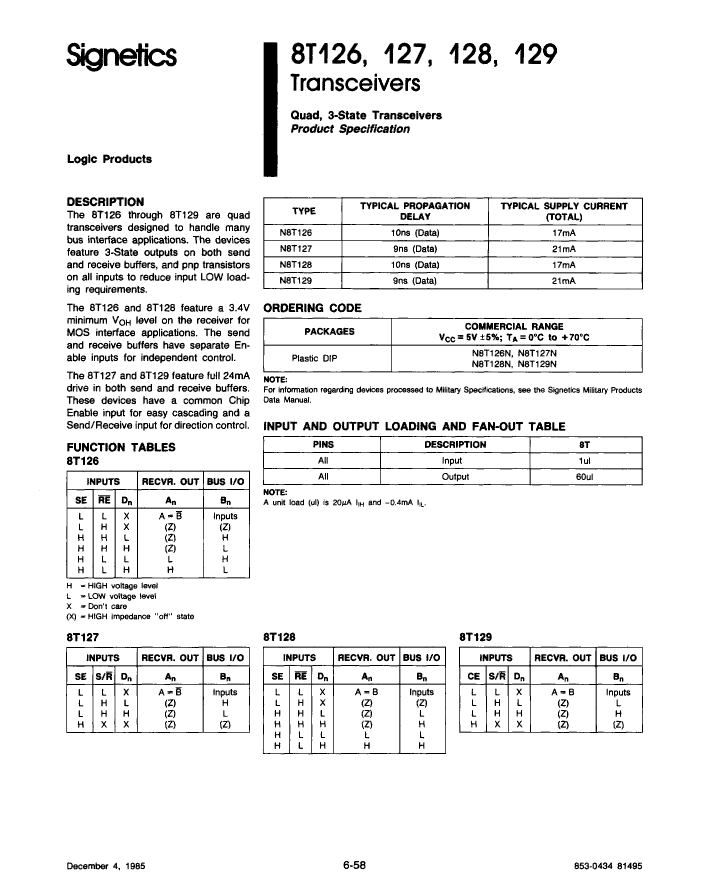

IC 8T SERIES, 4-BIT TRANSCEIVER, INVERTED OUTPUT, PDIP16, Bus Driver/Transceiver

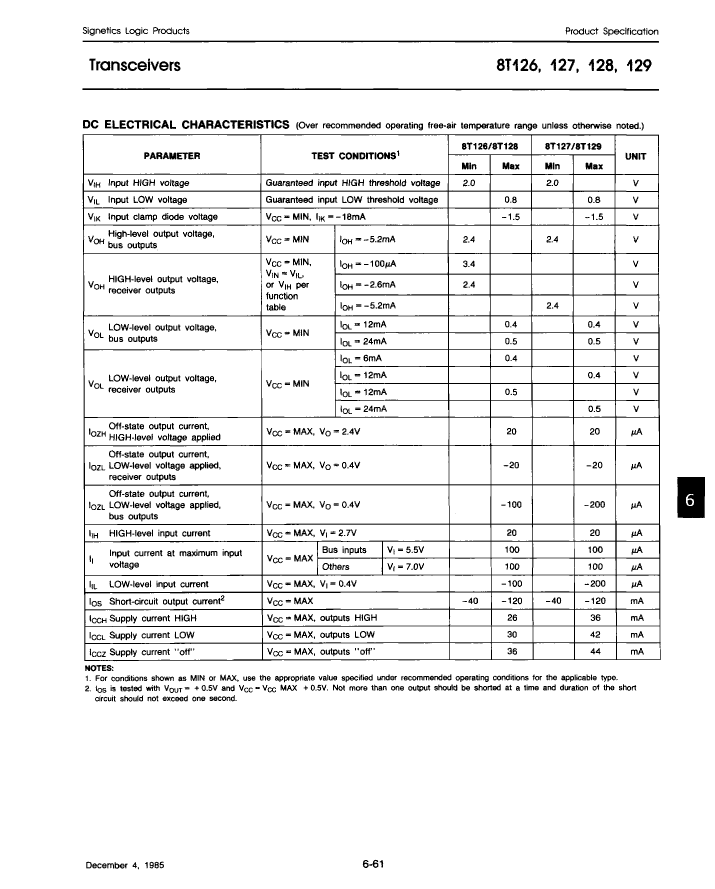

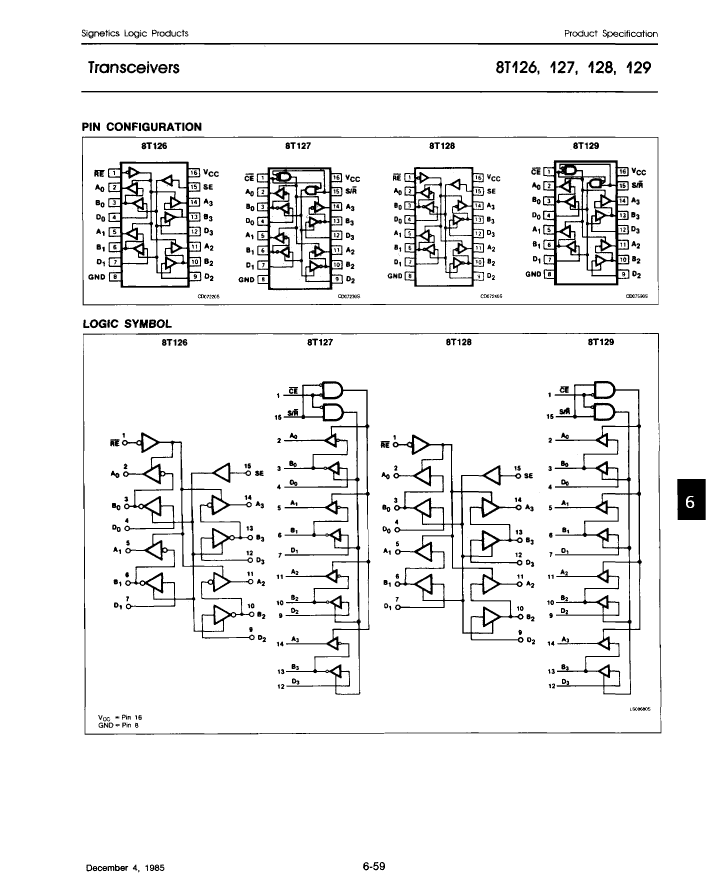

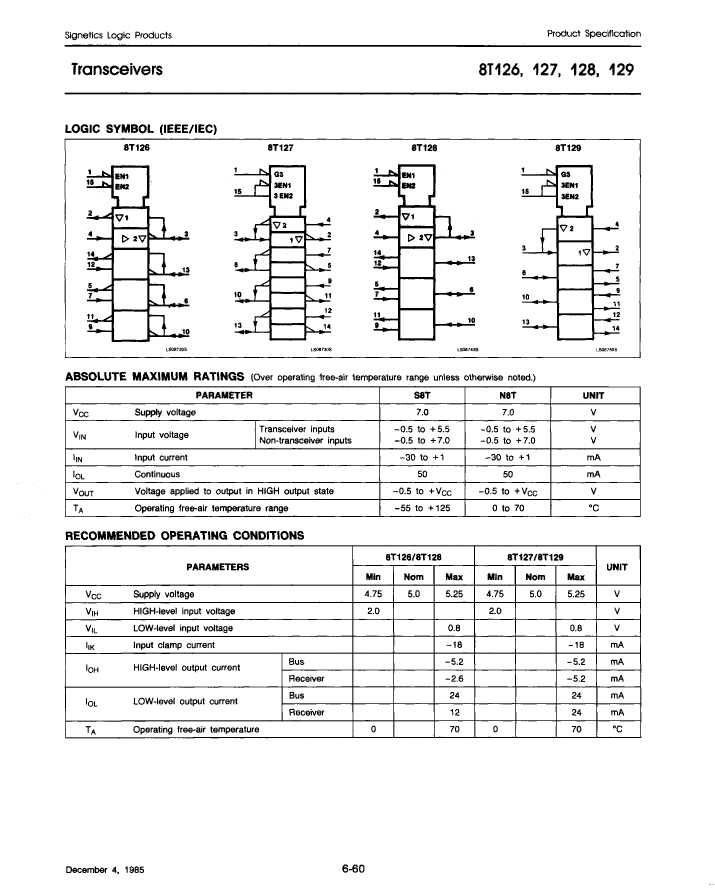

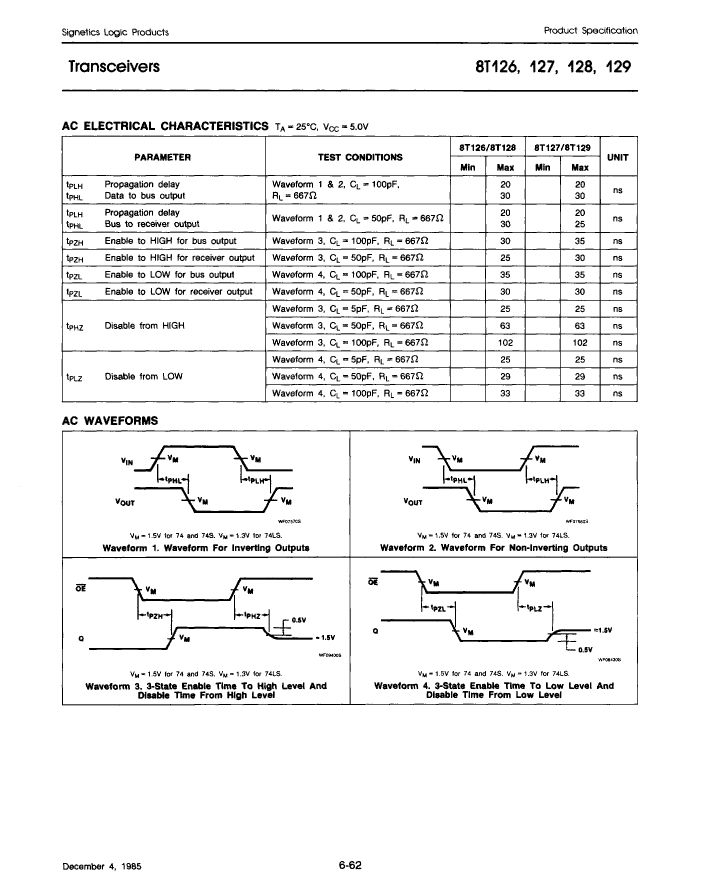

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | NXP |
| package instruction | DIP, DIP16,.3 |
| Reach Compliance Code | unknown |
| Other features | WITH DESIGNATED SEND AND RECEIVE |
| Control type | INDEPENDENT CONTROL |
| Counting direction | UNIDIRECTIONAL |
| series | 8T |
| JESD-30 code | R-PDIP-T16 |
| JESD-609 code | e0 |
| Logic integrated circuit type | BUS TRANSCEIVER |
| MaximumI(ol) | 0.024 A |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 16 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output characteristics | 3-STATE |
| Output polarity | INVERTED |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 5 V |
| Prop。Delay @ Nom-Sup | 30 ns |
| propagation delay (tpd) | 30 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| translate | N/A |
| N8T126N | N8T129N | N8T128N | N8T127N | |
|---|---|---|---|---|
| Description | IC 8T SERIES, 4-BIT TRANSCEIVER, INVERTED OUTPUT, PDIP16, Bus Driver/Transceiver | IC 8T SERIES, 4-BIT TRANSCEIVER, TRUE OUTPUT, PDIP16, Bus Driver/Transceiver | IC 8T SERIES, 4-BIT TRANSCEIVER, TRUE OUTPUT, PDIP16, Bus Driver/Transceiver | IC 8T SERIES, 4-BIT TRANSCEIVER, INVERTED OUTPUT, PDIP16, Bus Driver/Transceiver |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| package instruction | DIP, DIP16,.3 | DIP, DIP16,.3 | DIP, DIP16,.3 | DIP, DIP16,.3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Other features | WITH DESIGNATED SEND AND RECEIVE | WITH DESIGNATED SEND AND RECEIVE | WITH DESIGNATED SEND AND RECEIVE | WITH DESIGNATED SEND AND RECEIVE |
| Control type | INDEPENDENT CONTROL | COMMON CONTROL | COMMON CONTROL | COMMON CONTROL |
| Counting direction | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL |
| series | 8T | 8T | 8T | 8T |
| JESD-30 code | R-PDIP-T16 | R-PDIP-T16 | R-PDIP-T16 | R-PDIP-T16 |
| JESD-609 code | e0 | e0 | e0 | e0 |
| Logic integrated circuit type | BUS TRANSCEIVER | BUS TRANSCEIVER | BUS TRANSCEIVER | BUS TRANSCEIVER |
| MaximumI(ol) | 0.024 A | 0.024 A | 0.024 A | 0.024 A |
| Number of digits | 4 | 4 | 4 | 4 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 | 2 |
| Number of terminals | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | INVERTED | TRUE | TRUE | INVERTED |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | DIP | DIP | DIP |
| Encapsulate equivalent code | DIP16,.3 | DIP16,.3 | DIP16,.3 | DIP16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| power supply | 5 V | 5 V | 5 V | 5 V |
| Prop。Delay @ Nom-Sup | 30 ns | 30 ns | 30 ns | 30 ns |
| propagation delay (tpd) | 30 ns | 30 ns | 30 ns | 30 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.25 V | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO |
| technology | TTL | TTL | TTL | TTL |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| translate | N/A | N/A | N/A | N/A |
| Maker | NXP | - | NXP | NXP |
