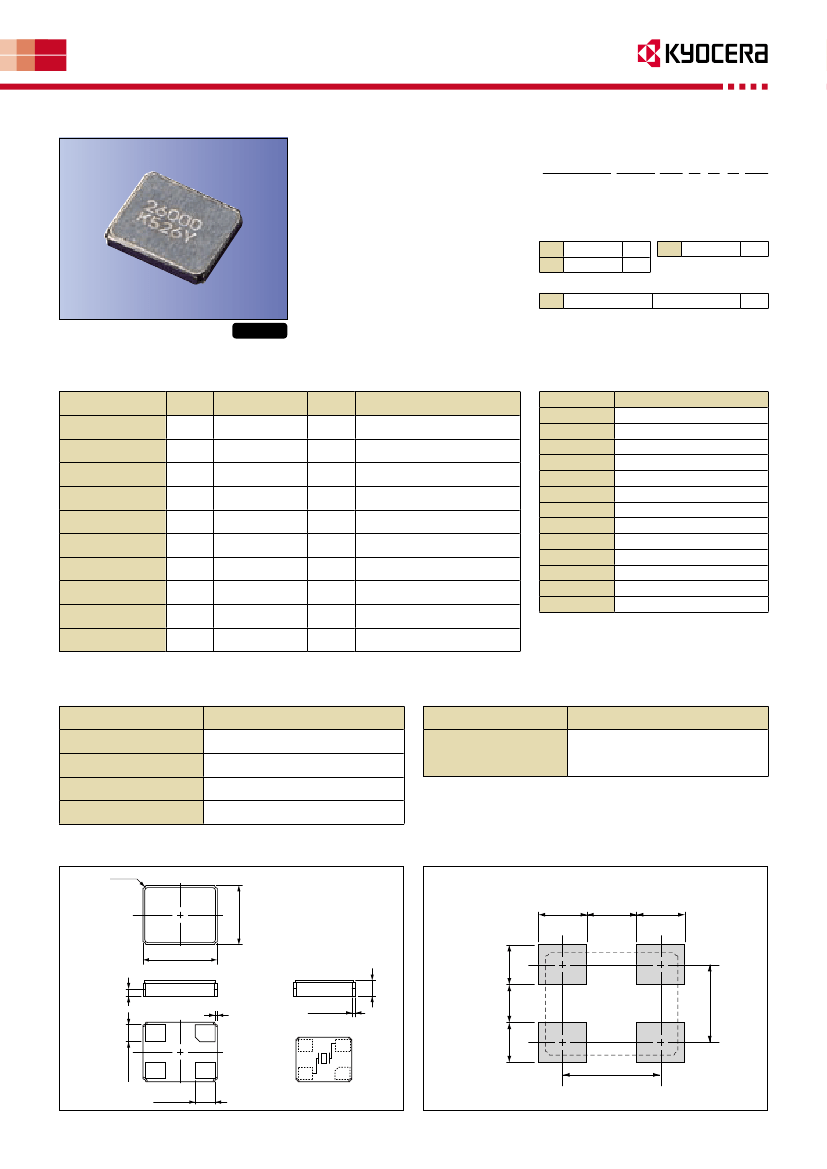

Crystal Units

Surface Mount Type CX2520DB

2.5×2.0mm for Consumer Products

Features

• Crystal unit for Consumer Products

• Ceramic package

• Reflow compatible

How to Order

CX2520DB 27000

□□ □ □ □ □□

①

②

③ ④⑤⑥ ⑦

①

Series

②

Frequency

③

Load Capacitance

6 pF

8 pF

—

Std.

Applications

• Digital Electronics

• Consumer Products

④

Frequency Stability

±15×10

Std.

⑤

Operating Temp. Range

⑥

Frequency Temp. Stability

-10

+70°C

±15×10

Std.

RoHS Compliant

⑦

Individual Specification

Packaging (Tape & Reel 3000/ 1000 pcs./ reel)

Specifications

Item

Series

Frequency Range

Overtone Order

Load Capacitance

Frequency Stability

Motional Series Resistance

Drive Level

Operating Temp. Range

Storage Temp. Range

Frequency Temp. Characteristics

Symbol

―

_nom

_tol

_use

_stg

_tem

Specification

CX2520DB

16000 to 54000

Fundamental

±15

Table 1

Table 2

-10

+70

-40

+85

±15

Units

―

kHz

―

×10

ohm

μW

°C

×10

Freq. deviation from the value at 25°C

25°C±3°C

Remarks

Typical Frequencies and Part Numbers

Frequency (kHz)

16000.000

19200.000

24000.000

24576.000

26000.000

27000.000

27120.000

30000.000

32000.000

37400.000

38400.000

40000.000

48000.000

Part Number

CX2520DB16000D0GEJZ1

CX2520DB19200D0GEJZ1

CX2520DB24000D0GEJZ1

CX2520DB24576D0GEJZ1

CX2520DB26000D0GEJZ1

CX2520DB27000D0GEJZ1

CX2520DB27120D0GEJZ1

CX2520DB30000D0GEJZ1

CX2520DB32000D0GEJZ1

CX2520DB37400D0GEJZ1

CX2520DB38400D0GEJZ1

CX2520DB40000D0GEJZ1

CX2520DB48000D0GEJZ1

• Please contact us for other specifications.

Table1 Motional Series Resistance

Frequency Range

16000 to 19199kHz

19200 to 25999kHz

26000 to 29999kHz

30000 to 54000kHz

Motional Series Resistance

100Ω max.

80Ω max.

60Ω max.

50Ω max.

Table2 Level of Drive

Frequency Range

16000 to 54000kHz

Level of Drive

10μW (100μW max.)

Dimensions

4−R0.15

(Unit: mm)

Recommended Land Pattern

(Unit: mm)

2.0±0.1

1.2

0.5

1.2

0.20±0.05

0.3

1.0

2.5±0.1

0.50±0.05

0.115

4−0.15±0.1

HOT

4−0.56±0.1

HOT

4−0.66±0.1

CONNECTION

(TOP VIEW)

GND

1.0

1.7

1.3
