BNC Female to C Male Adapter
TECHNICAL DATA SHEET
BNC Female to C Male Adapter
Configuration
Connector 1
Connector 2
Connector Specification 2
Adapter Design
Body Style
BNC Female
C Male
MIL-STD-348A
Standard
Straight
PE9087
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 4
50
1.3:1
500
1,500
Mechanical Specifications
Temperature
Operating Range,deg C

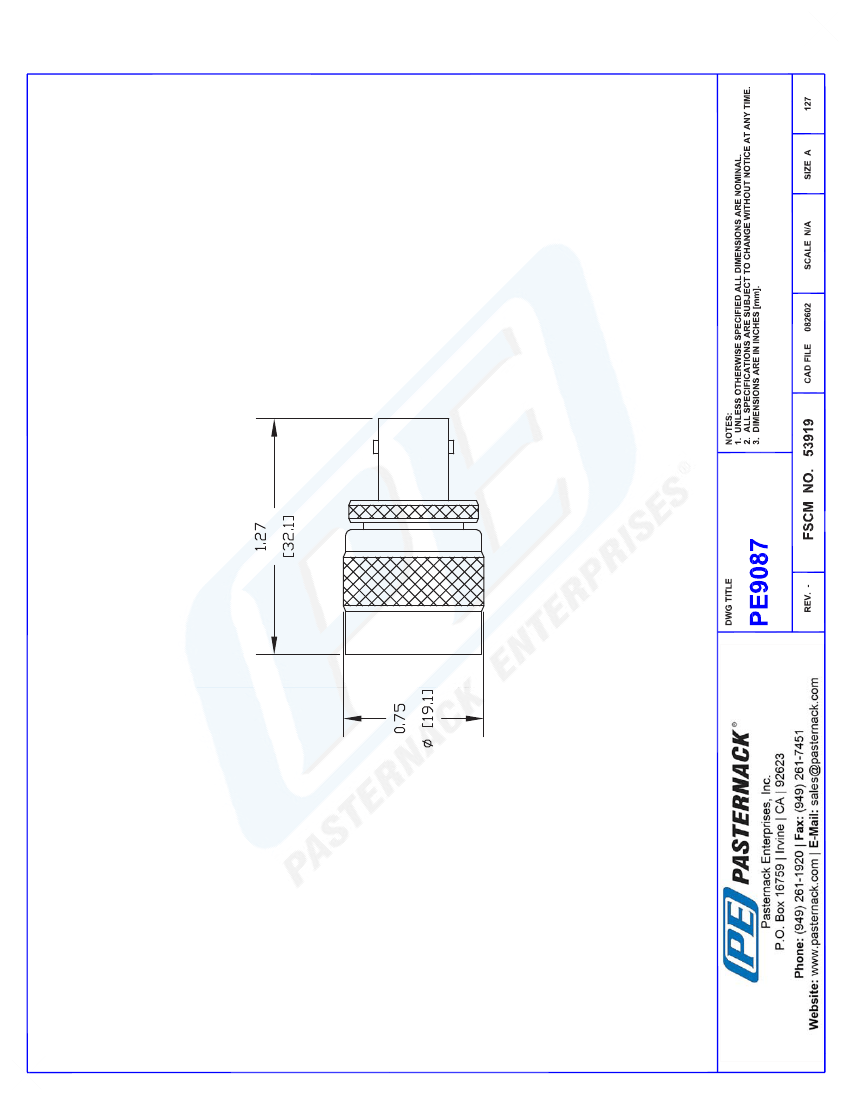

Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
1.266 [32.16]
0.748 [19]
Teflon
BNC Female
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
C Male
Brass, Gold
30µ in. minimum
100µ in. minimum
Brass, Nickel
100µ in. minimum
Dielectric Type
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Plating Specification
Body Material and Plating
Body Plating Specification
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
BNC Female to C Male Adapter PE9087
PE9087 REV
1
BNC Female to C Male Adapter
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE9087
URL:
http://www.pasternack.com/bnc-female-c-male-straight-adapter-pe9087-p.aspx
BNC Female to C Male Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.
PE9087 REV
2
