ZOWIE
Z2APK54MH
FEATURES
Halogen-free type
Lead free product, compliance to RoHS
Lead less chip form, no lead damage
Low power loss, High efficiency
High current capability, low VF
Plastic package has Underwriters Laboratory Flammability
Classification 94V-0
TM
* Patented ZPAK Package Technology
*
*
*
*
*
*
Schottky Barrier Diode
(40V / 5A)
OUTLINE DIMENSIONS
Case : Z2APAK
4.50 ± 0.1
2.20 ± 0.1
0.05
R0.05
Unit : mm
1.9
Typ.
0.95 ± 0.2
0.95 ± 0.2
0.95 ± 0.2
APPLICATION
*
*
*
*
*
Switching mode power supply applications
Portable equipment battery applications
High frequency rectification
DC / DC Converter
Telecommunication
+ 0.2
1.20
- 0.1
2.75 ± 0.2
MARKING
MECHANICAL DATA
Case :
Packed with FRP substrate and epoxy underfilled
Terminals :
Pure Tin plated (Lead-Free),
solderable per MIL-STD-750, Method 2026.
Z2A
54M
MOUNTING PAD LAYOUT
PACKING
*
3,000 pieces per 7" (178mm ± 2mm) reel
*
4 reels per box
*
6 boxes per carton
0.236(6.00)
REF.
0.079(2.00)
0.138(3.50)
0.059(1.50)
Unit : mm
Absolute Maximum Ratings (Ta = 25 C)
Rating
ITEM
Repetitive peak reverse voltage
Average forward current
Peak forward surge current
Operating junction temperature Range
Storage temperature Range
o
Symbol
V
RRM
I
F(AV)
I
FSM
T
j
T
STG
Conditions
Z2APK54MH
40
5
Unit
V
A
A
o
o
8.3ms single half sine-wave
110
-55 to +150
-55 to +150
C
C
Electrical characteristics (Ta = 25 C)
ITEM
Forward voltage (NOTE 1)
o
Symbol
V
F
I
F
= 5A
Conditions
Min.
-
Typ.
0.53
Max.
0.57
Unit
V
Repetitive peak reverse current
I
RRM
V
R
= Max. V
RRM
Ta = 25
o
C
Ta = 125
o
C
-
-
0.01
-
0.10
mA
15
Thermal resistance
R
th(JA)
R
th(JC)
Junction to ambient (NOTE 2)
Junction to case (NOTE 2)
-
-
122
10
-
-
o
C/W
C/W
o
NOTES : (1) Pulse test width PW=300usec , 1% duty cycle.
(2) Mounted on P.C.B. with 2.0 x 2.0mm copper pad areas.
REV. 0
2011/08
ZOWIE
Z2APK54MH
(40V / 5A)

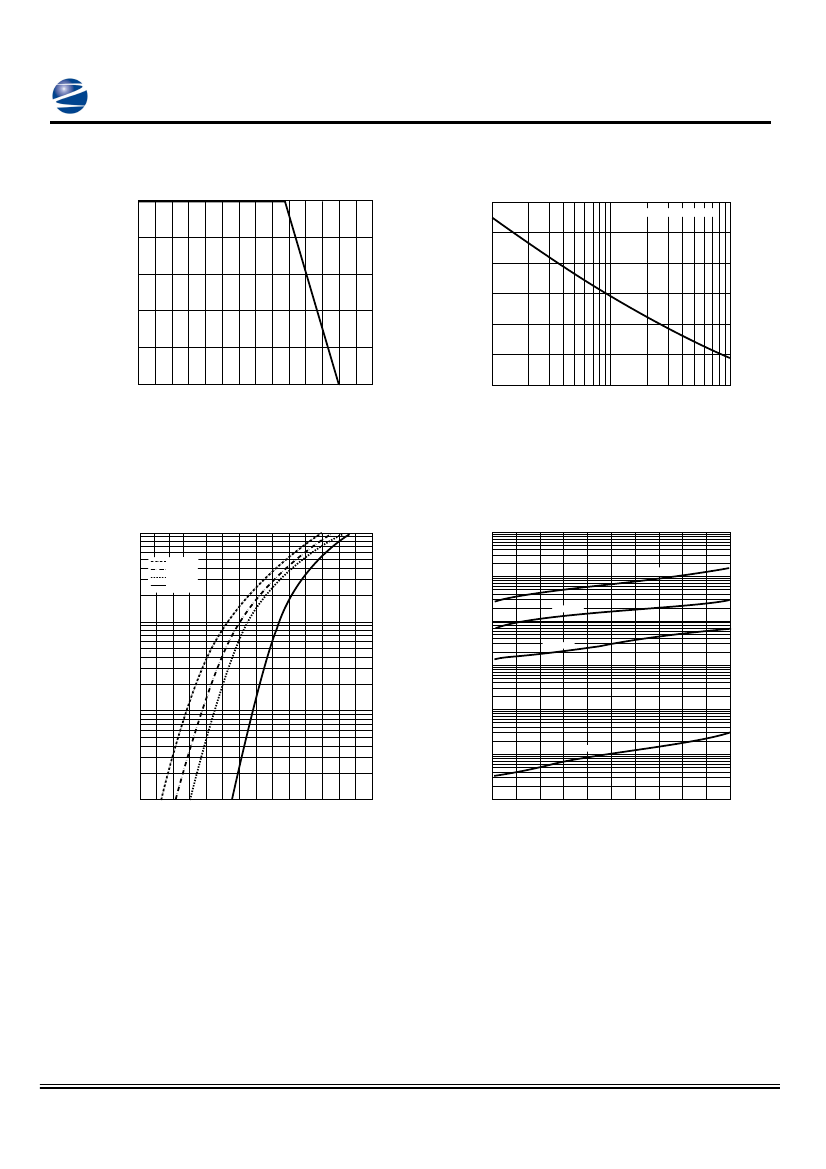

FIG.1 - FORWARD CURRENT DERATING CURVE
5
PEAK FORWARD SURGE CURRENT,
AMPERES
120
FIG.2 - MAXIMUM NON-REPETITIVE
PEAK FORWARD SURGE CURRENT
8.3ms SINGLE HALF SINE-WAVE
AVERAGE FORWARD RECTIFIED
CURRENT, AMPERES
4
100
80
3
60
2
40
1
20
0
0
25
50
75
100
o
0
125
150
175
1
10
NUMBER OF CYCLES AT 60Hz
100
CASE TEMPERATURE, C
FIG.3 - TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
10.00
T
J
= 150℃
T
J
= 125℃
T
J
= 100℃
T
J
= 25℃
FIG.4 - TYPICAL REVERSE CHARACTERISTICS
100
10
INSTANTANEOUS REVERSE LEAKAGE
CURRENT, MILLIAMPERES
o
T
J
= 150 C
o
IINSTANTANEOUS FORWARD CURRENT,
AMPERES
T
J
= 125 C
1.00
1
T
J
= 100 C
o
0.1
0.10
0.01
0.001
T
J
= 25 C
o
0.01
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.0001
0
20
40
60
80
100
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
PERCENT OF RATED PEAK REVERSE VOLTAGE,%
REV. 0
2011/08
