PA1030FH datasheet, PDF - EEWORLD Datasheet

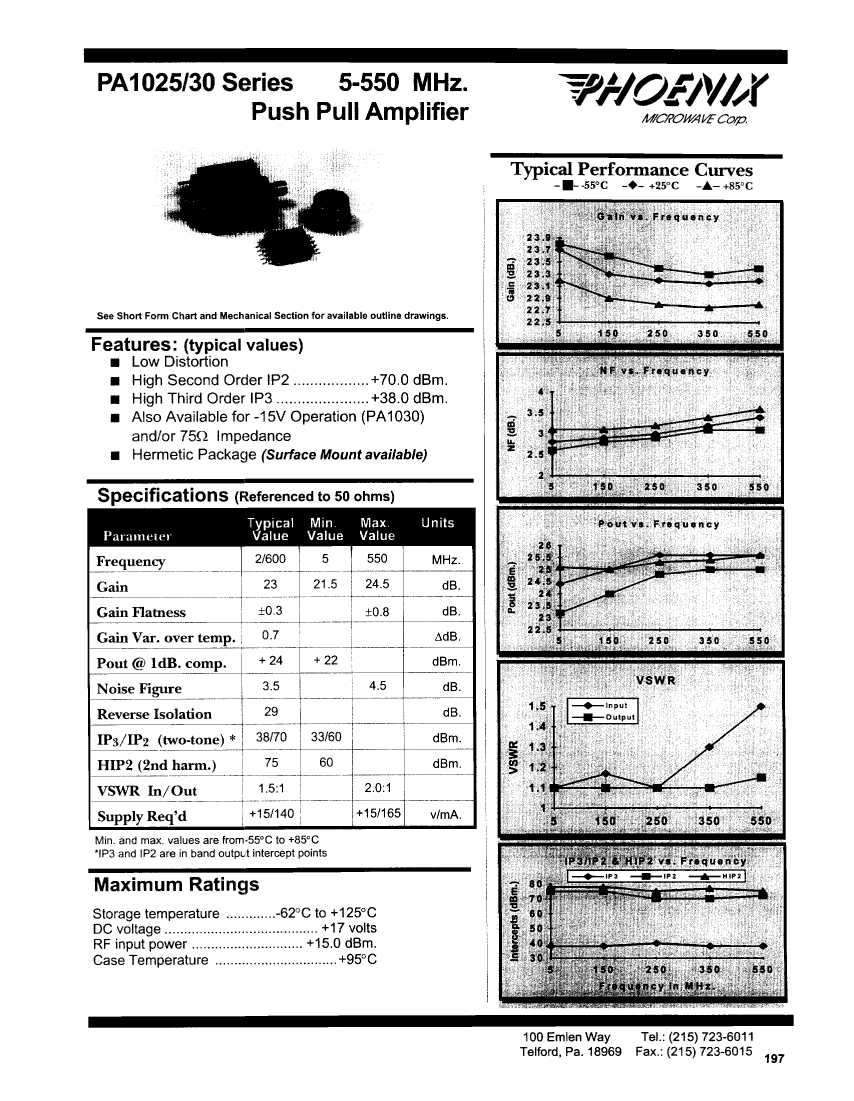

PA1030FH: DescriptionWide Band Medium Power Amplifier, 5MHz Min, 550MHz Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size310KB，1 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

PA1030FH Overview

Wide Band Medium Power Amplifier, 5MHz Min, 550MHz Max,

Parameter Name	Attribute value
Maker	MACOM
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	15 dBm
Maximum operating frequency	550 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

	PA1030FH	PA1025	PA1025CS	PA1025F	PA1025FH	PA1030CS	PA1030F	PA1030
Description	Wide Band Medium Power Amplifier, 5MHz Min, 550MHz Max,	Wide Band Medium Power Amplifier, 5MHz Min, 550MHz Max,	Wide Band Medium Power Amplifier, 5MHz Min, 550MHz Max,	Wide Band Medium Power Amplifier, 5MHz Min, 550MHz Max,	Wide Band Medium Power Amplifier, 5MHz Min, 550MHz Max,	Wide Band Medium Power Amplifier, 5MHz Min, 550MHz Max,	Wide Band Medium Power Amplifier, 5MHz Min, 550MHz Max,	Wide Band Medium Power Amplifier, 5MHz Min, 550MHz Max,
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
Maximum input power (CW)	15 dBm	15 dBm	15 dBm	15 dBm	15 dBm	15 dBm	15 dBm	15 dBm
Maximum operating frequency	550 MHz	550 MHz	550 MHz	550 MHz	550 MHz	550 MHz	550 MHz	550 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2	2	2	2	2	2	2
Maker	MACOM	MACOM	MACOM	-	-	MACOM	MACOM	MACOM
