PN6119 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> PN6119

PN6119: Description30 MHz - 250 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, SM-11, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size197KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

PN6119 Overview

30 MHz - 250 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, SM-11, 4 PIN

PN6119 Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	6.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	250 MHz
Minimum operating frequency	30 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2.3

Preview

Download Datasheet

View All

Cross Reference Guide

PN6119 / SPN6119*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

30.0 - 250.0 MHz

8.0 dB Typical

6.5 dB Min

3.0 dB Typical

3.5 dB Max

23.0 dBm Typical

20.0 dBm Min

36.0 dBm Typical

45.0 dBm Typical

1.7/2.3 Input Typ/Max

1.5/2.3 Output Typ/Max

-13.0 dB Typical

-12.0 dB Min

15.0 Volts

43.0 mA

-55.0 - 85.0 °C

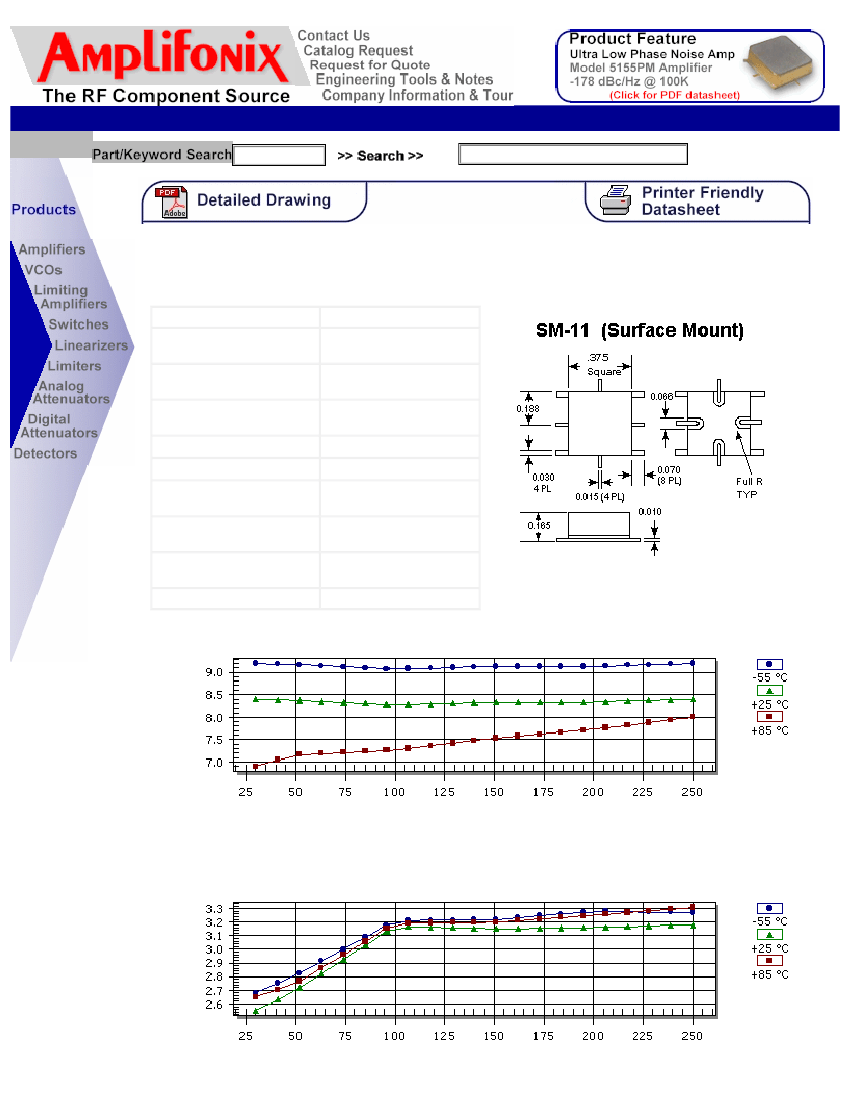

Package Drawing

Gain

Frequency (MHz)

Noise Figure

PN6119 Related Products

	PN6119	SPN6119
Description	30 MHz - 250 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, SM-11, 4 PIN	30 MHz - 250 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, SM-11, 4 PIN
Reach Compliance Code	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COMPONENT
Gain	6.5 dB	6.5 dB
Maximum input power (CW)	13 dBm	13 dBm
Maximum operating frequency	250 MHz	250 MHz
Minimum operating frequency	30 MHz	30 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2.3	2.3
