BTS115-E3045 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BTS115-E3045

BTS115-E3045: DescriptionPower Field-Effect Transistor, 12.5A I(D), 50V, 0.125ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size196KB，9 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BTS115-E3045 Overview

Power Field-Effect Transistor, 12.5A I(D), 50V, 0.125ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 3 PIN

BTS115-E3045 Parametric

Parameter Name	Attribute value
Maker	SIEMENS
Parts packaging code	TO-220AB
package instruction	SMALL OUTLINE, R-PSSO-G2
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOGIC LEVEL COMPATIBLE
Shell connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE AND TEMPERATURE SENSOR
Minimum drain-source breakdown voltage	50 V
Maximum drain current (ID)	12.5 A
Maximum drain-source on-resistance	0.125 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	180 pF
JESD-30 code	R-PSSO-G2
Number of components	1
Number of terminals	2
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Maximum power consumption environment	40 W
Maximum pulsed drain current (IDM)	50 A
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	185 ns
Maximum opening time (tons)	180 ns

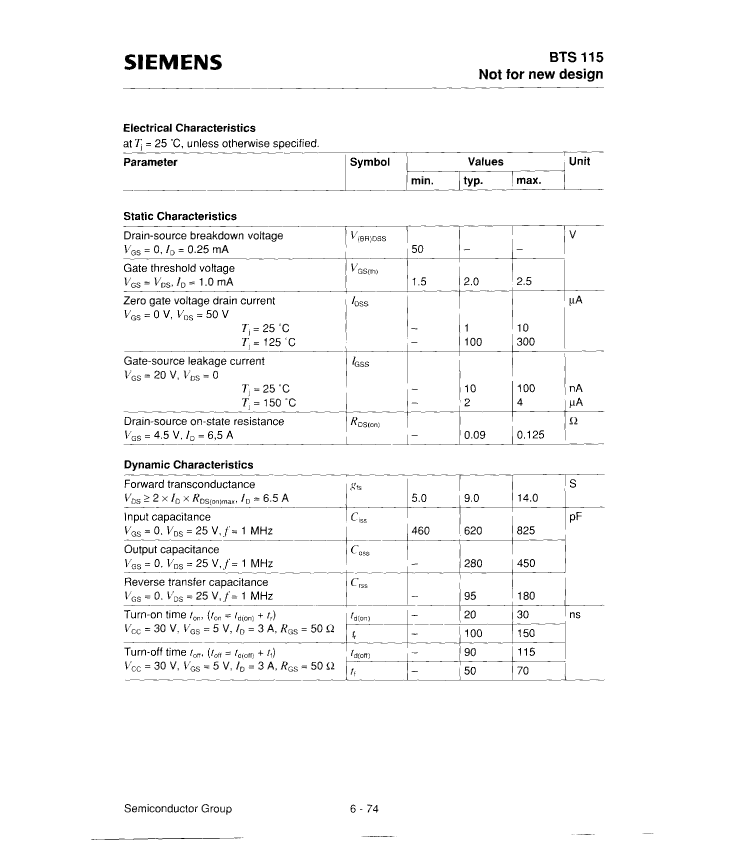

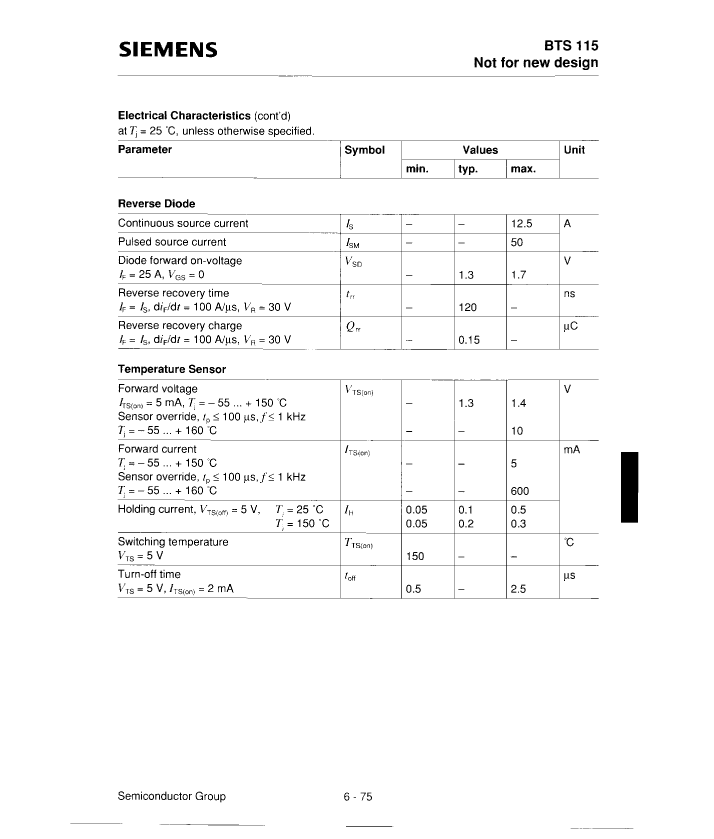

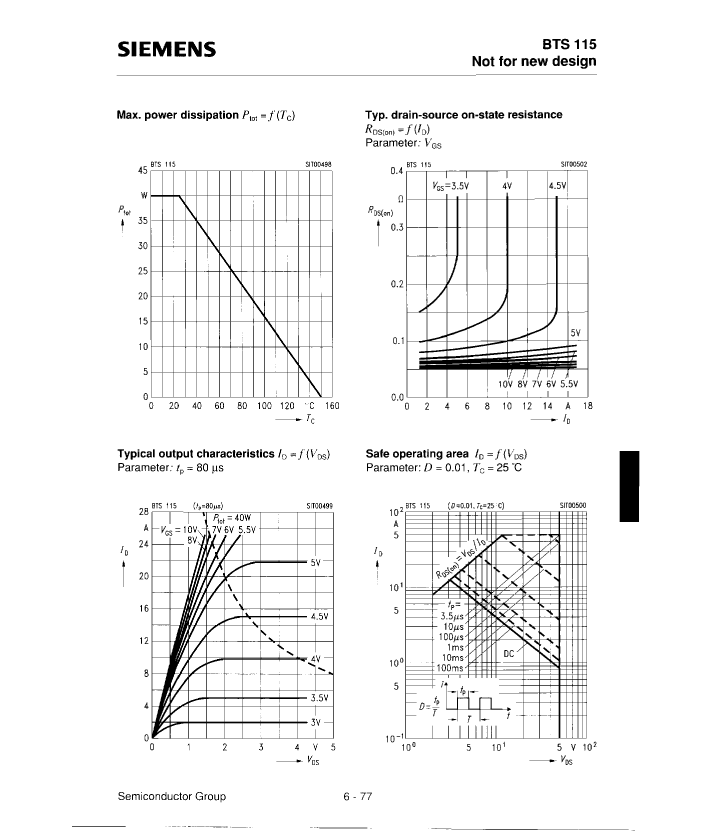

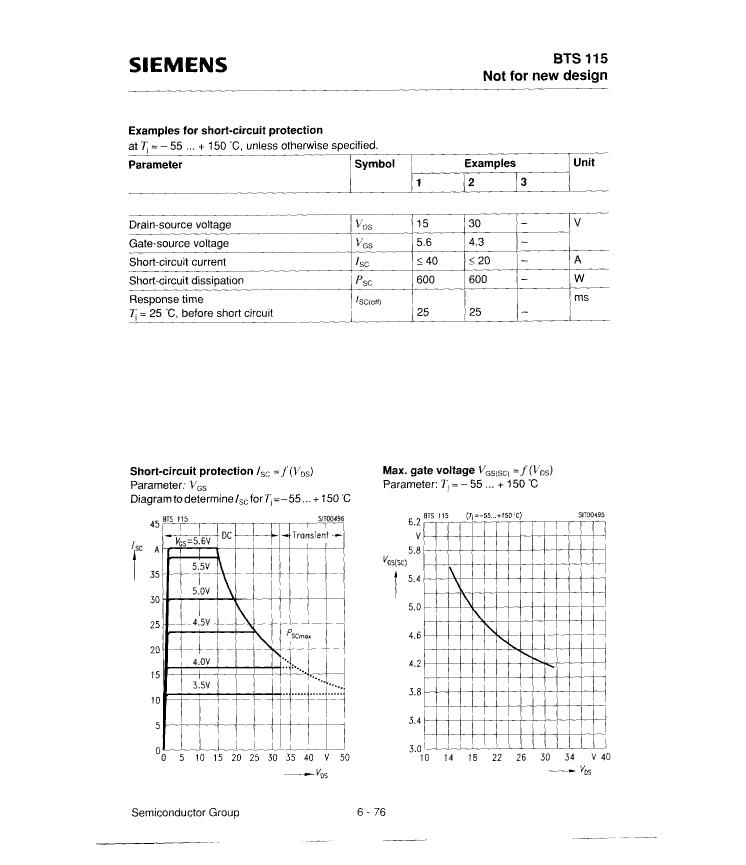

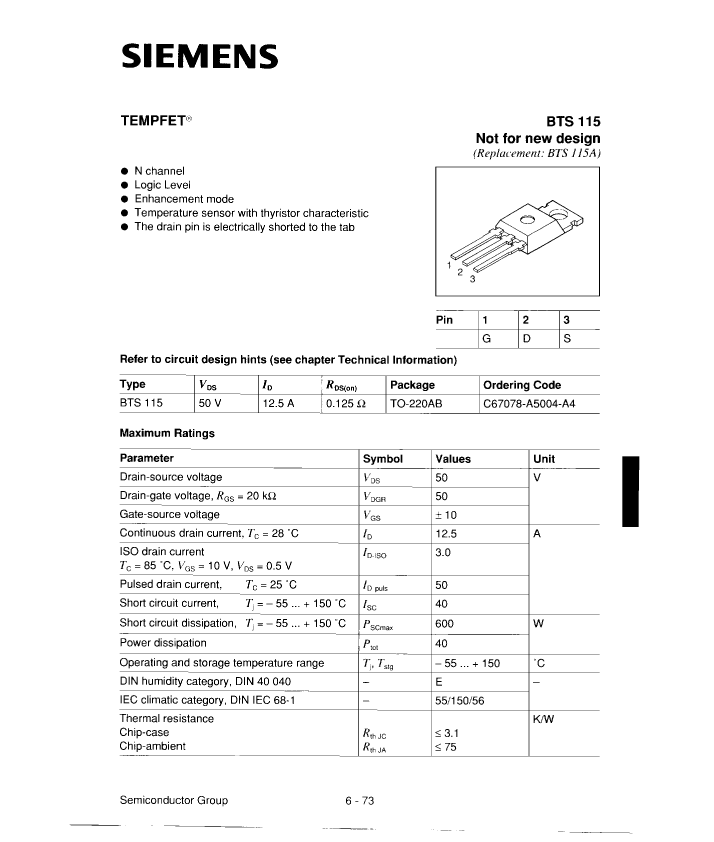

Preview

Download Datasheet

View All

BTS115-E3045 Related Products

	BTS115-E3045	BTS115-E3045A	BTS115-E3046
Description	Power Field-Effect Transistor, 12.5A I(D), 50V, 0.125ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 3 PIN	Power Field-Effect Transistor, 12.5A I(D), 50V, 0.125ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 3 PIN	Power Field-Effect Transistor, 12.5A I(D), 50V, 0.125ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 3 PIN
Maker	SIEMENS	SIEMENS	SIEMENS
Parts packaging code	TO-220AB	TO-220AB	TO-220AB
package instruction	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	IN-LINE, R-PSIP-T3
Contacts	3	3	3
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	LOGIC LEVEL COMPATIBLE	LOGIC LEVEL COMPATIBLE	LOGIC LEVEL COMPATIBLE
Shell connection	DRAIN	DRAIN	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE AND TEMPERATURE SENSOR	SINGLE WITH BUILT-IN DIODE AND TEMPERATURE SENSOR	SINGLE WITH BUILT-IN DIODE AND TEMPERATURE SENSOR
Minimum drain-source breakdown voltage	50 V	50 V	50 V
Maximum drain current (ID)	12.5 A	12.5 A	12.5 A
Maximum drain-source on-resistance	0.125 Ω	0.125 Ω	0.125 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
Maximum feedback capacitance (Crss)	180 pF	180 pF	180 pF
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSIP-T3
Number of components	1	1	1
Number of terminals	2	2	3
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL
Maximum power consumption environment	40 W	40 W	40 W
Maximum pulsed drain current (IDM)	50 A	50 A	50 A
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	NO
Terminal form	GULL WING	GULL WING	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
Maximum off time (toff)	185 ns	185 ns	185 ns
Maximum opening time (tons)	180 ns	180 ns	180 ns
Base Number Matches	-	1	1
