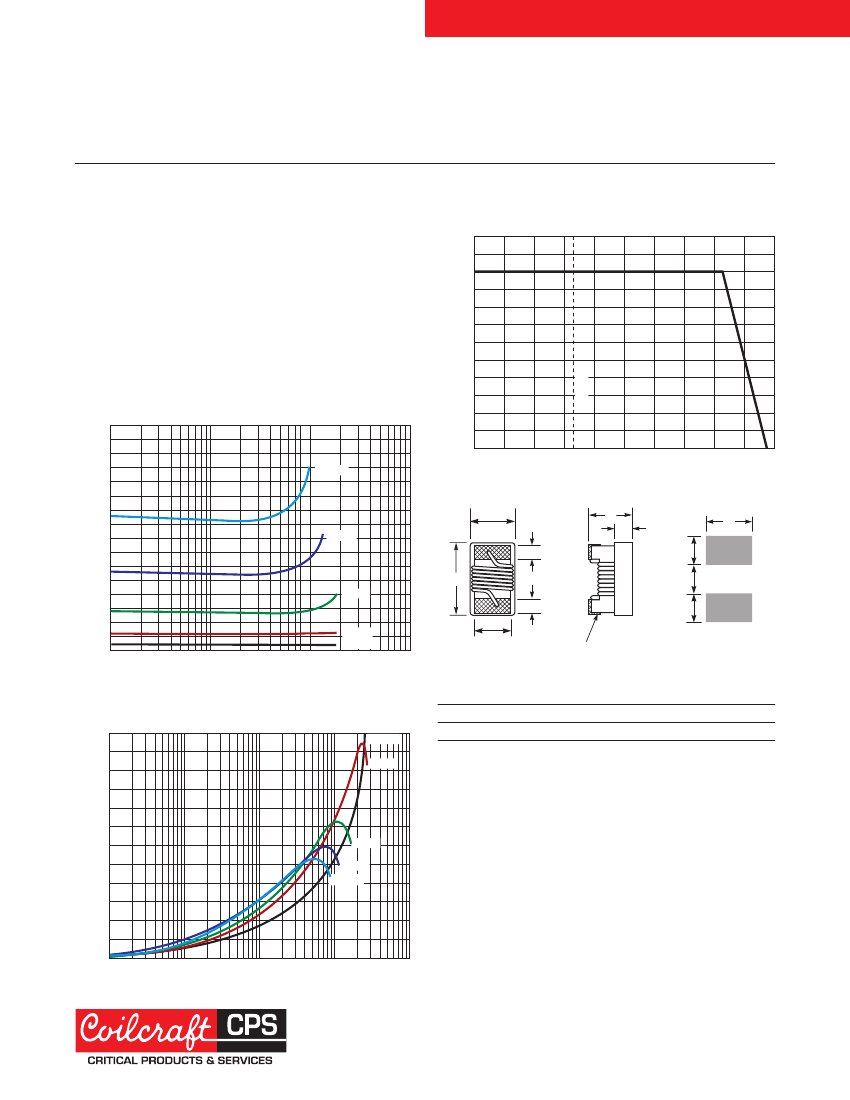

0603 CHIP INDUCTORS
OutgassingCompliantChipInductors
AE312RAA
Small size, exceptional Q and high SRFs make these
inductors ideal for high frequency applications where
size is at a premium. They also have excellent DCR and
current carrying characteristics.
This robust version of Coilcraft’s standard 0603CS series
features high temperature materials that pass NASA low
outgassing specifications and allows operation in ambi-
ent temperatures up to 155°C. The leach-resistant base
metalization with tin-lead (Sn-Pb) terminations ensures
the best possible board adhesion.
Current Derating
120
110
100
90
80
70
60
50
30
20
10
0
-40
-20
0
20
40
60
80
100
120
140 160
40
Percent of rated
I
rms
Typical L vs Frequency
200
175
120 nH
150
Ambient temperature (°C)
Inductance (nH)
125
100
75
68 nH
25°C
B
overall
C
D
I
H
F
A
50
25
0
10
100
1000
G
F
J
I
33 nH
12 nH
3.9 nH
10000
E
terminal
Terminal wraparound:
approx 0.007/0,18 both ends
Suggested
Land Pattern
Frequency (MHz)
Typical Q vs Frequency
120
110
100
90
80
A
max
0.071
3.9 nH
12 nH
B
max
0.044
1,12
C
max
1,02
D
ref
0,38
E
0,76
F
0,33
G
0,86
H
1,02
I
0,64
J
0,64
0.040 0.015 0.030 0.013 0.034 0.040 0.025 0.025
1,80
Note: Dimensions are before solder application. For maximum overall
dimensions including solder, add 0.0025 in / 0,064 mm to
B
and
0.006 in / 0,15 mm to
A
and
C.
Q Factor
70
60
50
40
30
20
10
0
1
10
100
1000
10000
33 nH
68 nH
120 nH
Frequency (MHz)
Core material
Ceramic
Terminations
Tin-lead (63/37) over silver-platinum-glass frit
Ambient temperature
–55°C to +125°C with
Imax
current, +125°C
to +155°C with derated current
Storage temperature
Component: –55°C to +155°C.
Packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +155 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Enhanced crush-resistant packaging
2000 per 7″ reel
Paper tape: 8 mm wide, 1.0 mm thick, 4 mm pocket spacing
Document AE195-1 Revised 11/06/12
®
© Coilcraft, Inc. 2013
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
0603 CHIP INDUCTORS
AE312RAA Series (0603)
Part number
1
AE312RAA1N6JSZ
AE312RAA1N8JSZ
AE312RAA3N3_SZ
AE312RAA3N6_SZ
AE312RAA3N9_SZ
AE312RAA4N3_SZ
AE312RAA4N7_SZ
AE312RAA5N1_SZ
AE312RAA5N6_SZ
AE312RAA6N8_SZ
AE312RAA7N5_SZ
AE312RAA8N2_SZ
AE312RAA8N7_SZ
AE312RAA9N5_SZ
AE312RAA10N_SZ
AE312RAA11N_SZ
AE312RAA12N_SZ
AE312RAA15N_SZ
AE312RAA16N_SZ
AE312RAA18N_SZ
AE312RAA22N_SZ
AE312RAA23N_SZ
AE312RAA24N_SZ
AE312RAA27N_SZ
AE312RAA30N_SZ
AE312RAA33N_SZ
AE312RAA36N_SZ
AE312RAA39N_SZ
AE312RAA43N_SZ
AE312RAA47N_SZ
AE312RAA51N_SZ
AE312RAA56N_SZ
AE312RAA68N_SZ
AE312RAA72N_SZ
AE312RAA82N_SZ
AE312RAAR10_SZ
AE312RAAR11_SZ
AE312RAAR12_SZ
AE312RAAR15_SZ
AE312RAAR18_SZ
Inductance
2
(nH)
1.6 @ 250 MHz
1.8 @ 250 MHz
3.3 @ 250 MHz
3.6 @ 250 MHz
3.9 @ 250 MHz
4.3 @ 250 MHz
4.7 @ 250 MHz
5.1 @ 250 MHz
5.6 @ 250 MHz
6.8 @ 250 MHz
7.5 @ 250 MHz
8.2 @ 250 MHz
8.7 @ 250 MHz
9.5 @ 250 MHz
10 @ 250 MHz
11 @ 250 MHz
12 @ 250 MHz
15 @ 250 MHz
16 @ 250 MHz
18 @ 250 MHz
22 @ 250 MHz
23 @ 250 MHz
24 @ 250 MHz
27 @ 250 MHz
30 @ 250 MHz
33 @ 250 MHz
36 @ 250 MHz
39 @ 250 MHz
43 @ 250 MHz
47 @ 200 MHz
51 @ 200 MHz
56 @ 200 MHz
68 @ 200 MHz
72 @ 200 MHz
82 @ 150 MHz
100 @ 150 MHz
110 @ 150 MHz
120 @ 150 MHz
150 @ 150 MHz
180 @ 100 MHz
Percent
tolerance
5
5
5,2
5,2
5,2
5,2
5,2
5,2
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
5,2,1
Q
min
3
26
21
35
18
20
29
18
20
25
28
23
26
27
22
28
26
29
28
29
29
31
39
36
32
32
33
32
36
28
35
38
37
35
35
29
28
30
28
28
25
900 MHz
L typ Q typ
1.67
1.83
3.31
3.72
3.95
4.32
4.72
4.93
5.77
6.75
7.70
8.25
8.86
9.70
10.0
11.0
12.3
15.4
16.2
18.7
22.8
24.1
24.5
29.2
31.4
36.0
39.4
42.7
47.0
52.2
55.5
62.5
80.5
82.0
96.2
124
138
166
250
305
49
35
75
53
49
50
47
47
63
60
60
82
62
59
66
53
72
64
55
70
73
71
45
74
47
67
47
60
44
62
69
56
54
53
54
49
43
39
25
22
1.7 GHz
L typ Q typ
1.65
1.86
3.38
3.71
3.96
4.33
4.75
4.95
6.05
7.10
7.82
8.37
9.32
9.92
10.6
11.5
13.5
16.8
17.3
21.4
26.1
28.0
28.7
34.6
39.9
49.5
52.7
60.2
64.9
77.2
82.2
97
168
135
177
—
—
—
—
—
63
50
88
65
67
70
57
56
80
81
65
87
58
61
83
56
83
89
52
69
71
67
39
65
28
42
24
40
21
35
34
26
21
20
21
—
—
—
—
—
SRF
min
4
(MHz)
>5000
>5000
>5000
>5000
>5000
>5000
>5000
>5000
4760
4660
4320
3880
3680
4100
3860
3640
3220
3020
3040
2680
2380
2380
2380
2380
2240
1900
1960
1740
1580
1560
1560
1480
1380
1360
1300
1140
1080
1020
900
820
DCR
max
5
(Ohms)
0.022
0.045
0.045
0.063
0.080
0.063
0.116
0.140
0.075
0.110
0.106
0.115
0.109
0.135
0.130
0.130
0.130
0.170
0.170
0.170
0.190
0.190
0.190
0.220
0.220
0.220
0.250
0.250
0.280
0.280
0.270
0.310
0.340
0.490
0.540
0.580
0.610
0.650
0.915
1.25
Imax
(mA)
700
700
700
700
700
700
605
510
700
700
700
700
700
700
700
700
620
600
600
600
560
560
560
530
500
500
460
460
440
440
420
420
410
340
340
310
310
270
250
210
1. When ordering, please specify
tolerance
and
testing
codes:
AE312RAAR39JSZ
Tolerance: F
= 1%
G
= 2%
J
= 5%
Testing:
Z
= COTS
H
= Screening per Coilcraft CP-SA-10001
N
= Screening per Coilcraft CP-SA-10003
2. Inductance measured using a Coilcraft SMD-A test fixture and Coilcraft-provided correlation pieces with an Agilent/HP 4286A impedance analyzer or
equivalent.
3. Q measured at the same frequency as inductance using an Agilent/HP 4291A with an Agilent/HP 16197A test fixture or equivalents.
4. SRF measured using an Agilent/HP 8753ES network analyzer and a Coilcraft CCF1232 test fixture.
5. DCR measured on a Keithley 580 micro-ohmmeter and a Coilcraft CCF1010 test fixture.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
®
Document AE195-2 Revised 11/06/12
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2013
