1246 POWER INDUCTORS

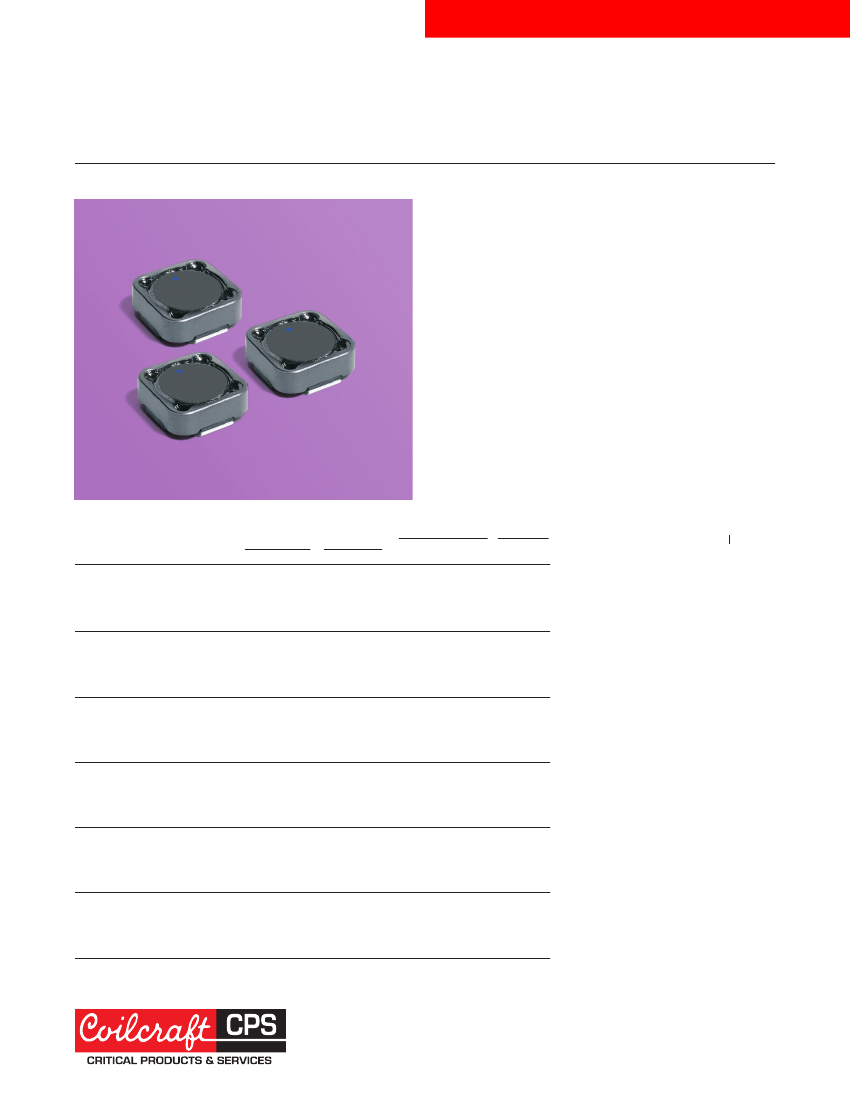

Outgassing Compliant Power Inductors
AE566PNB
■
High current, low DCR shielded power inductors
■
Passes NASA low outgassing specifications
■
High temperature materials allow operation in ambient
temperatures up to 155°C.
■
Tin-lead (Sn-Pb) terminations for the best possible board
adhesion
Core material
Ferrite
Terminations
Tin-lead (63/37) over tin over nickel over phos bronze.
Weight:
2.3 g – 2.5 g
Ambient temperature
–55°C to +105°C with
Irms
current, +105°C
to +155°C with derated current
Storage temperature
Component: –55°C to +155°C.
Packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Enhanced crush-resistant packaging
200/7″ reel
Plastic tape: 24 mm wide, 0.35 mm thick, 16 mm pocket spacing,
4.7mm pocket depth
DCR
3
Inductance
2
(mOhms)
(µH)
typ
max
1.0 ±20%
5.6
6.3
1.5 ±20%
8.7
9.7
2.7 ±20% 10.3 11.5
3.3 ±20% 15.1 16.8
4.7 ±20% 19.1 21.3
5.6 ±20% 22.1 24.6
6.8 ±20% 24.9 27.7
8.2 ±20% 27.4 30.5
10 ±20%
36.8 40.9
12 ±20%
38.9 43.3
15 ±20%
48.6 54.1
18 ±20%
51.0 56.7
22 ±20%
60.3 67.0
27 ±20%
67.5 75.0
33 ±20%
81.7 90.8
39 ±20%
95.2 105.8
47 ±20%
120.6 134.0
56 ±20%
133.8 148.7
68 ±20%
167.3 185.9
82 ±20%
188.5 209.5
100 ±20%
216.8 240.9
120 ±10%
287.2 319.2
150 ±10%
326.7 363.0
180 ±10%
379.5 421.7
220 ±10%
488.2 542.5
270 ±10%
560.1 622.4
330 ±10%
731.4 812.7
390 ±10%
813.7 904.2
470 ±10%
935.1 1039
560 ±10% 1193 1326
680 ±10% 1370 1523
820 ±10% 1590 1767
1000 ±10% 2090 2323
®
Part number
1
AE566PNB102MSZ
AE566PNB152MSZ
AE566PNB272MSZ
AE566PNB332MSZ
AE566PNB472MSZ
AE566PNB562MSZ
AE566PNB682MSZ
AE566PNB822MSZ
AE566PNB103MSZ
AE566PNB123MSZ
AE566PNB153MSZ
AE566PNB183MSZ
AE566PNB223MSZ
AE566PNB273MSZ
AE566PNB333MSZ
AE566PNB393MSZ
AE566PNB473MSZ
AE566PNB563MSZ
AE566PNB683MSZ
AE566PNB823MSZ
AE566PNB104MSZ
AE566PNB124KSZ
AE566PNB154KSZ
AE566PNB184KSZ
AE566PNB224KSZ
AE566PNB274KSZ
AE566PNB334KSZ
AE566PNB394KSZ
AE566PNB474KSZ
AE566PNB564KSZ
AE566PNB684KSZ
AE566PNB824KSZ
AE566PNB105KSZ
SRF
4
(MHz)
min typ
70.0 100
60.0 85.0
49.0 70.0
46.0 65.0
30.0 42.0
26.0 37.0
23.0 33.0
22.0 31.0
19.0 27.0
17.0 24.0
15.0 22.0
13.0 19.0
12.6 18.0
11.2 16.0
10.5 15.0
9.3 13.3
8.4 12.0
7.4 10.6
6.8
9.7
6.2
8.8
5.6
8.0
5.0
7.2
4.6
6.6
4.1
5.9
3.7
5.3
3.3
4.7
2.9
4.1
2.7
3.8
2.5
3.5
2.1
3.0
2.0
2.8
1.8
2.6
1.7
2.4
Isat
(A)
5
Irms
(A)
6
10% 20% 30% 20°C 40°C
drop drop drop rise rise
18.14 20.64 22.24 6.00 8.00
14.06 15.90 17.08 5.80 7.80
11.66 13.16 14.16 5.00 6.80
9.74 11.08 11.98 4.50 6.30
8.62 9.70 10.42 4.40 6.00
7.62 8.74 9.44 3.95 5.75
7.38 8.36 9.00 3.70 5.20
6.84 7.70 8.32 3.35 4.67
5.88 6.66 7.18 2.85 3.90
5.34 6.04 6.52 2.69 3.65
4.68 5.36 5.78 2.50 3.40
4.32 4.92 5.32 2.41 3.19
3.84 4.34 4.75 2.30 3.14
3.54 4.02 4.32 2.06 2.86
3.24 3.66 3.96 1.90 2.60
3.04 3.46 3.72 1.73 2.39
2.70 3.08 3.34 1.50 2.10
2.46 2.80 3.02 1.44 2.01
2.26 2.54 2.74 1.30 1.80
1.98 2.26 2.46 1.24 1.72
1.84 2.08 2.24 1.19 1.65
1.62 1.86 2.04 1.03 1.42
1.48 1.70 1.82 0.95 1.30
1.36 1.56 1.68 0.89 1.21
1.22 1.38 1.50 0.76 1.00
1.12 1.26 1.36 0.72 0.95
1.00 1.10 1.20 0.65 0.87
0.946 1.00 1.10 0.59 0.79
0.864 0.978 1.00 0.56 0.76
0.776 0.884 0.956 0.50 0.67
0.720 0.818 0.882 0.46 0.62
0.634 0.728 0.792 0.43 0.58
0.594 0.676 0.728 0.36 0.50
1. When ordering, please specify
testing
code:
AE566PNB105KSZ
Testing: Z
= COTS
H
= Screening per Coilcraft
CP-SA-10001
N
= Screening per Coilcraft
CP-SA-10004
2. Inductance measured at 100 kHz, 0.1
Vrms, 0 Adc using a Coilcraft SMD-A
fixture in an Agilent/HP 4263B LCR meter
or equivalent.
3. DCR measured on a micro-ohmmeter and
a Coilcraft CCF858 test fixture.
4. SRF measured using an Agilent/HP 8753D
network analyzer.
5. DC current at which the inductance drops
the specified amount from its value without
current.
6. Current that causes the specified tempera-
ture rise from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount
Components” before soldering.
Document AE540-1 Revised 12/05/12
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2012
